Home >> Toyota >> 2009 >> Venza 2.7 E, AWD >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Wheel >> Components

Steering Wheel: Components

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 5)
G06026516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

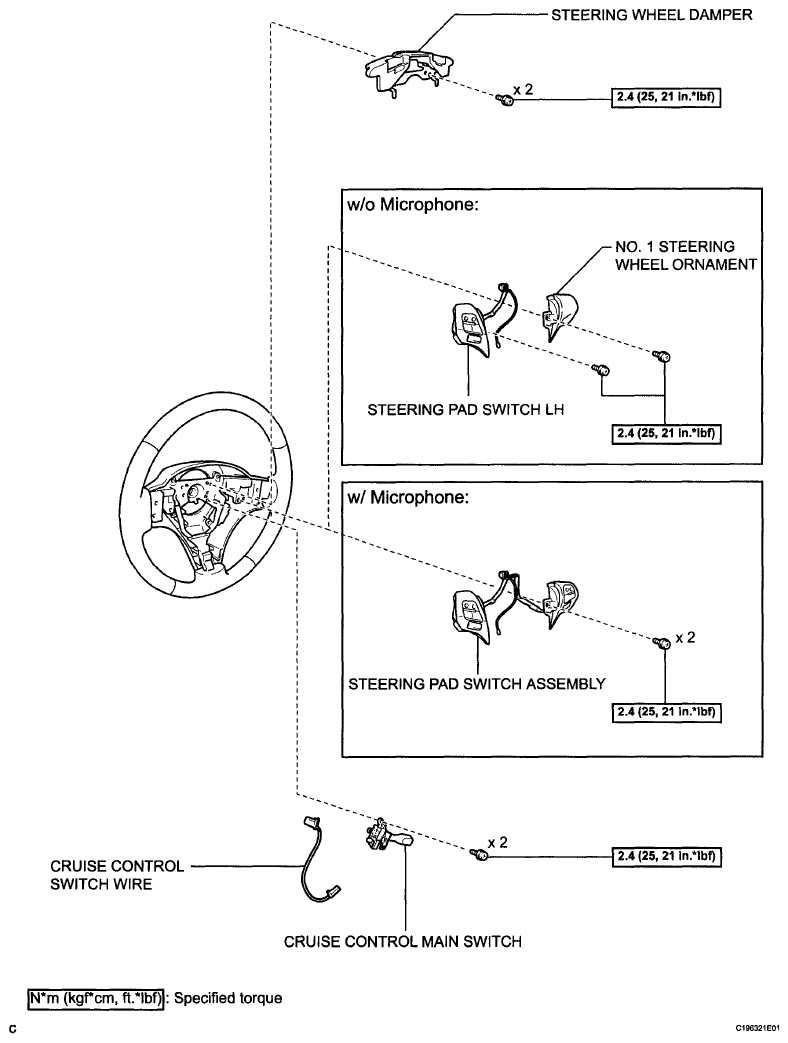

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 3)
G06026574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

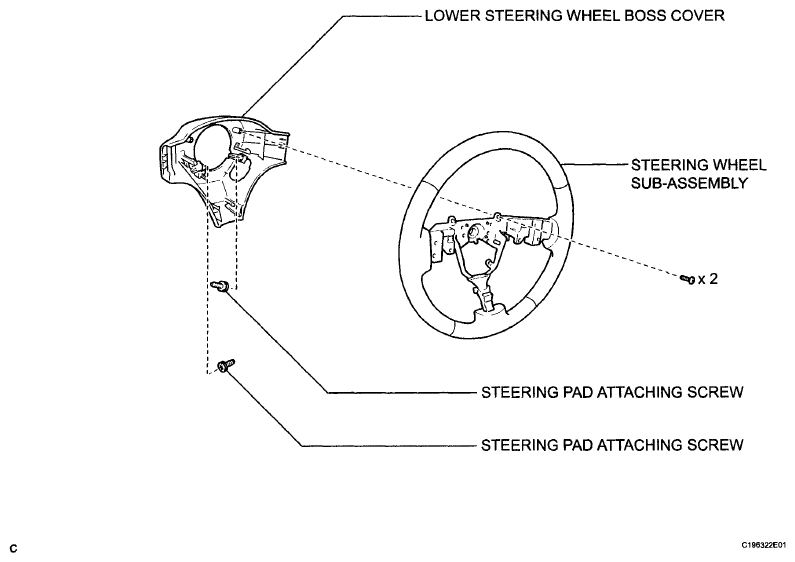

Fig 3: Identifying Steering Wheel Components (3 Of 3)
G06026575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
