Steering Column Assembly: Disassembly

NOTE: When using a vise, do not over tighten it.
  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY (w/ Smart Key System)
    1. Secure the steering column assembly in a vise.
    2. Using a center punch, mark the center of the tapered-head bolt.
    3. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.
    4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering lock actuator assembly from the steering column assembly.
  2. REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY (w/o Smart Key System)
    1. Secure the steering column assembly in a vise.
    2. Using a center punch, mark the center of the tapered-head bolt.
    3. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.
      Fig 1: Removing Steering Lock Actuator Assembly From Steering Column Assembly
      G06026535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screw extractor, remove the tapered-head bolt, and then remove the steering column upper with switch bracket assembly from the steering column assembly.
    Fig 2: Removing Steering Column Upper With Switch Bracket Assembly From Steering Column Assembly
    G05389781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (w/o Smart Key System)
    1. Remove the solenoid wire connector from the ignition or starter switch assembly.
      Fig 3: Identifying Ignition Or Starter Switch Assembly Solenoid Wire Connector
      G06026537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and the ignition or starter switch assembly from the steering column upper bracket.
    Fig 4: Identifying Ignition Or Starter Switch Assembly Screws
    G06010362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE KEY INTER LOCK SOLENOID (w/o Smart Key System)
    1. Remove the 2 screws and the key interlock solenoid from the steering column upper bracket.
      Fig 5: Identifying Key Interlock Solenoid Screws
      G06010365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the solenoid wire connector from the key interlock solenoid.
    Fig 6: Locating Key Interlock Solenoid Wire Connector
    G05389785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SOLENOID WIRE (w/o Smart Key System)
    1. Remove the solenoid wire from the steering column upper bracket.
  6. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Smart Key System)
    1. Turn the ignition switch lock cylinder assembly to the ACC position.
      Fig 7: Identifying Solenoid Wire
      G06010367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

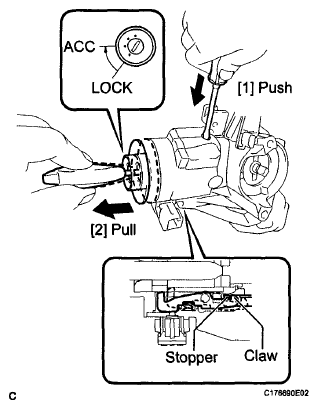

    2. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.
      NOTE: Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly. Failure to do so will affect later work operations.
      Fig 8: Inserting Screwdriver Into Hole Of Steering Column Upper With Switch Bracket Assembly
      G06026542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

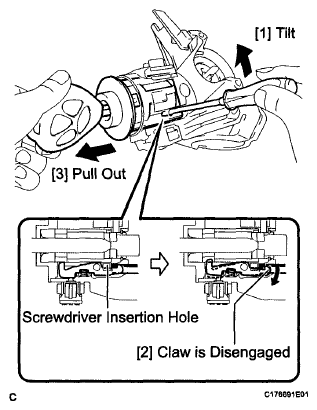

    3. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Tilt the screwdriver as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.
    Fig 9: Inserting Screwdriver Into Hole Of Steering Column Upper With Switch Bracket Assembly
    G06026543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UNLOCK WARNING SWITCH ASSEMBLY (w/o Smart Key System)
    1. Remove the unlock warning switch assembly by pushing up the center part and releasing the 2 claws.

      Text in Illustration

      ILLUSTRATION REFERENCE

      *1 Center Part
      Fig 10: Identifying Unlock Warning Switch Assembly Claws
      G06026544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
