Engine Control System (1AR-FE) - System Testing, Removal & Installation
>>
Knock Sensor
>>
Components
Knock Sensor: Components

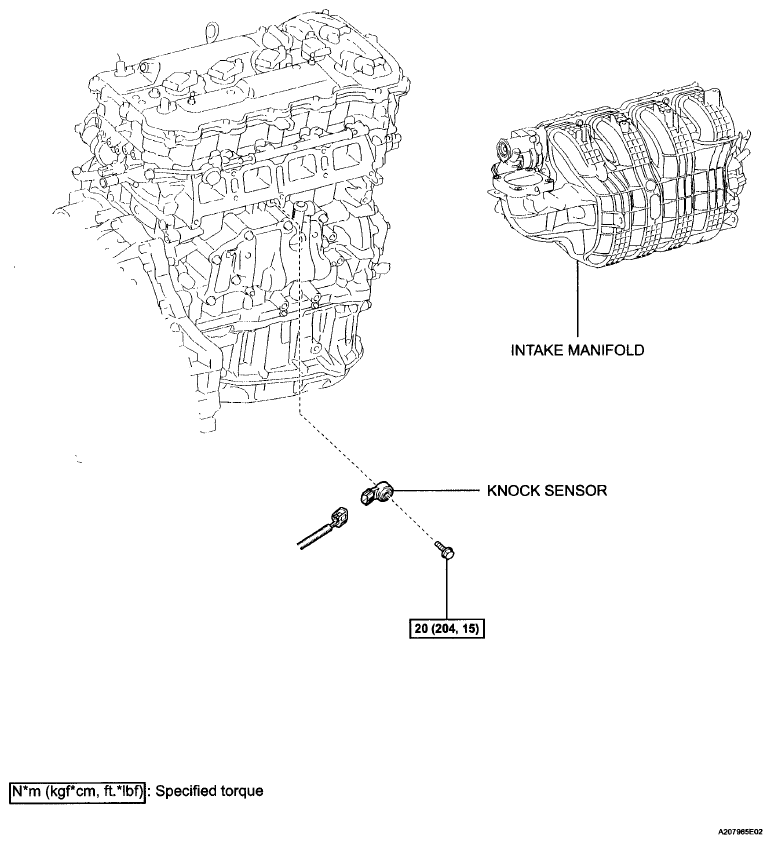

Fig 1: Lnock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
