Power Management Control Ecu: Installation

  1. INSTALL POWER MANAGEMENT CONTROL ECU
    1. Install the power management control ECU with the 2 nuts.
    2. Connect the 2 connectors.

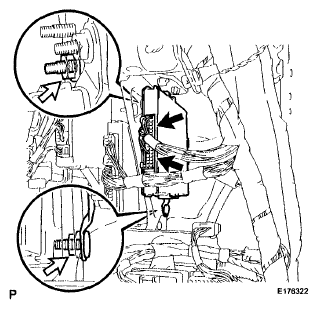

      3. Fig 1: Locating Power Management Control ECU Connector
      G06027345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH  (See INSTALLATION )
  5. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
