Main Body Ecu: Installation

1. Install the 5 relays.

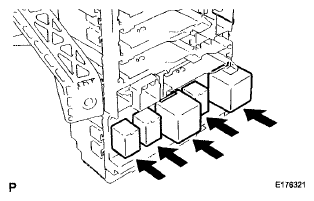

   Fig 1: Installing Relays

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 connectors.
3. Connect the connector < A> as shown in the illustration.
   NOTE: Be sure to engage each connector securely.

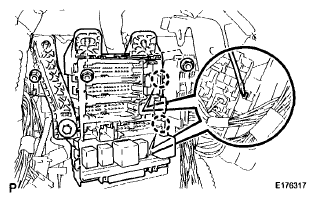

   Fig 2: Locating Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws.
5. Install the 3 nuts and install the main body ECU (driver side junction block assembly).

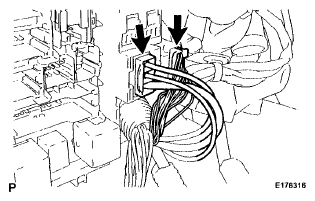

   Fig 3: Engaging Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 2 connectors.
   NOTE: Be sure to engage the connector securely.

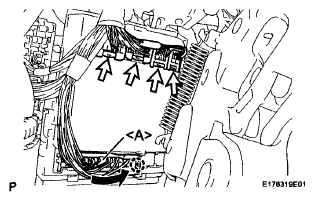

   Fig 4: Locating Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the connector < A> as shown in the illustration.
   NOTE: Be sure to engage the connector securely.
8. Connect the connector.
   NOTE: Be sure to engage each connector securely.

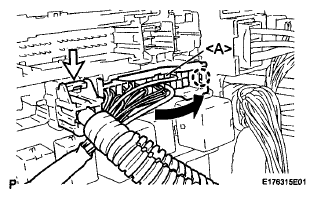

   Fig 5: Connecting Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the 3 connectors as shown in the illustration.
   NOTE: Be sure to engage each connector securely.

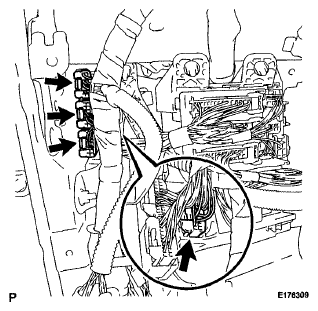

   Fig 6: Connecting Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Engage the 2 claws to connect the connector < A> as shown in the illustration.
    NOTE: Be sure to engage the connector securely.
11. Connect the 3 connectors.
    NOTE: Be sure to engage each connector securely.

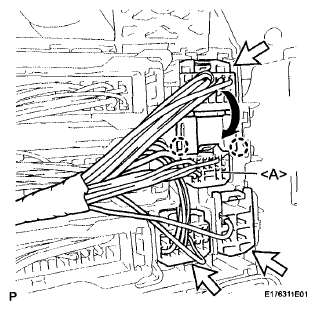

    Fig 7: Identifying Connector And Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. Connect the 4 connectors.
    NOTE: Be sure to engage each connector securely.

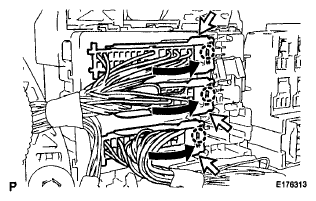

    Fig 8: Identifying Main Body ECU Connectors (Driver Side Junction Block Assembly)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedure from Install Upper Instrument Panel Sub-assembly (See INSTALLATION ).
