Integration Relay: Removal

  1. REMOVE POWER DISTRIBUTION
    1. Remove the bolt.
    2. Disengage the 2 claws and disconnect the power distribution from the relay box as shown in the illustration.

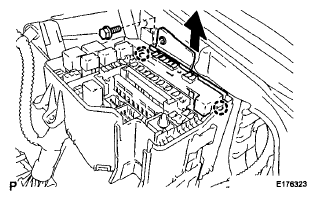

      Fig 1: Removing Power Distribution
      G06027348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors and remove the power distribution.

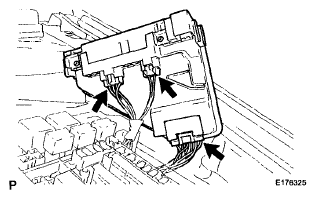

    Fig 2: Locating Power Distribution Connector
    G06027349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
