Integration Relay: Installation

  1. INSTALL POWER DISTRIBUTION
  1. Connect the 3 connectors.
    Fig 1: Locating Power Distribution Connector
    G06027349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Engage the 2 claws to temporarily install the power distribution as shown in the illustration.
  3. Install the power distribution with the bolt.

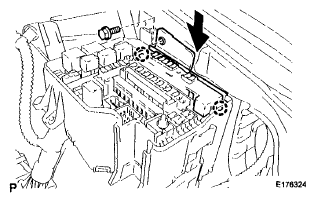

Fig 2: Identifying Power Distribution With Bolt
G06027368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
