Stop Light: Notes

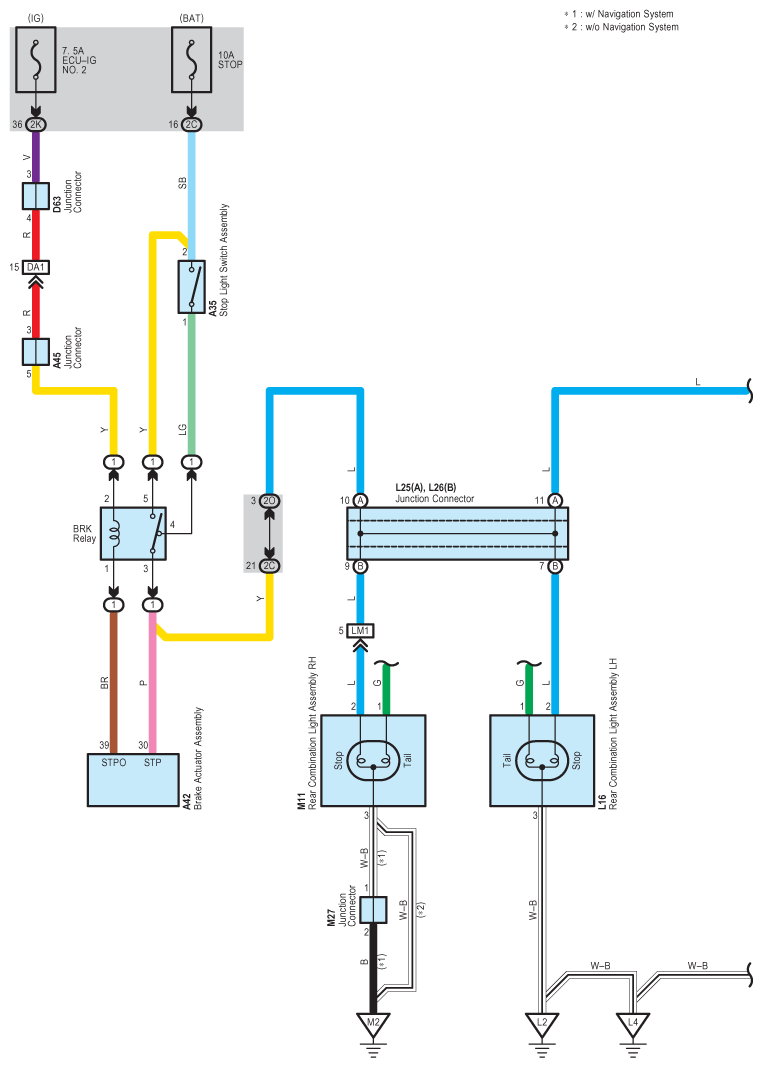

Fig 1: Stop Light - Circuit Diagram (1 Of 2)
G07615592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

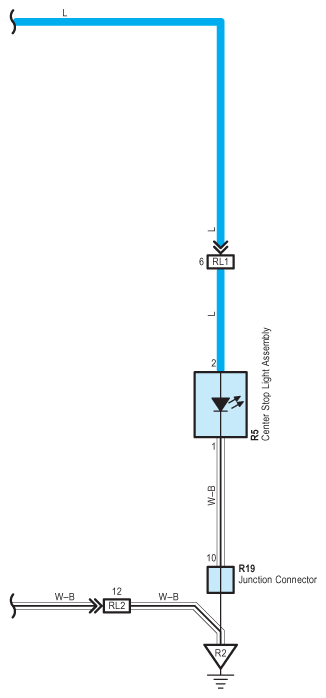

Fig 2: Stop Light - Circuit Diagram (2 Of 2)
G07615593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
