Ignition (2GR-FE): Notes

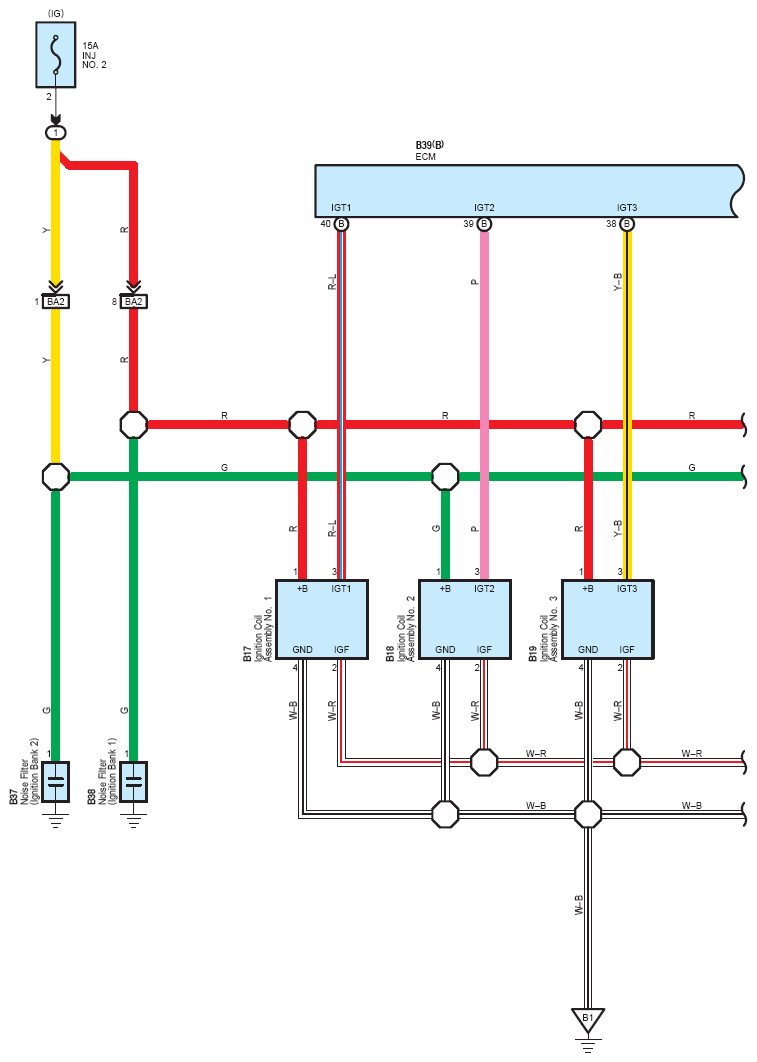

Fig 1: Ignition (2GR-FE) - Circuit Diagram (1 Of 2)
G07615514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

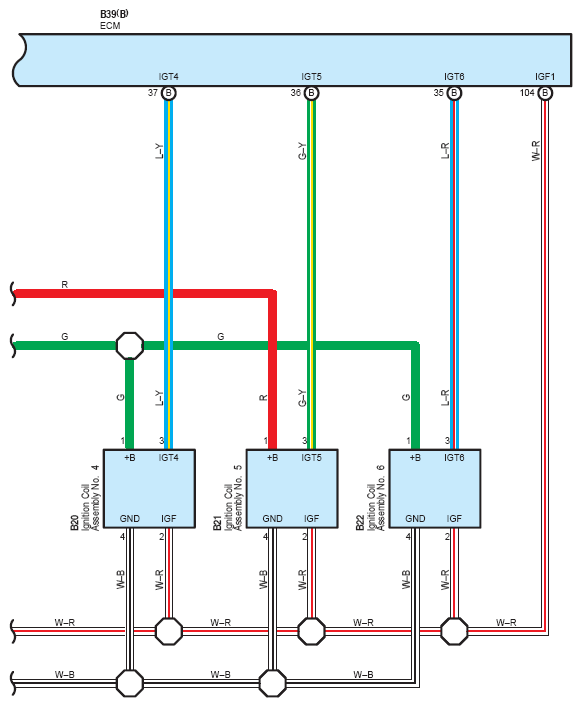

Fig 2: Ignition (2GR-FE) - Circuit Diagram (2 Of 2)
G07615515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

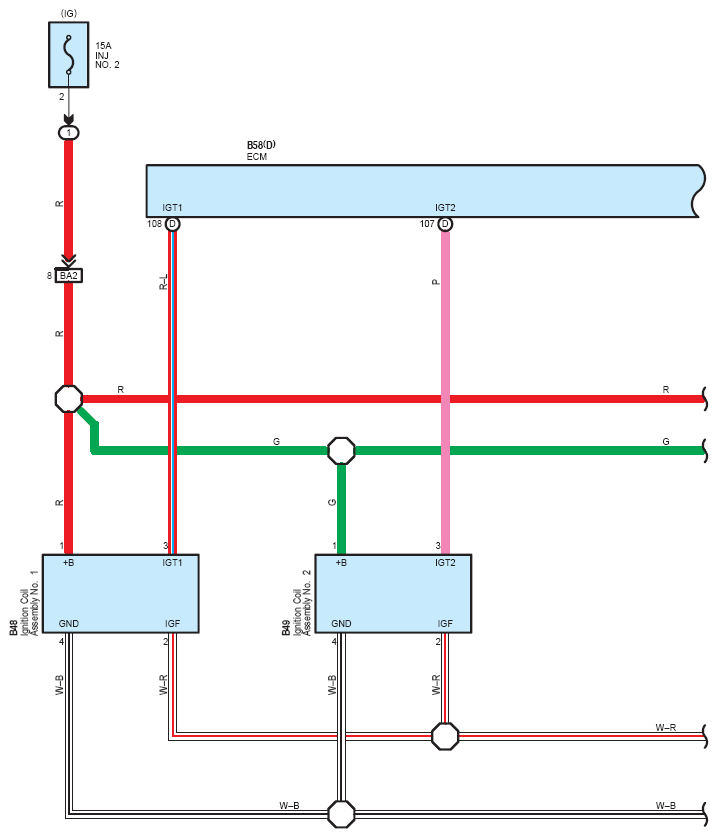

Fig 1: Ignition (2GR-FE) - Circuit Diagram (1 Of 2)
G07615516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

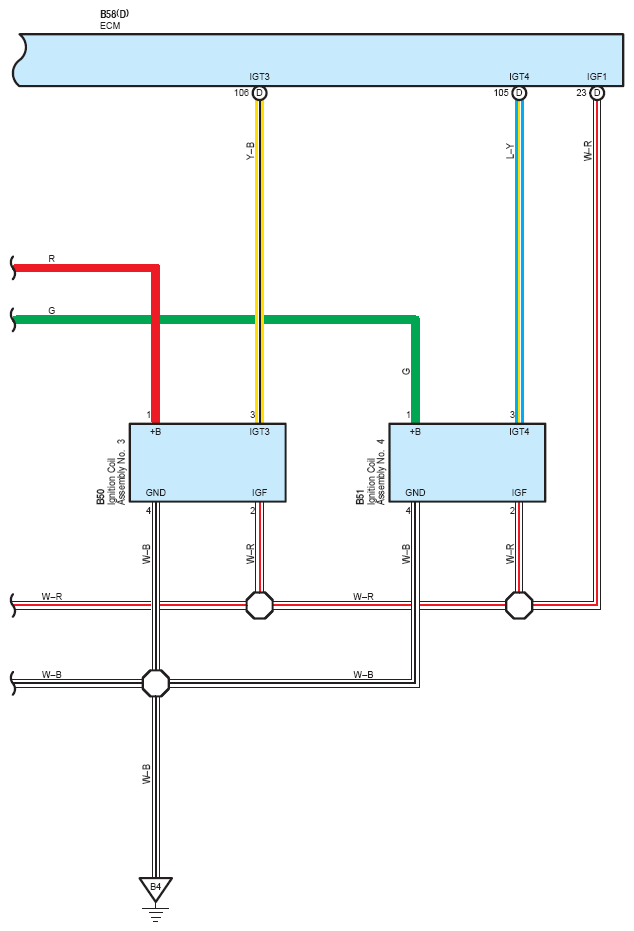

Fig 2: Ignition (2GR-FE) - Circuit Diagram (2 Of 2)
G07615517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
