Engine Immobiliser System (w/o Smart Key System): Notes

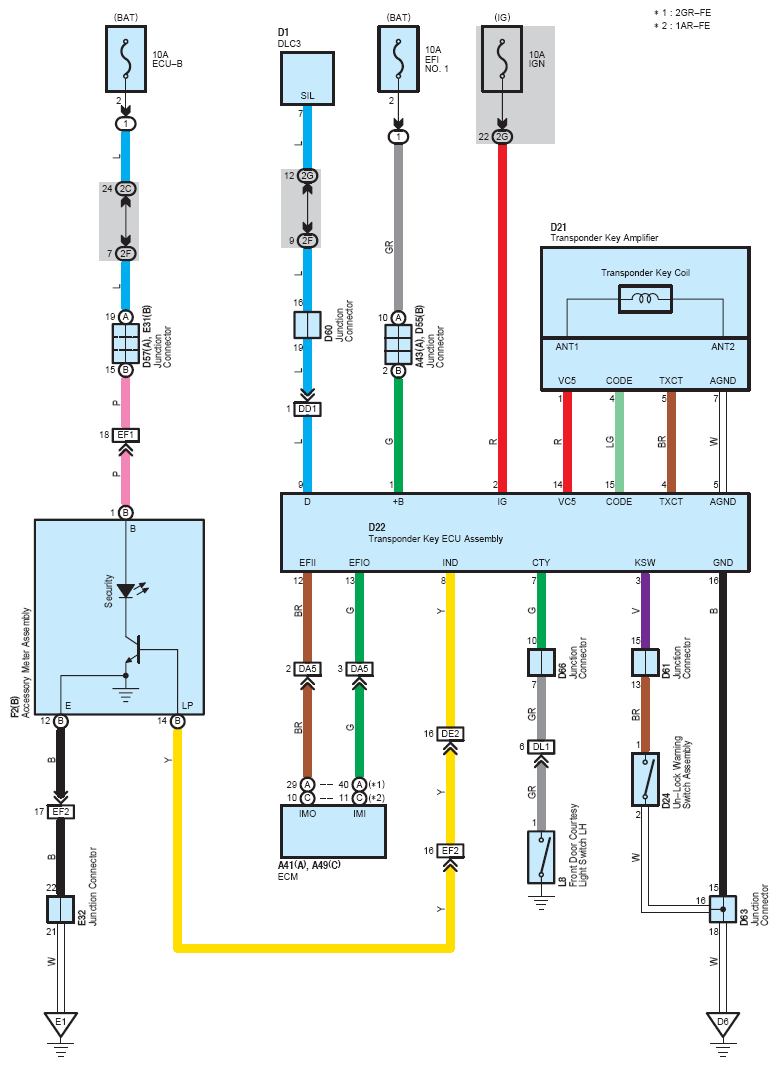

Fig 1: Engine Immobiliser System (W/O Smart Key System) - Circuit Diagram

G07615568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
