Engine Control, Cruise Control, Electronically Controlled Transmission and A/T Indicator (2GR-FE): Notes

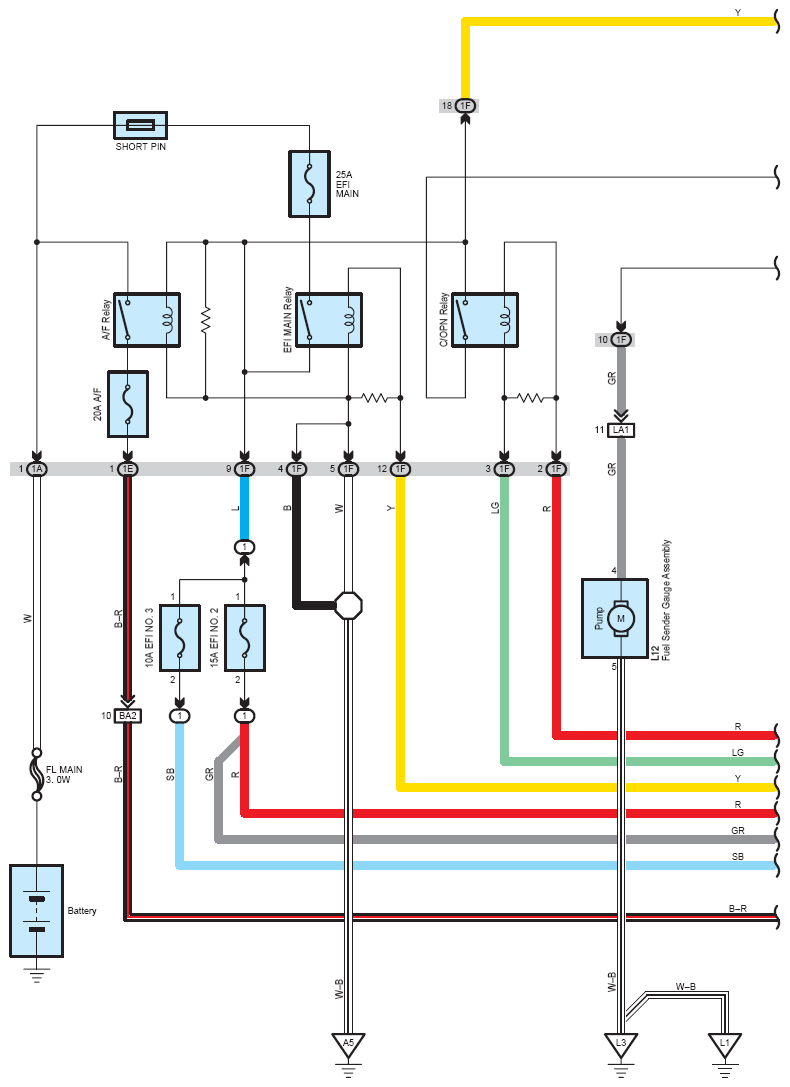

Fig 1: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (1 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

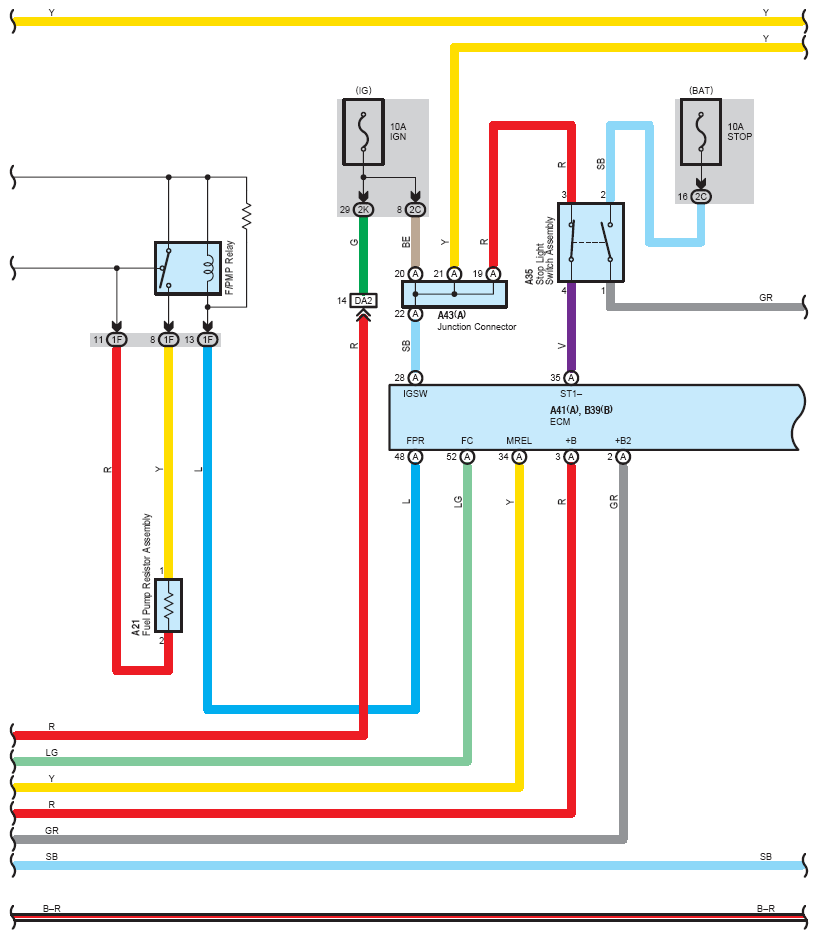

Fig 2: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (2 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

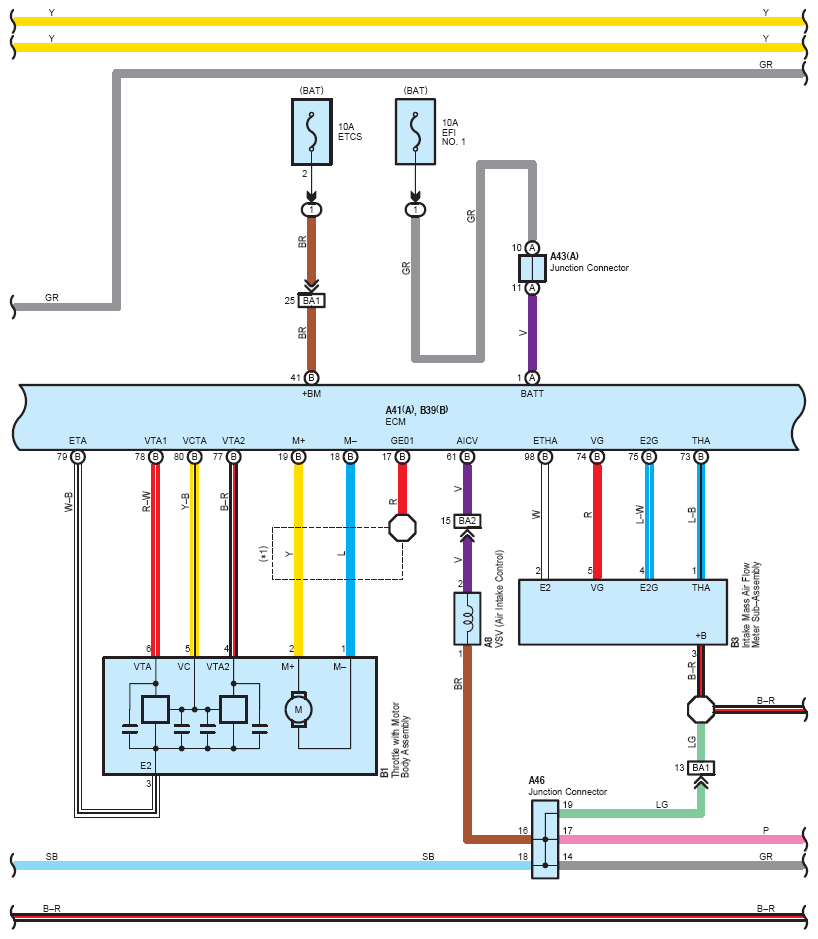

Fig 3: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (3 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

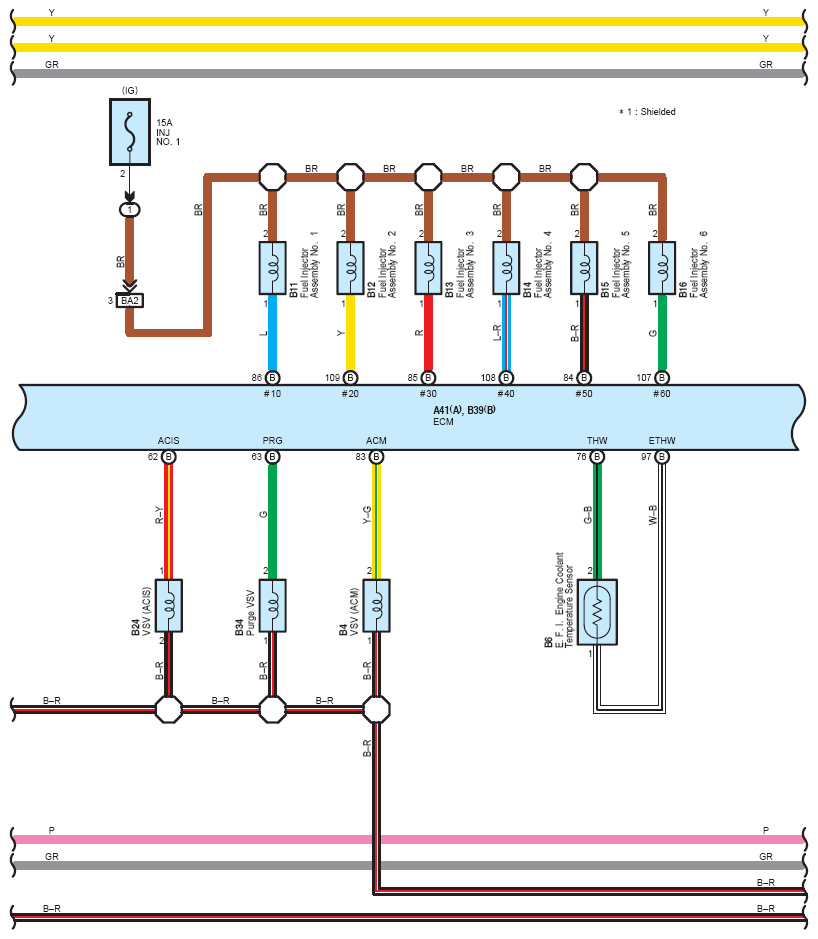

Fig 4: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (4 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

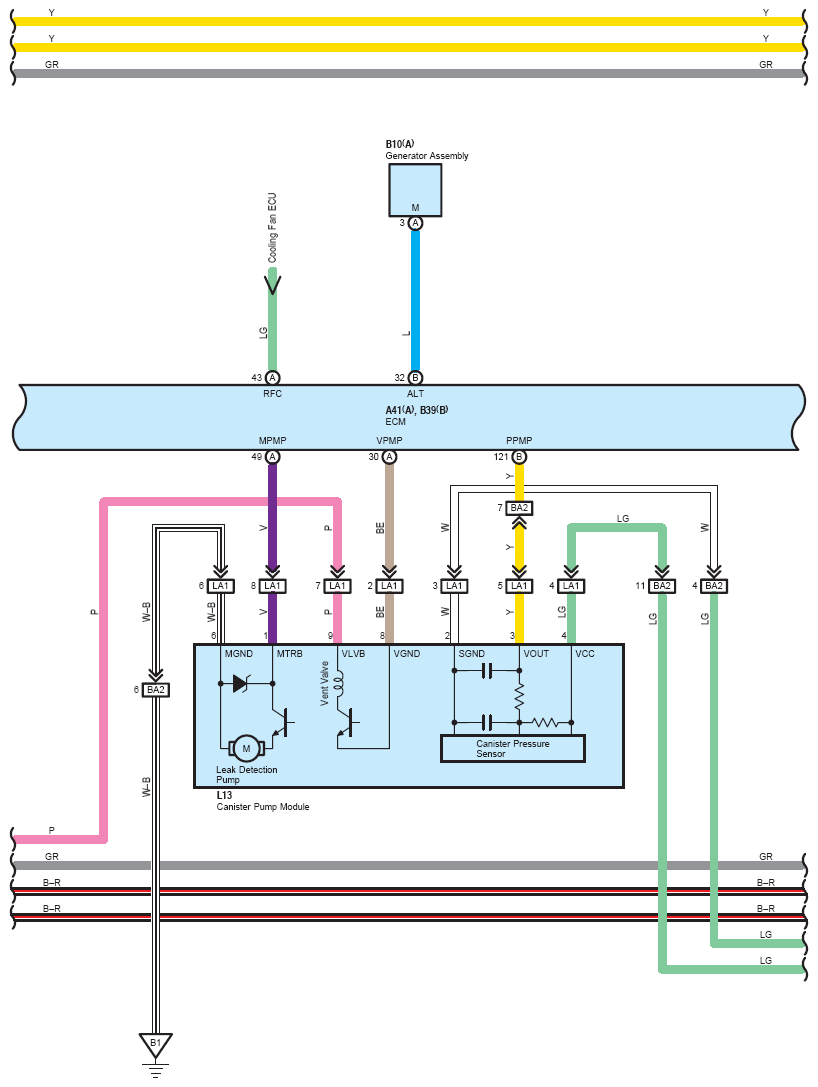

Fig 5: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (5 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

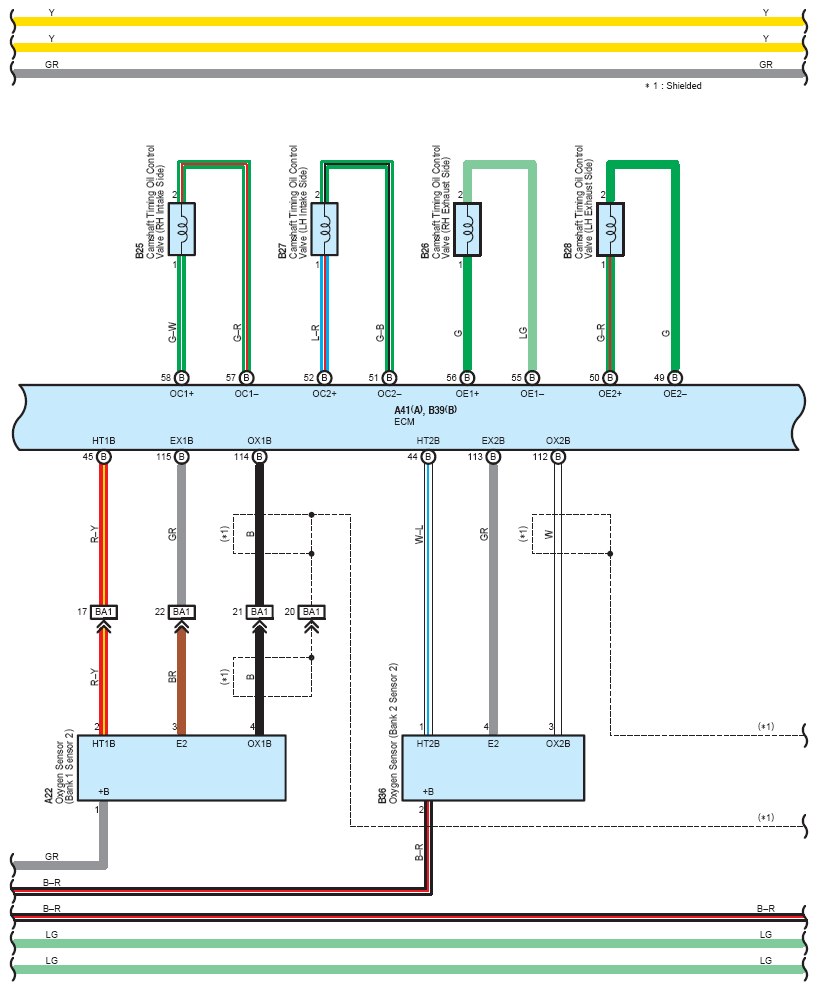

Fig 6: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (6 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

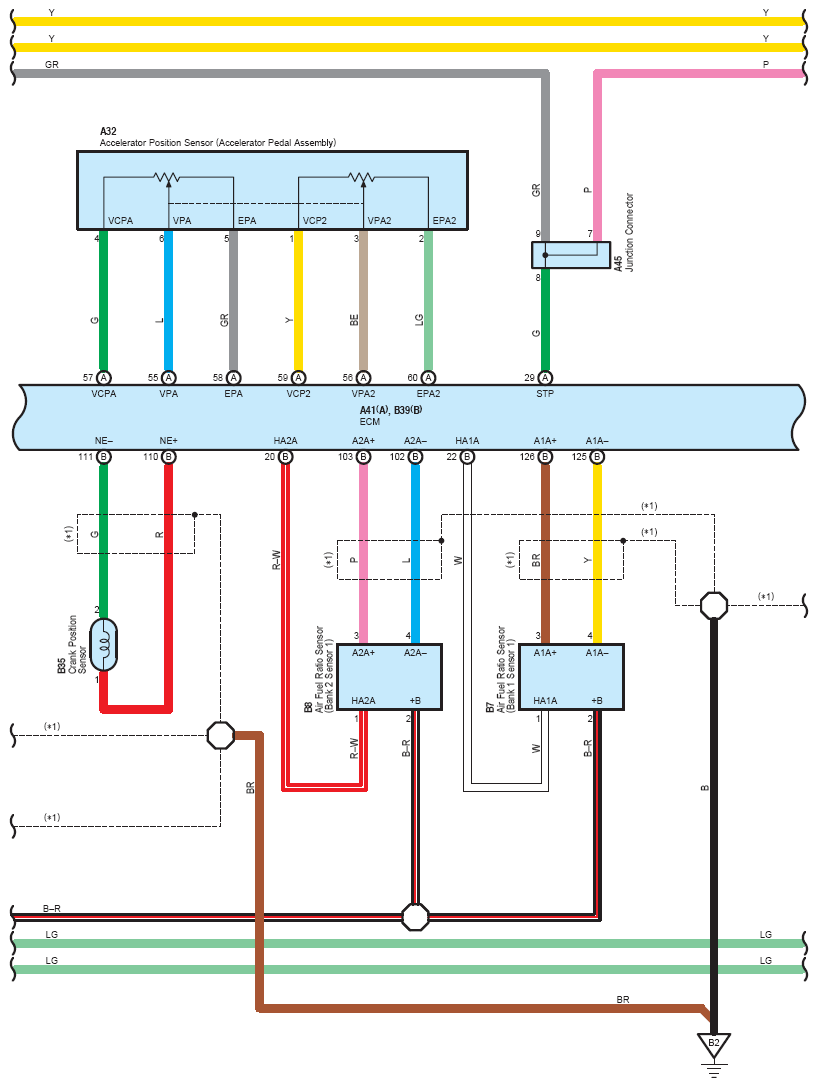

Fig 7: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (7 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

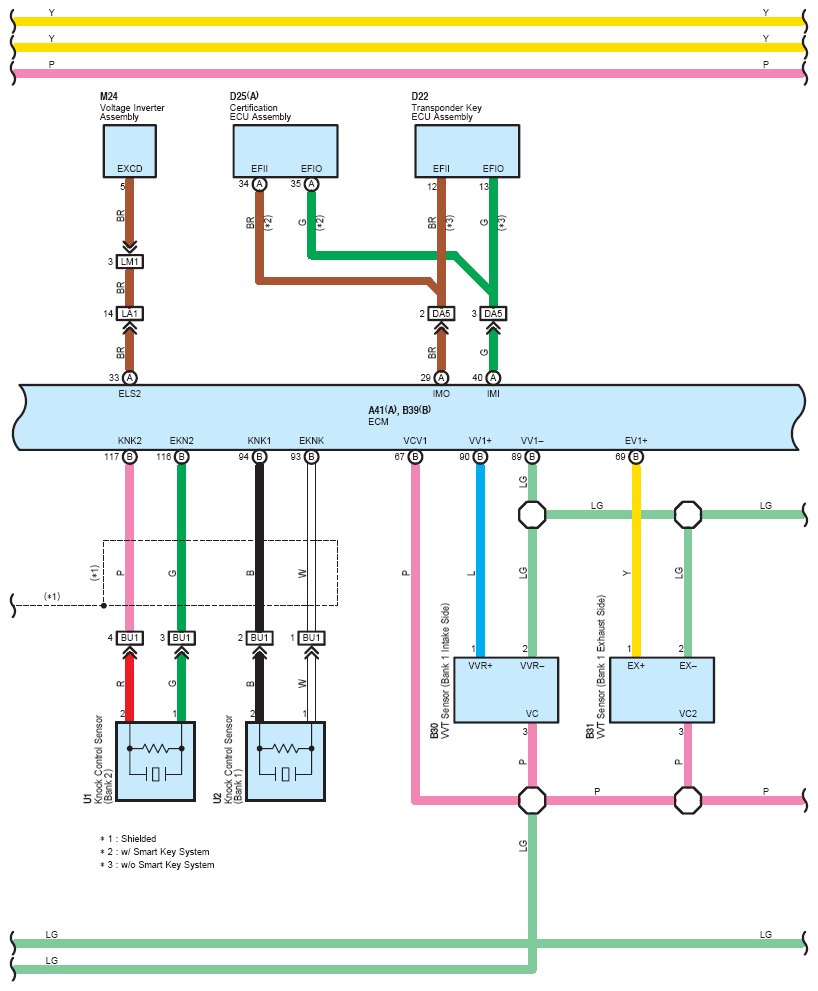

Fig 8: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (8 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

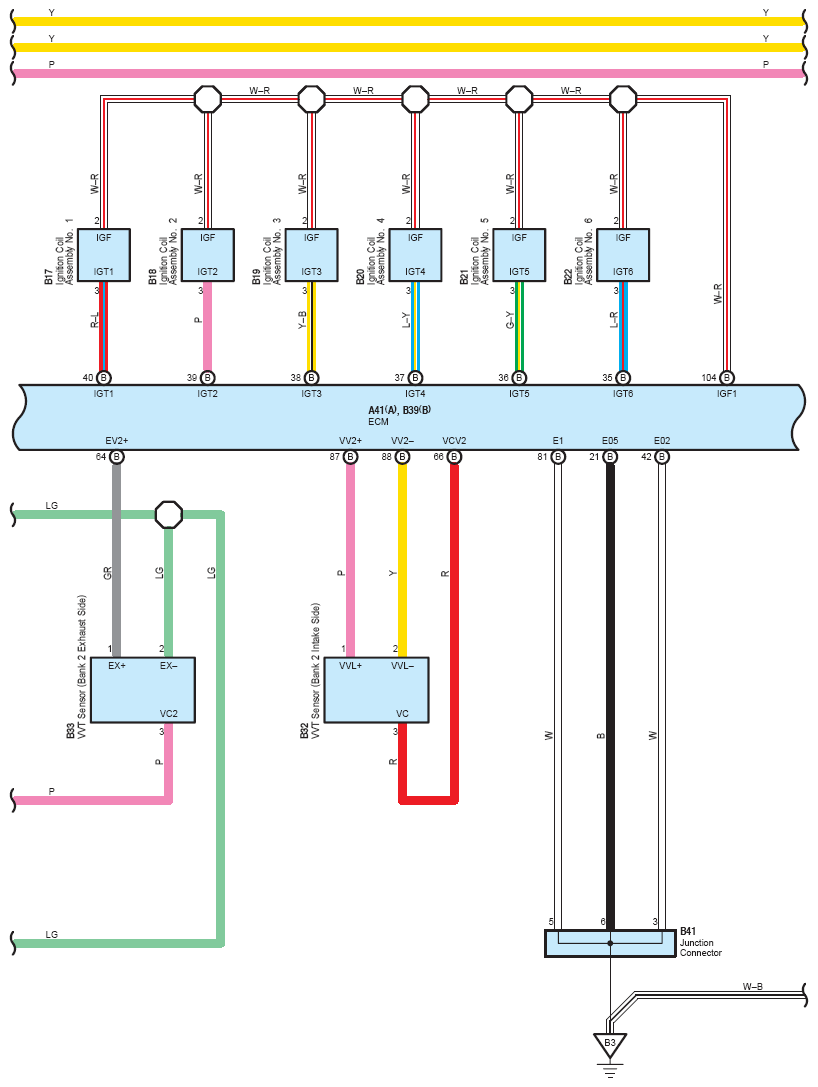

Fig 9: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (9 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

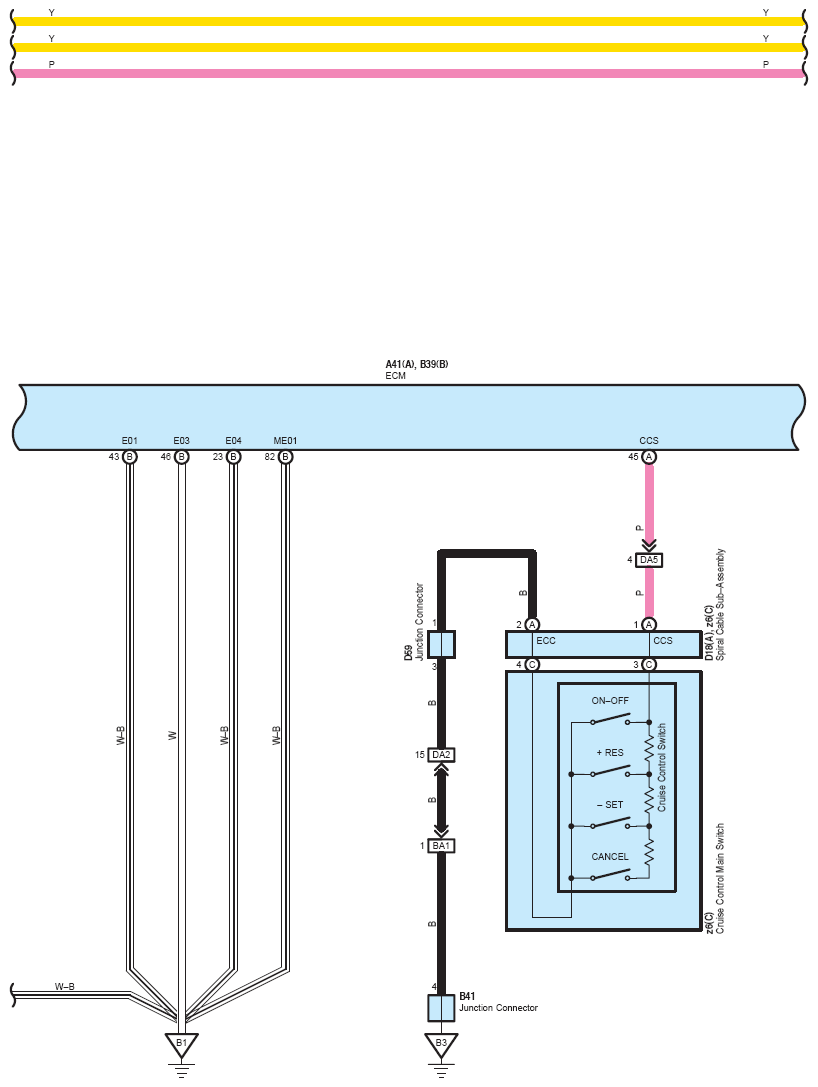

Fig 10: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (10 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

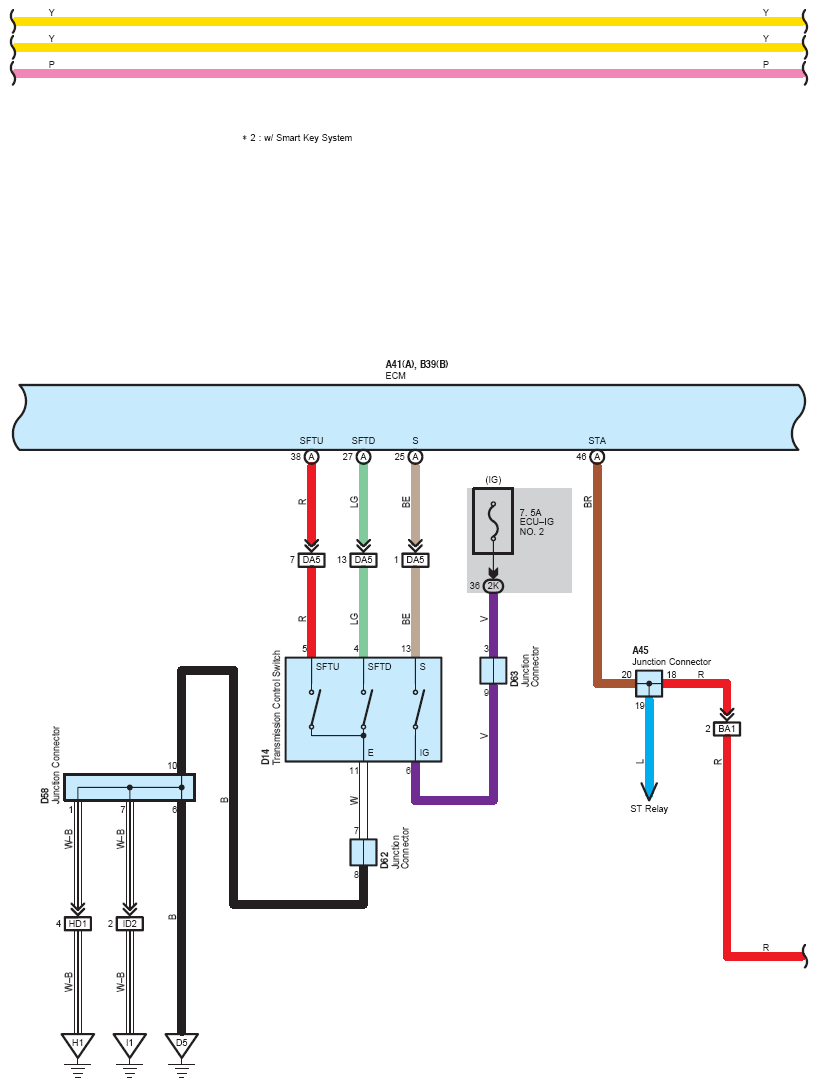

Fig 11: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (11 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

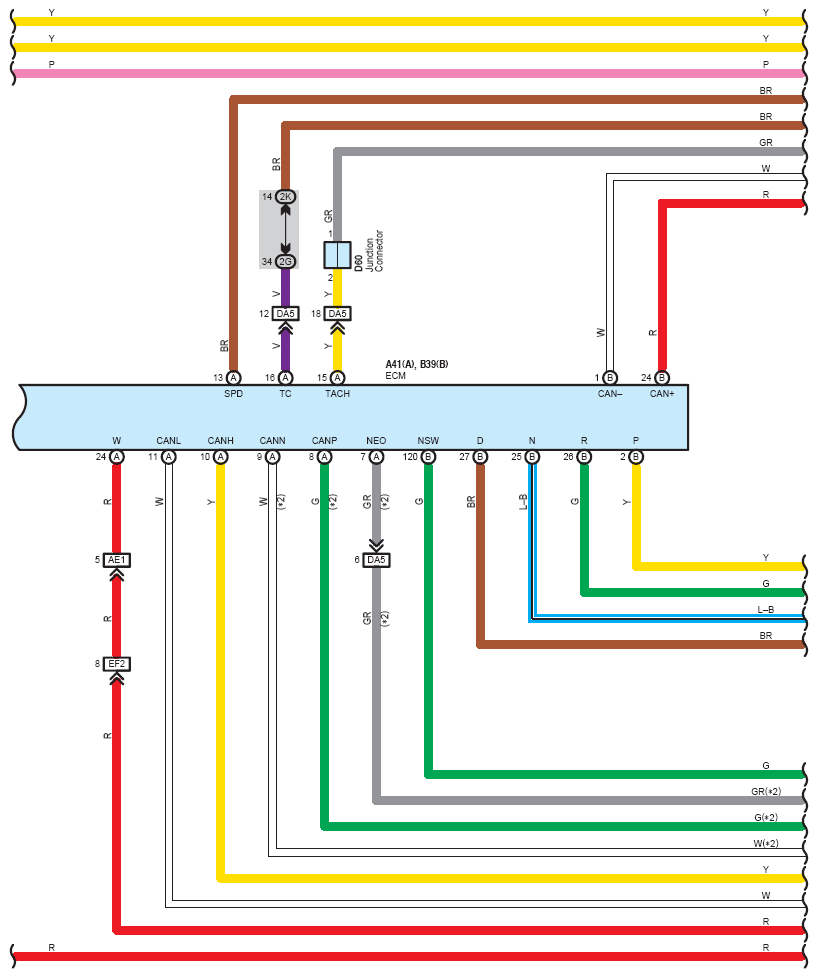

Fig 12: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (12 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

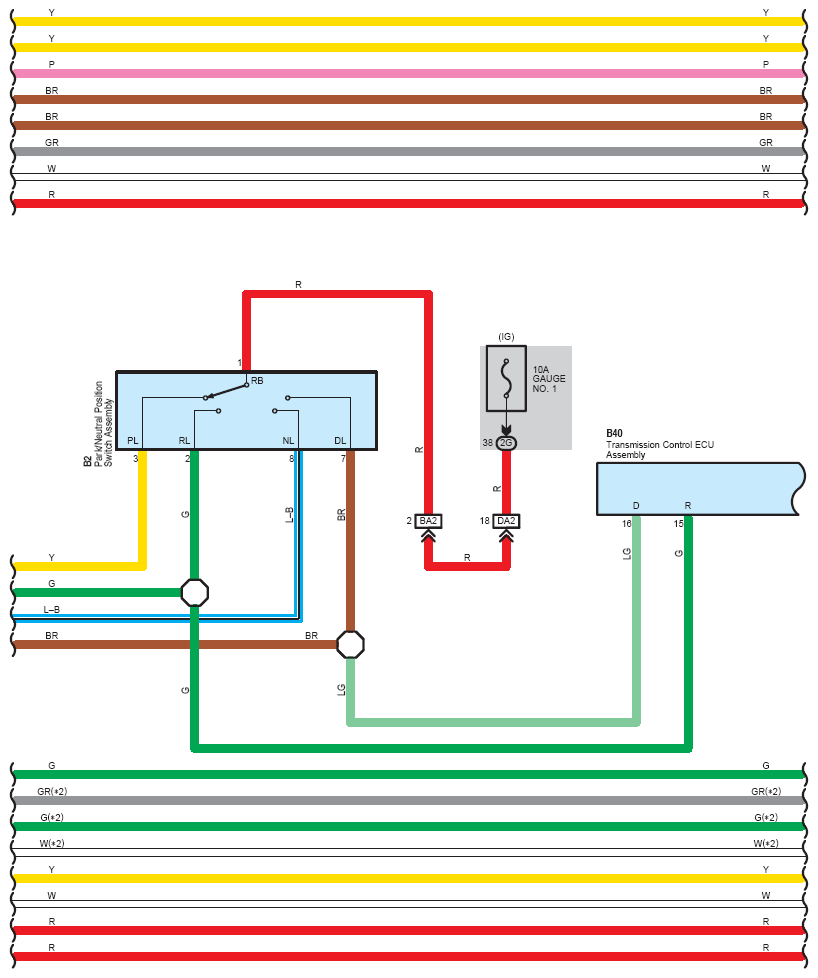

Fig 13: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (13 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

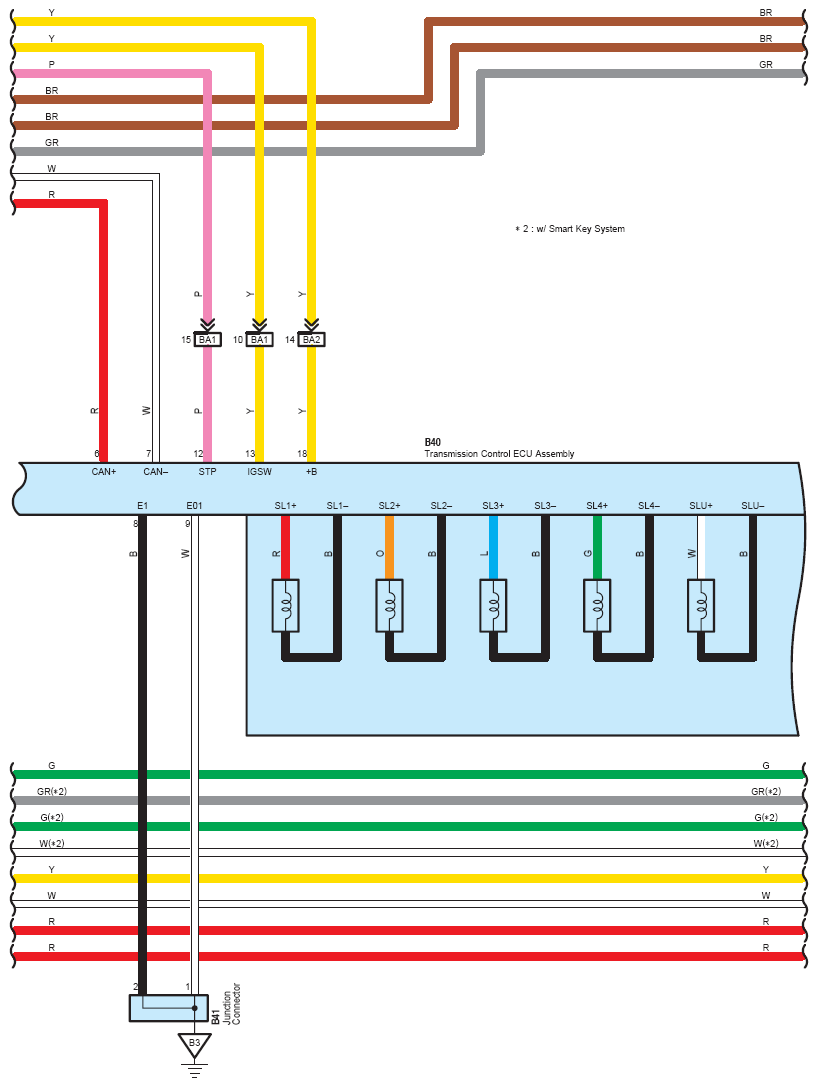

Fig 14: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (14 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

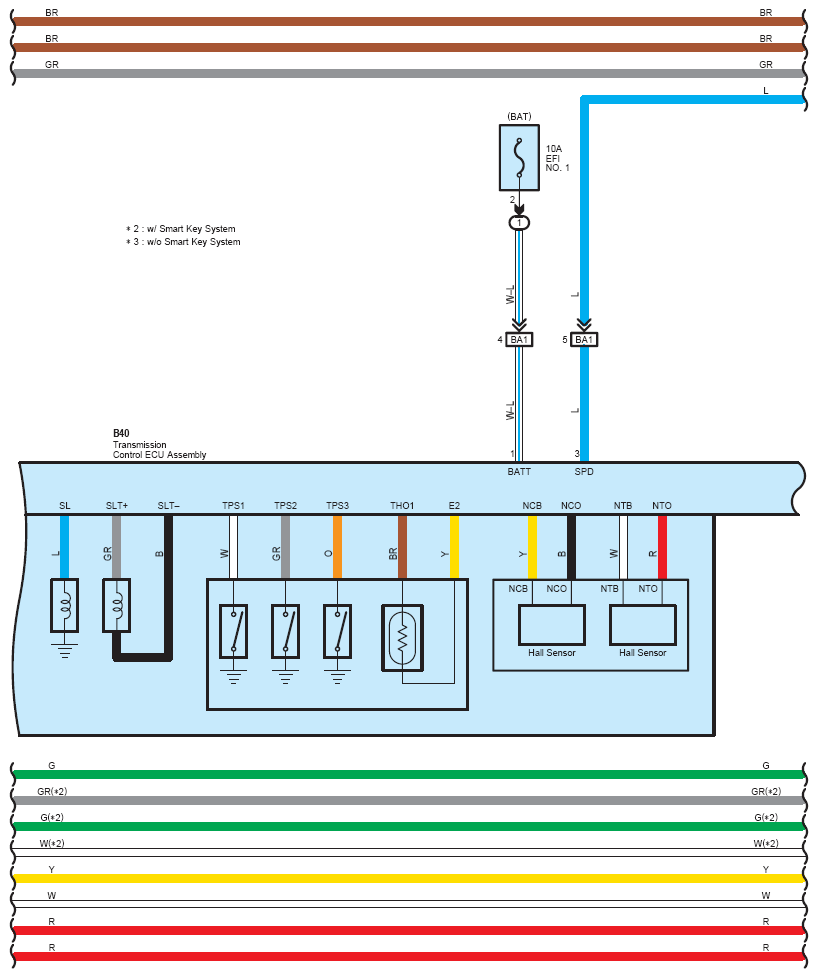

Fig 15: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (15 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

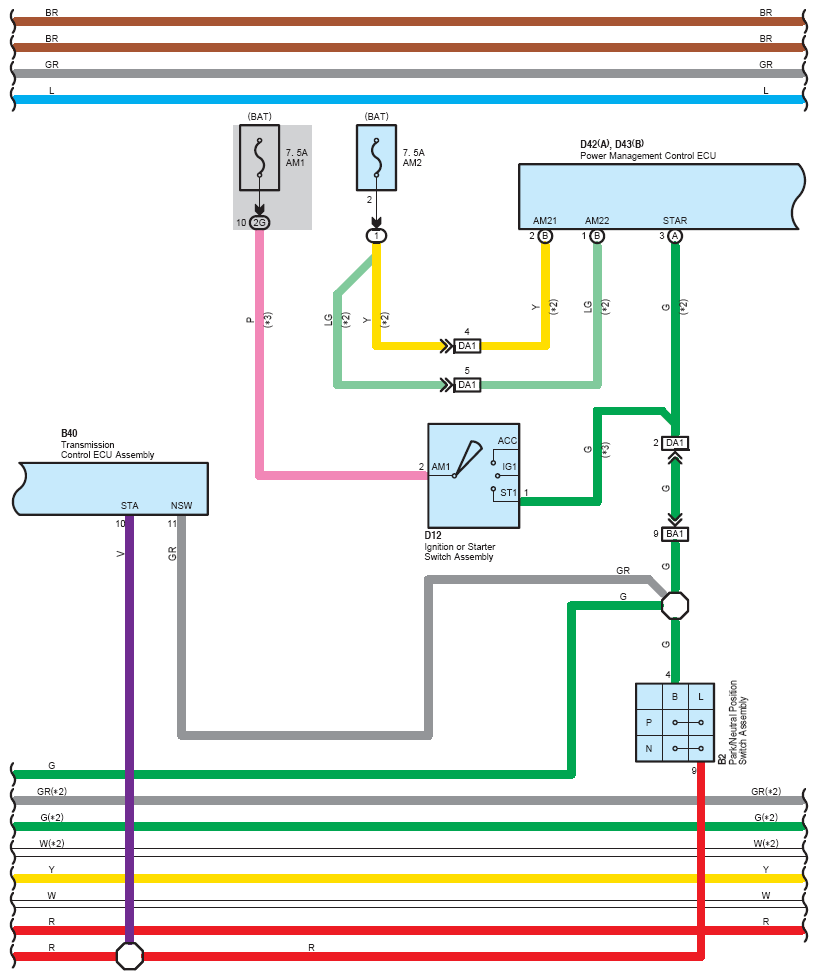

Fig 16: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (16 Of 22)

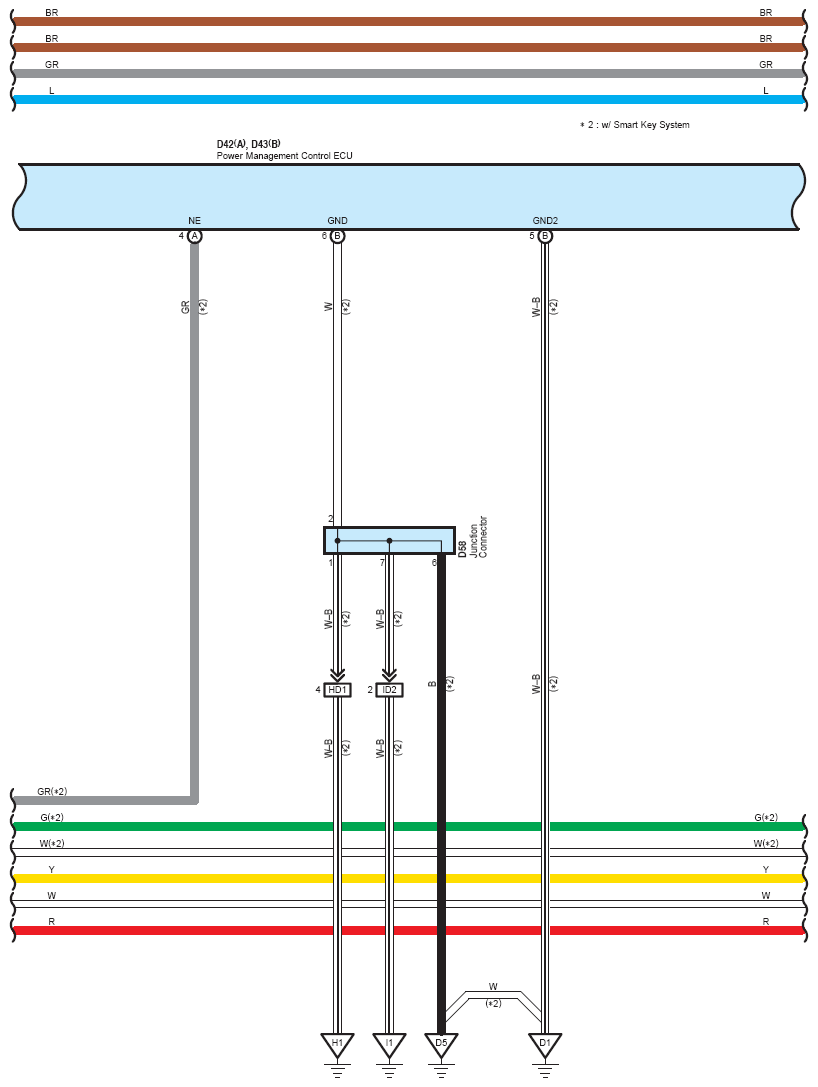

Fig 17: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (17 Of 22)

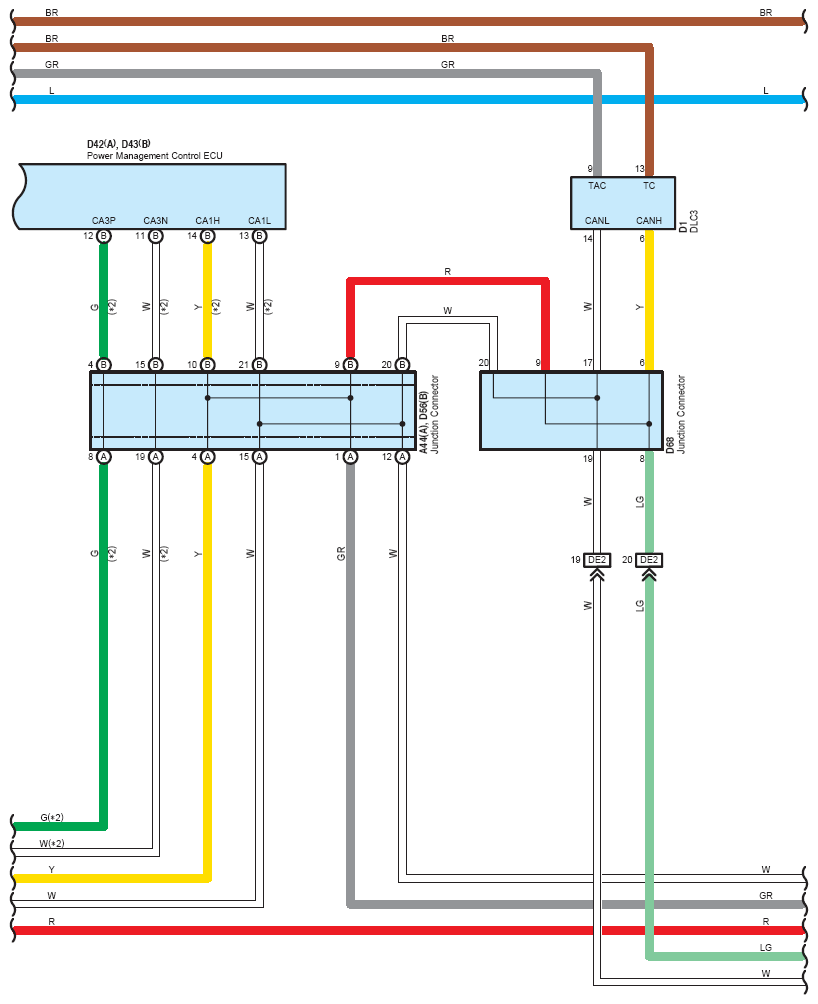

Fig 18: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (18 Of 22)

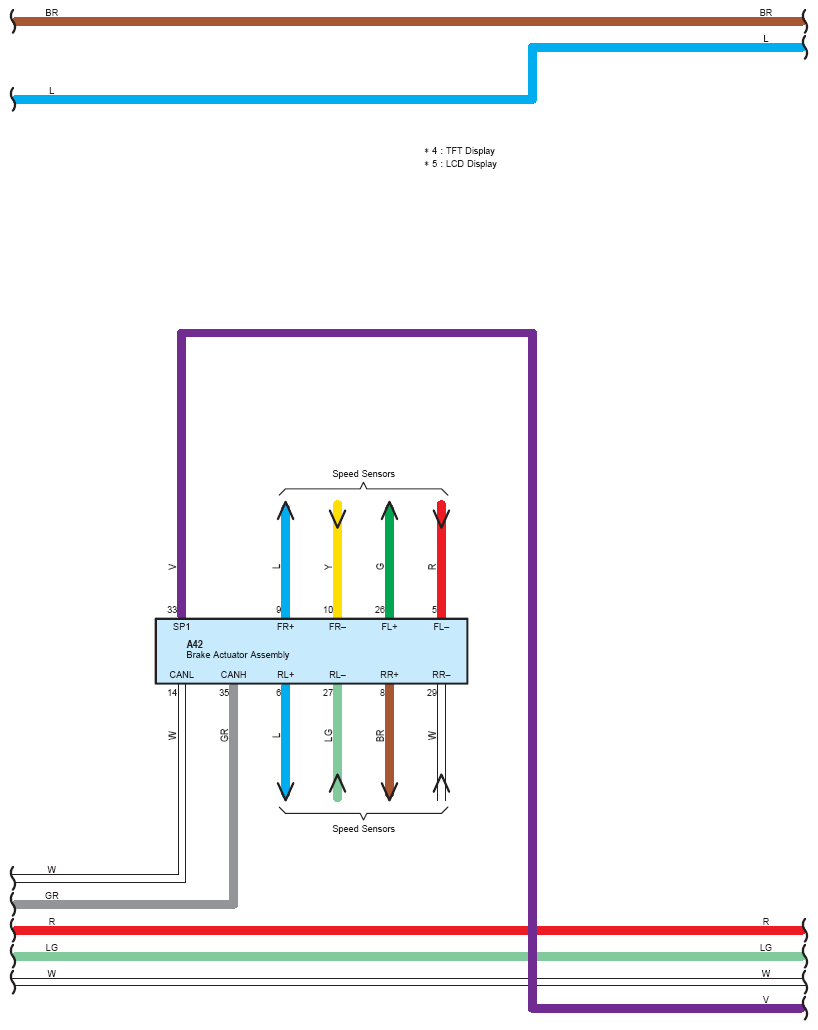

Fig 19: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (19 Of 22)

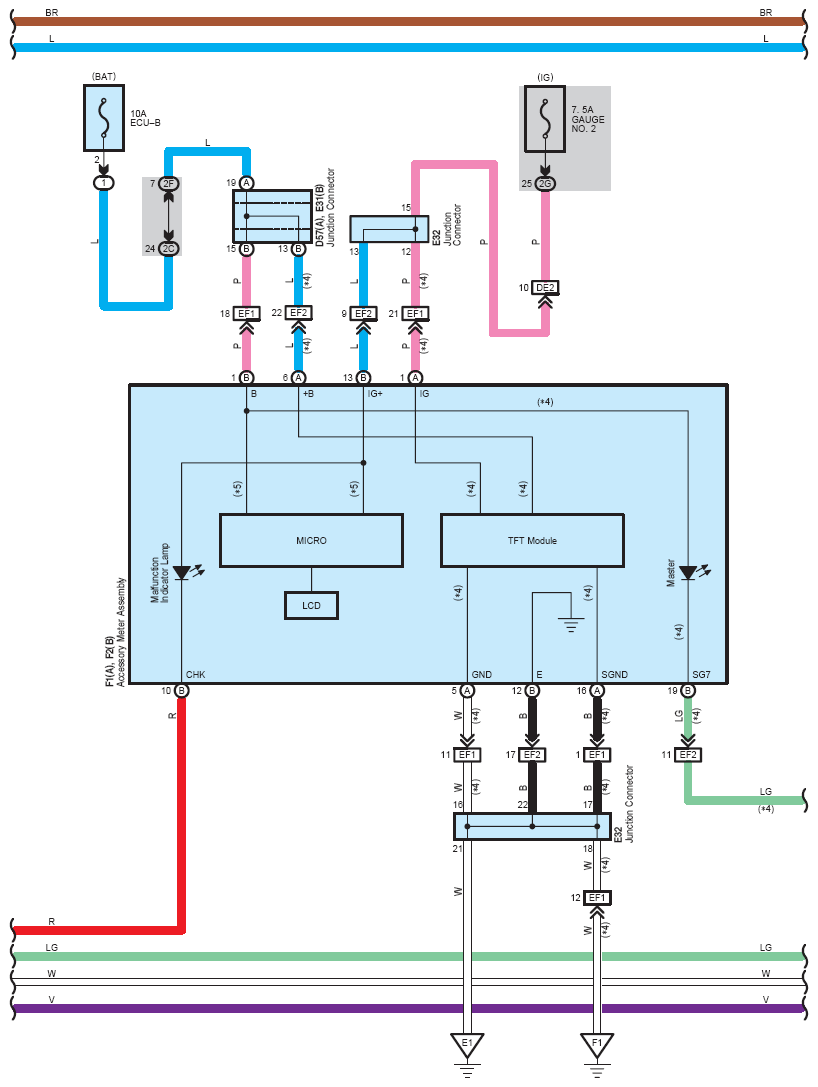

Fig 20: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (20 Of 22)

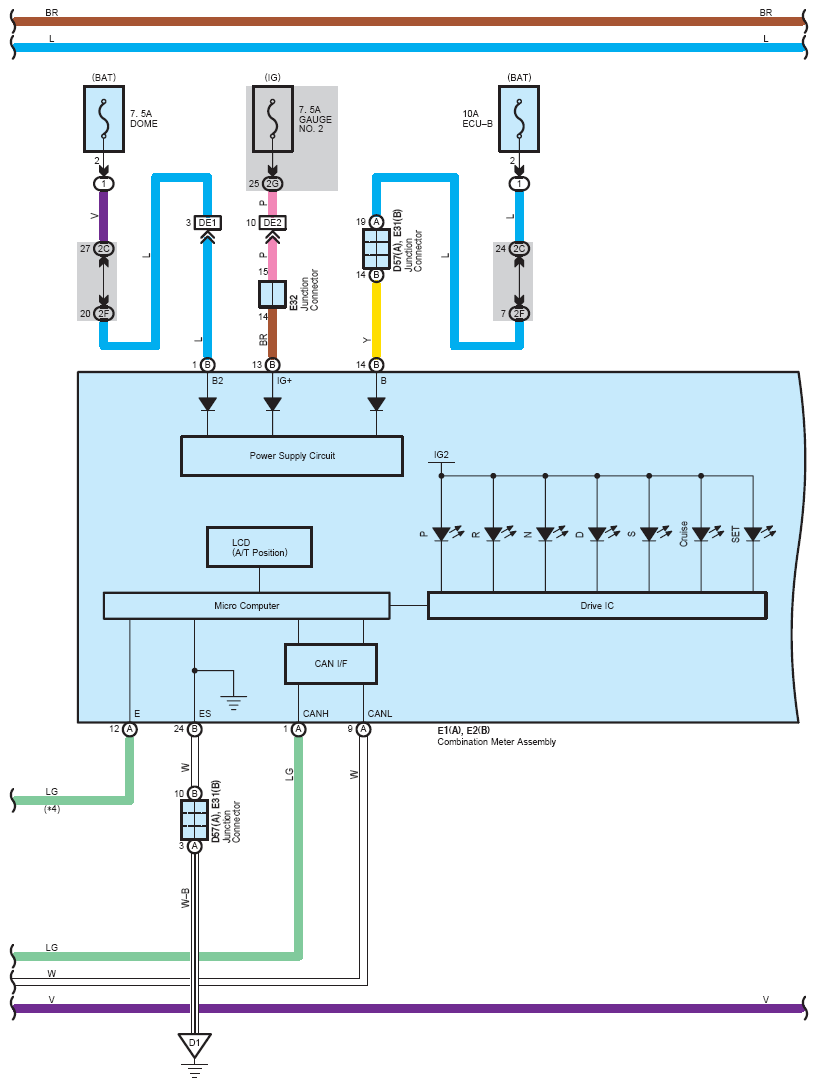

Fig 21: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (21 Of 22)

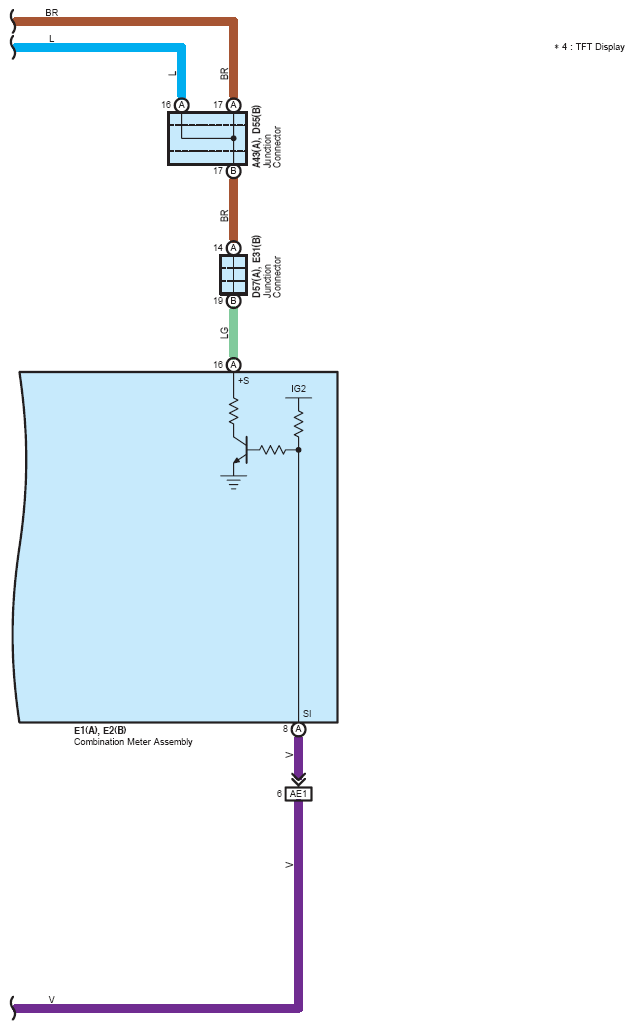

Fig 22: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator (2GR-FE) - Circuit Diagram (22 Of 22)
