Audio System (6 Speaker): Notes

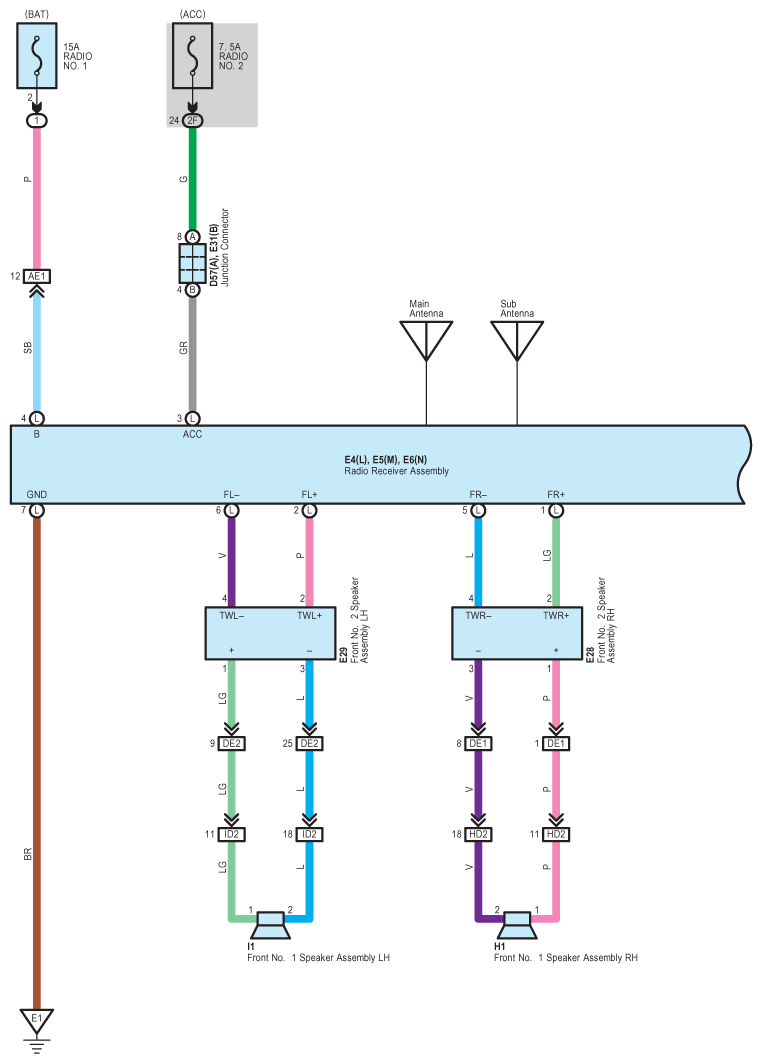

Fig 1: Audio System (6 Speaker) - Circuit Diagram (1 Of 3)
G07615712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

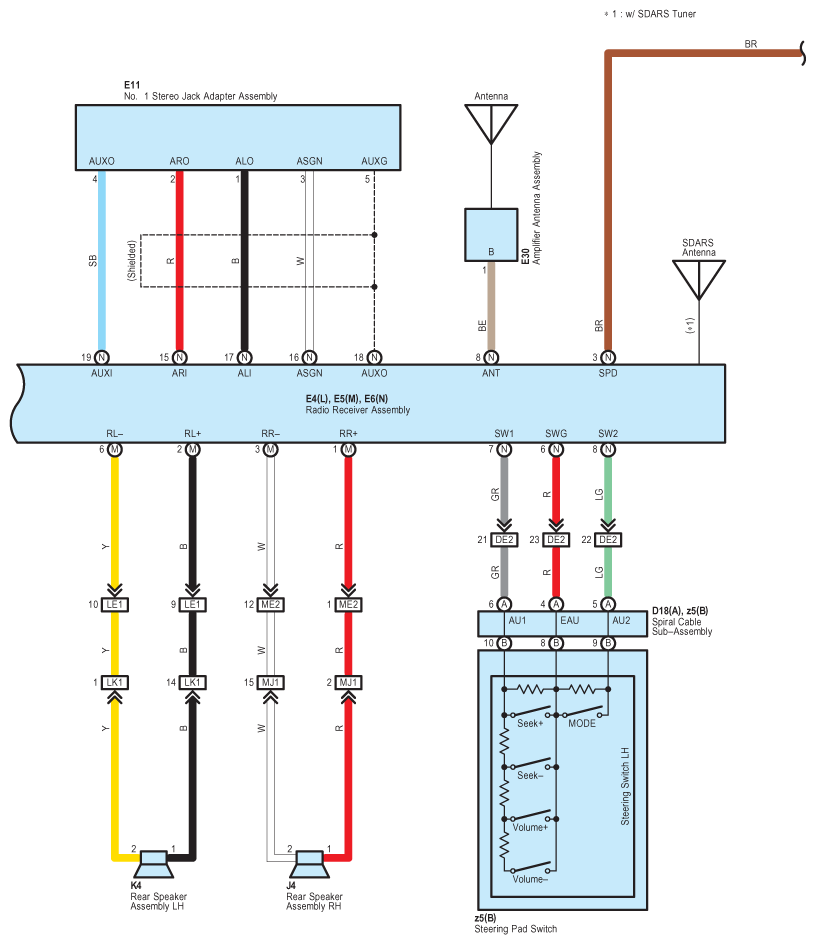

Fig 2: Audio System (6 Speaker) - Circuit Diagram (2 Of 3)
G07615713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Audio System (6 Speaker) - Circuit Diagram (3 Of 3)
G07615714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
