Toyota
>>
2009
>>
Venza 2.7 E, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control/Dynamic Control System
>>
Steering Angle Sensor
>>
Components
Steering Angle Sensor: Components

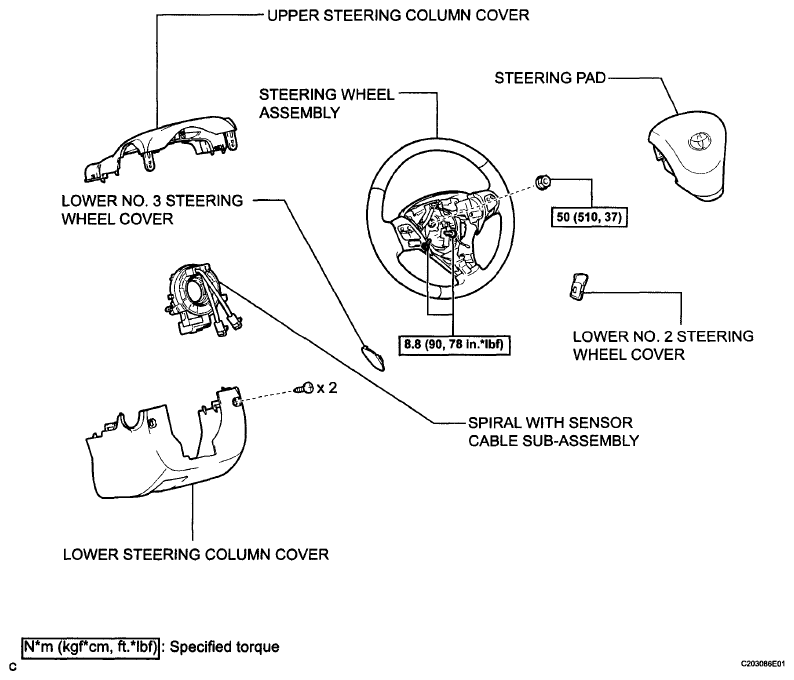

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
