Home >> Toyota >> 2009 >> Venza 2.7 E, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control/Dynamic Control System >> REAR SPEED SENSOR (for 2WD) >> Components

REAR SPEED SENSOR (for 2WD): Components

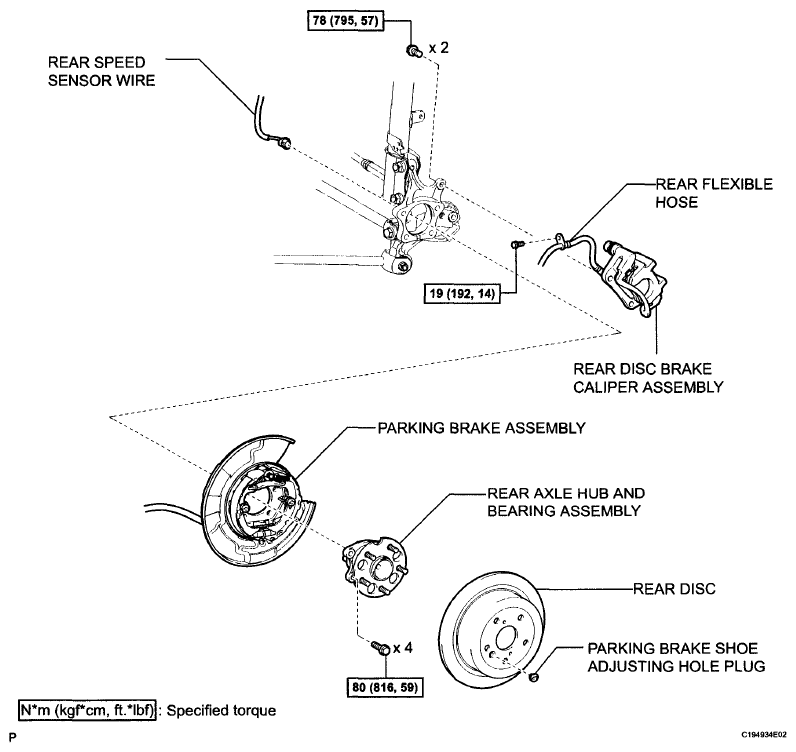

Fig 1: Rear Speed Sensor (For 2WD) Replacement Components With Torque Specifications

G06026180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
