Windshield Glass: Components

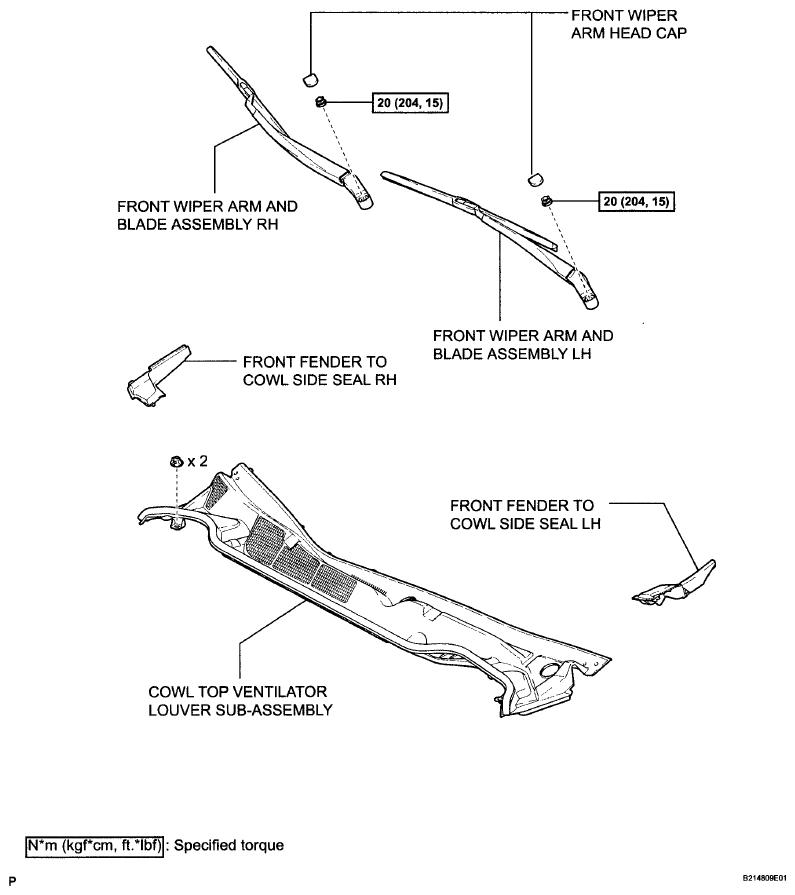

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specification (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

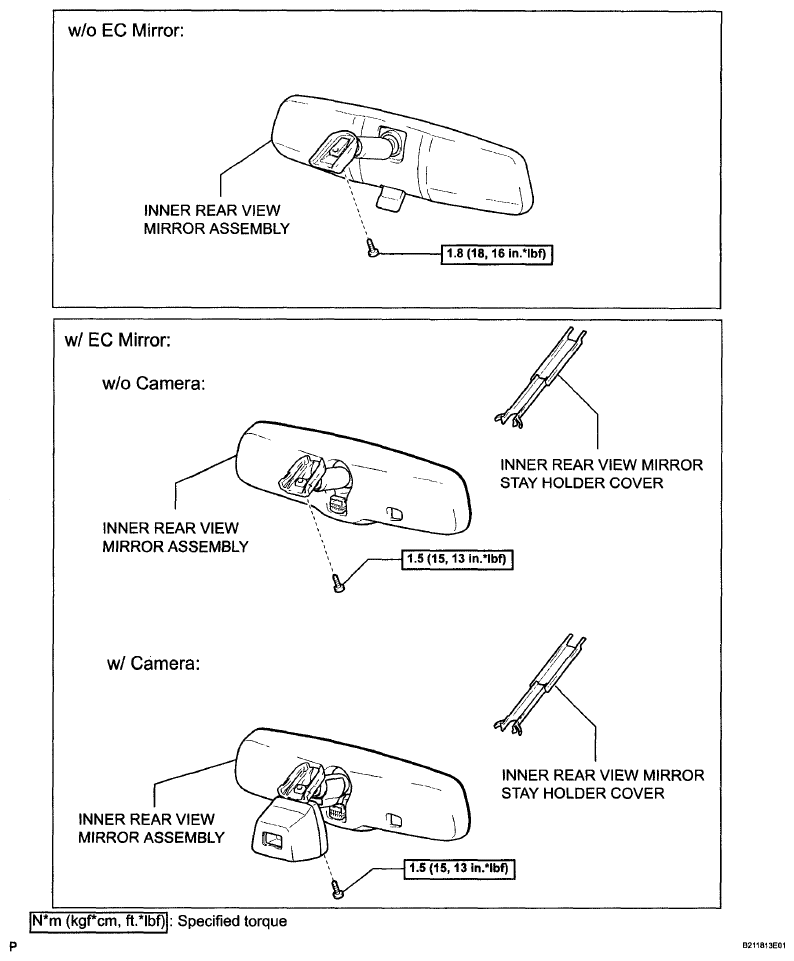

Fig 2: Identifying Windshield Glass Replacement Components With Torque Specification (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

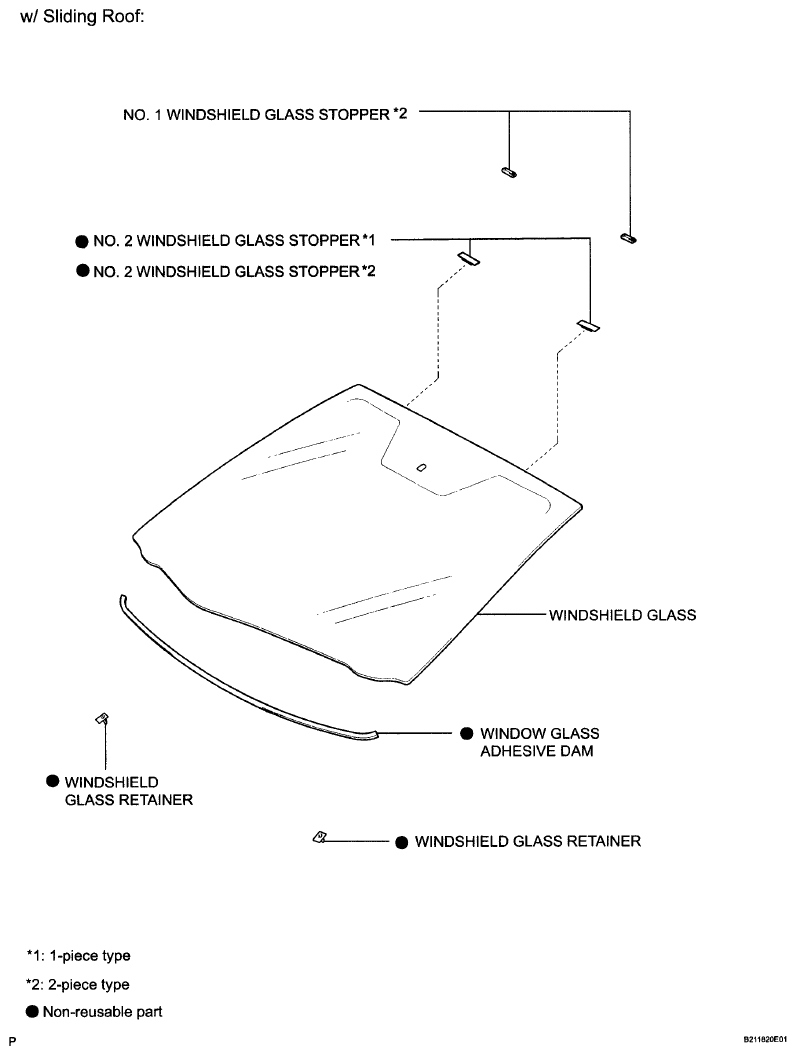

Fig 3: Identifying Windshield Glass Replacement Components With Torque Specification (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

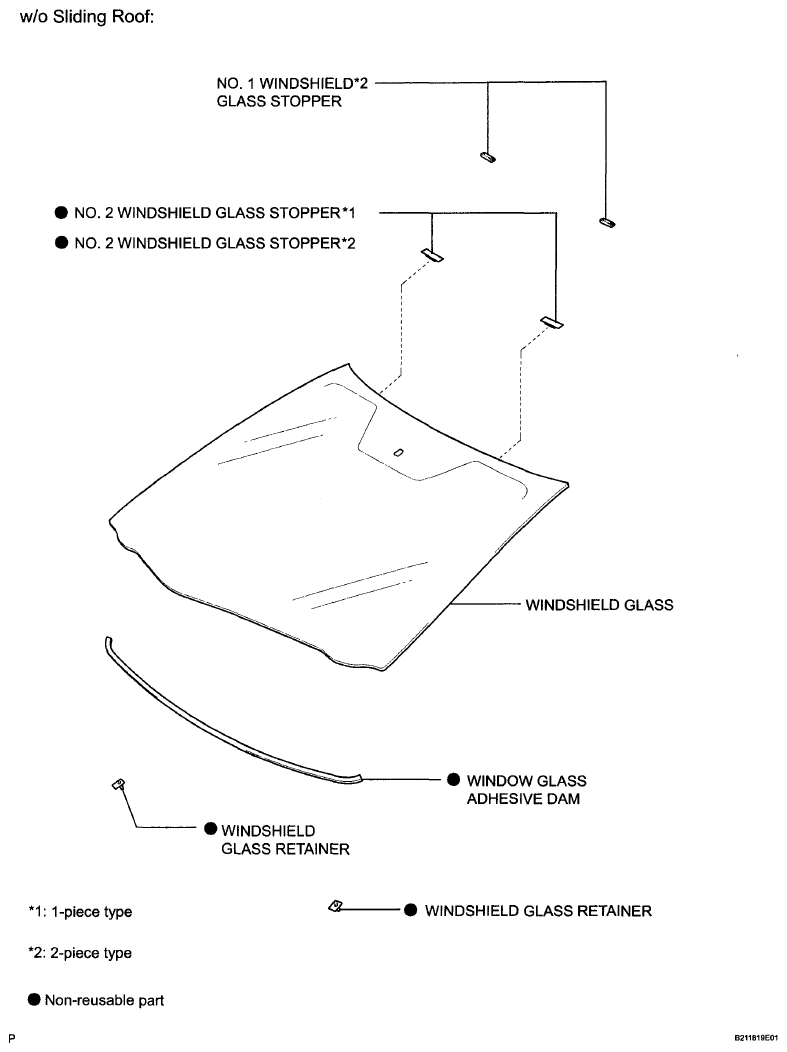

Fig 4: Identifying Windshield Glass Components (4 Of 5)

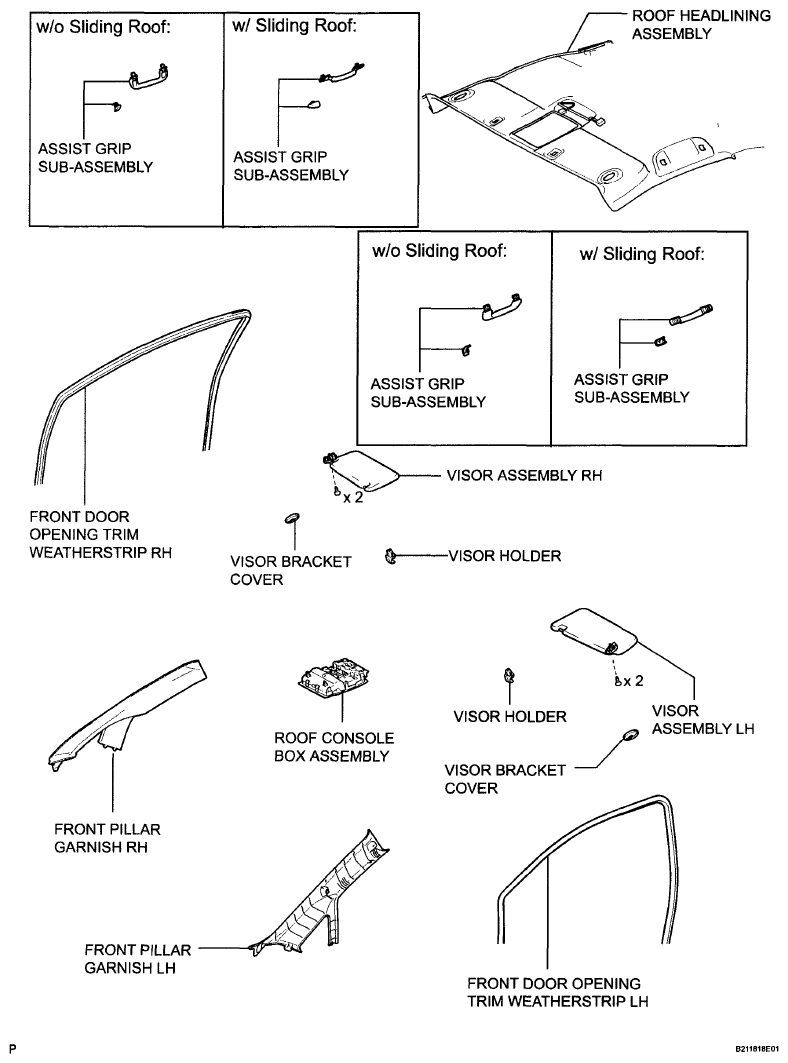

Fig 5: Identifying Windshield Glass Components (5 Of 5)
