Parts Location

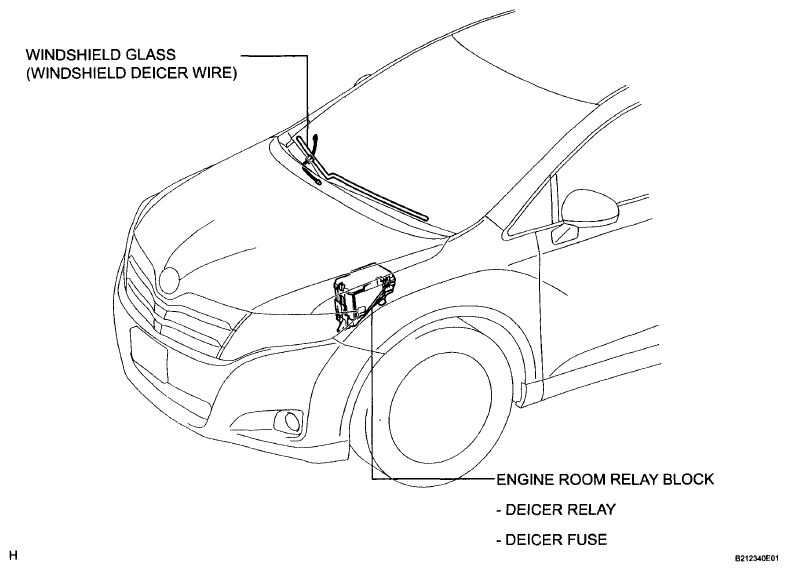

Fig 1: Identifying Windshield Deicer System Parts Location (1 Of 2)
G06029003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Windshield Deicer System Parts Location (2 Of 2)
G06029004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
