Inspection Procedure

NOTE: Inspect the fuses for circuits related to this system before performing the following inspection procedure.
  1. CHECK AIR CONDITIONING SYSTEM
    1. Check the air conditioning system.

      HINT:

      Both the window defogger system operation signal and air conditioning system operation signal are transmitted to the air conditioning amplifier assembly through the same LIN communication line.

      Result

      RESULT CHART

      Result Proceed to
      The air conditioning system operates normally. A
      The air conditioning system does not operate normally, (for Automatic Air Conditioning System) B
      The air conditioning system does not operate normally, (for Manual Air Conditioning System) C

      B: GO TO AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)  (See HOW TO PROCEED WITH TROUBLESHOOTING )

      C: GO TO AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)  (See HOW TO PROCEED WITH TROUBLESHOOTING )

      A: Go to Next Step

  2. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body / Air Conditioner / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Air Conditioner (Air Conditioning Amplifier Assembly)

      AIR CONDITIONER ACTIVE TEST REFERENCE

      Tester Display Test Part Control Range Diagnostic Note
      Defogger Relay (Rear) Rear window defogger OFF or ON -

      OK: The window defogger system operates normally  .

      NG: Go to step 3

      OK: REPLACE AIR CONDITIONING CONTROL ASSEMBLY  (See REMOVAL )

  3. INSPECT DEF RELAY
    1. Remove the DEF relay from the engine room relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      3 - 4 Battery voltage applied between terminals 1 and 2 10 kΩ or higher
      3 - 4 Battery voltage not applied between terminals 1 and 2 Below 1 Ω
      3 - 5 Battery voltage applied between terminals 1 and 2 Below 1 Ω
      3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher
      Fig 1: DEF Relay Circuit
      G04952245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE DEF RELAY

      OK: Go to Next Step

  4. CHECK HARNESS AND CONNECTOR (DEF RELAY POWER SOURCE)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      Engine room relay block DEF relay terminal 1 - Body ground Ignition switch off Below 1 V
      Engine room relay block DEF relay terminal 1 - Body ground Ignition switch ON 11 to 14 V

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Engine Room Relay Block
      *2 DEF Relay Terminal
      Fig 2: Identifying DEF Relay Terminal
      G06029022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (DEF RELAY - AIR CONDITIONING AMPLIFIER ASSEMBLY)
    1. Disconnect the D47 air conditioning amplifier assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      Engine room relay block DEF relay terminal 1 - D47-18 (D) Always Below 1 Ω
      D47-14 (GND) - Body ground Always Below 1 Ω
      D47-18 (D) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Engine Room Relay Block
      *2 DEF Relay Terminal
      *3 Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

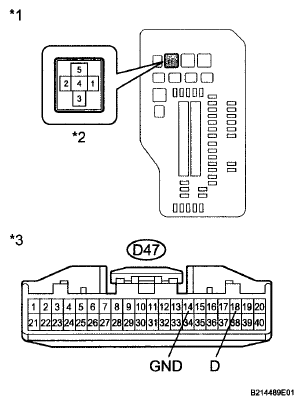

      Fig 3: Identifying DEF Relay Terminal And Air Conditioning Amplifier Assembly Connector Terminals
      G06029023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  6. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Install the DEF relay to the engine room relay block.
    2. Reconnect the D47 air conditioning amplifier assembly connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      D47-18 (D) - D47-14 (GND) Ignition switch ON, rear window defogger switch off 11 to 14 V
      D47-18 (D) - D47-14 (GND) Ignition switch ON, rear window defogger switch on Below 1 V

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Component with harness connected (Air Conditioning Amplifier Assembly)
      Fig 4: Identifying D47 Air Conditioning Amplifier Assembly Connector Terminals
      G06029024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY  (See AIR CONDITIONING AMPLIFIER )

      OK: Go to Next Step

  7. CHECK HARNESS AND CONNECTOR (DEF RELAY POWER SOURCE)
    1. Remove the DEF relay from the engine room relay block.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      Engine room relay block DEF relay terminal 5 - Body ground Always 11 to 14 V

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Engine Room Relay Block
      *2 DEF Relay Terminal
      Fig 5: Identifying DEF Relay Terminal
      G06029022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  8. CHECK HARNESS AND CONNECTOR (DEF RELAY - RADIO SETTING CONDENSER)
    1. Disconnect the R7 radio setting condenser connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R7-2 (DEF) - No. 1 engine room relay block DEF relay terminal 3 Always Below 1 Ω
      R7-2 (DEF) - Body ground Always 10 kΩ or higher
      No. 1 engine room relay block DEF relay terminal 3 - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 No. 1 Engine Room Relay Block
      *2 DEF Relay Terminal
      *3 Front view of wire harness connector (to Radio Setting Condenser)
      Fig 6: Identifying DEF Relay Terminal And Radio Setting Condenser Connector Terminal
      G06029026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (RADIO SETTING CONDENSER - REAR WINDOW DEFOGGER)
    1. Disconnect the R16 rear window defogger connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R7-1 (DEFB) - R16-1 (B) Always Below 1 Ω
      R7-1 (DEFB) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (Radio Setting Condenser)
      *2 Front view of wire harness connector (Rear Window Defogger)
      Fig 7: Identifying R16 Rear Window Defogger Connector And R7 Radio Setting Condenser Connector Terminal
      G06029027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  10. INSPECT BACK DOOR GLASS (REAR WINDOW DEFOGGER WIRE)
    1. Disconnect the R15 rear window defogger connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      1 - 1 Always Below 1 Ω

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Component without harness connector (Back Door Glass (Rear Window Defogger Wire))
      *2 Battery Side
      *3 Body Ground Side

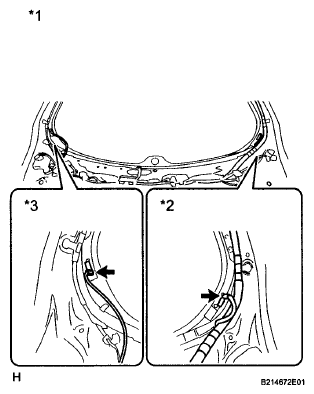

      Fig 8: Locating R15 Rear Window Defogger Connector
      G06029028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE BACK DOOR GLASS (REAR WINDOW DEFOGGER WIRE)  (See REMOVAL  )

      OK: Go to Next Step

  11. CHECK HARNESS AND CONNECTOR (REAR WINDOW DEFOGGER - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R15-1 - Body ground Always Below 1 Ω

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Rear Window Defogger)
      Fig 9: Identifying R16 Rear Window Defogger Connector Terminal
      G06029029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  12. REPLACE RADIO SETTING CONDENSER
    1. Replace the radio setting condenser.
  13. CHECK REAR WINDOW DEFOGGER SYSTEM
    1. Turn the ignition switch to ON, press the rear window defogger switch, and check that the window defogger operates (See ON-VEHICLE INSPECTION  ).

      Result

      RESULT CHART

      Result Proceed to
      The window defogger system operates normally A
      The window defogger system operate does not normally B

      B: REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY  (See AIR CONDITIONING AMPLIFIER )

      A: END
