Parts Location

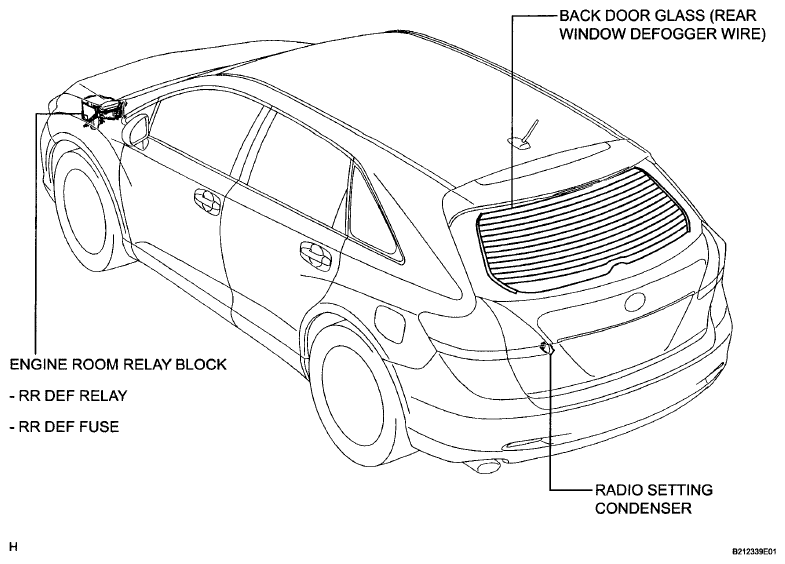

Fig 1: Identifying Window Defogger System Parts Location (1 Of 2)
G06029015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

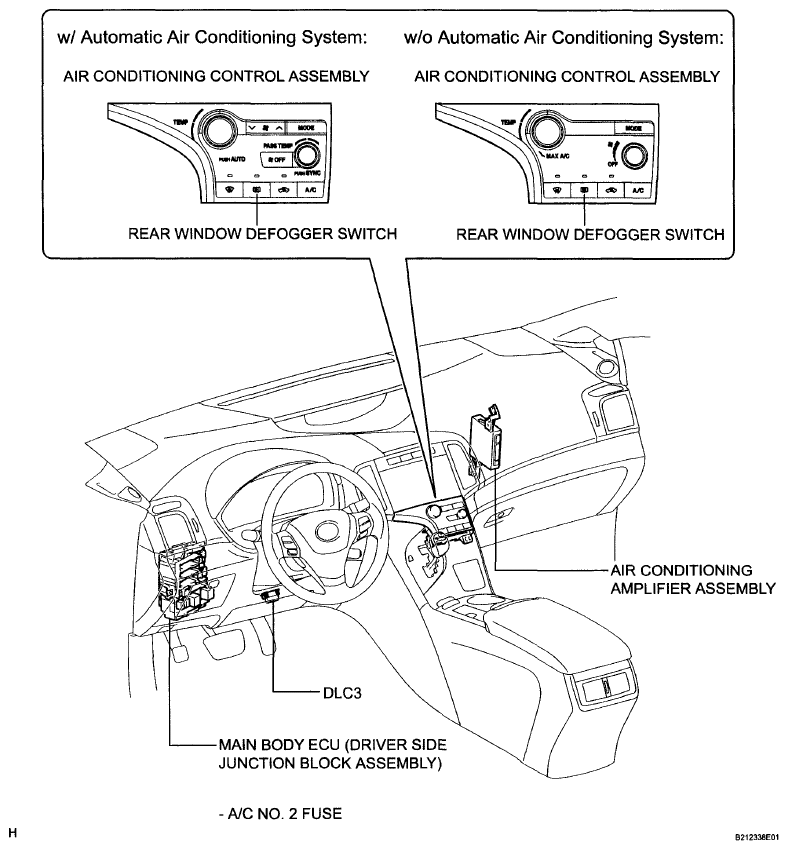

Fig 2: Identifying Window Defogger System Parts Location (2 Of 2)
G06029016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
