Quarter Window Glass: Removal

HINT:

• The front side fix window assembly can be reused. When installing the window, if any of the clips on the quarter window glass are broken, butyl tape can be used to support the glass until the applied adhesive hardens.
• When using butyl tape to temporarily secure the window, make sure that the butyl tape is not applied exactly at the original clip location. If the butyl tape is applied exactly at the clip location, it will cause the window to protrude
• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. REMOVE REAR DOOR SCUFF PLATE  (See REMOVAL )
2. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP  (See REMOVAL )
3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)  (See REMOVAL )
4. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
5. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
6. REMOVE DECK SIDE TRIM BOX LH  (See REMOVAL )
7. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
8. REMOVE DECK SIDE TRIM BOX RH  (See REMOVAL )
9. REMOVE NO. 1 DECK BOARD  (See REMOVAL )
10. REMOVE REAR SEAT SUB FLOOR PANEL ASSEMBLY  (See REMOVAL )
11. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
12. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)  (See REMOVAL )
13. REMOVE REAR SEAT INNER TRACK BRACKET COVER (for LH Side)  (See REMOVAL )
14. REMOVE REAR SEAT OUTER TRACK BRACKET COVER (for LH Side)  (See REMOVAL )
15. DISCONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY (for LH Side)  (See REMOVAL )
16. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)  (See REMOVAL )
17. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)  (See REMOVAL )
18. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)  (See REMOVAL )
19. REMOVE REAR SEAT INNER TRACK BRACKET COVER (for RH Side)  (See REMOVAL )
20. REMOVE REAR SEAT OUTER TRACK BRACKET COVER (for RH Side)  (See REMOVAL )
21. DISCONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (for RH Side)  (See REMOVAL )
22. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)  (See REMOVAL )
23. REMOVE RECLINING REMOTE CONTROL BEZEL  (See REMOVAL )
24. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REMOVAL )
25. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY  (See REMOVAL )
26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)  (See REMOVAL )
27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)  (See REMOVAL )
28. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY  (See REMOVAL )
29. REMOVE QUARTER WINDOW ASSEMBLY
    1. Apply protective tape to the outer surface of the vehicle body to prevent scratches.

       Text in Illustration

       ILLUSTRATION LEGEND



       *1	Protective Tape

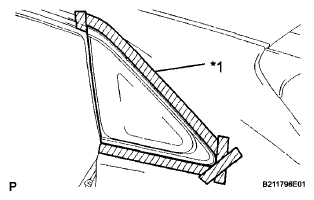

       Fig 1: Applying Protective Tape To Outer Surface Of Vehicle Body

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place matchmarks on the quarter window assembly and vehicle body on the locations indicated in the illustration.

       Text in Illustration

       ILLUSTRATION LEGEND



       *1

       Matchmark

       HINT:

       Do not allow the piano wire to interfere with the clips.

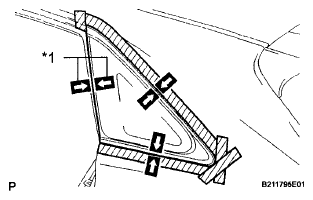

       Fig 2: Identifying Matchmarks On Quarter Window Glass And Vehicle Body

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pass a piano wire between the vehicle body and glass from the interior as shown in the illustration.

       HINT:

       Ensure not to interfere with the clips when passing the piano wire.

       Text in Illustration

       ILLUSTRATION LEGEND



       *1	Piano Wire

    4. Tie both wire ends to wooden blocks or similar objects that can serve as handles.
       NOTE: When separating the quarter window assembly from the vehicle, be careful not to damage the paint or interior and exterior ornaments.

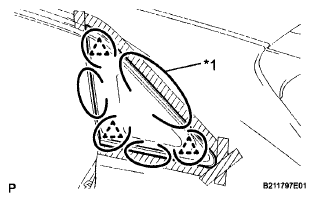

       Fig 3: Passing Piano Wire Between Vehicle Body And Glass From Interior

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Cut off the adhesive by pulling the piano wire around the quarter window assembly.
       NOTE: Leave as much adhesive on the vehicle body as possible when cutting through the adhesive.
    6. Disengage the 3 clips.
    7. Using suction cups, remove the glass.
       NOTE: Be careful not to drop the glass.

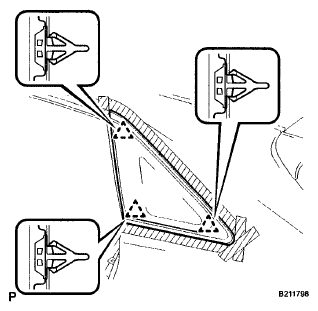

       Fig 4: Identifying Quarter Window Glass Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
30. CLEAN VEHICLE BODY
    1. Clean and shape the contact surfaces of the vehicle body.

       Text in Illustration

       ILLUSTRATION LEGEND



       *1	Adhesive
       *2	Vehicle Body

       1. Using a knife, cut away excess adhesive on the contact surfaces of the vehicle body as shown in the illustration.
          NOTE: Be careful not to damage the vehicle body.

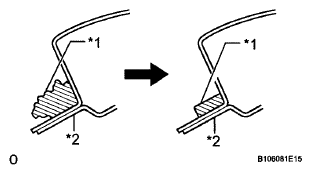

          Fig 5: Identifying Contact Surfaces Of Vehicle Body

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

          HINT:

          Leave as much adhesive on the vehicle body as possible.

    2. Clean the contact surfaces of the vehicle body with a piece of cloth saturated with cleaner.

       HINT:

       Even if all the adhesive has been removed, clean the vehicle body.
