System Diagram

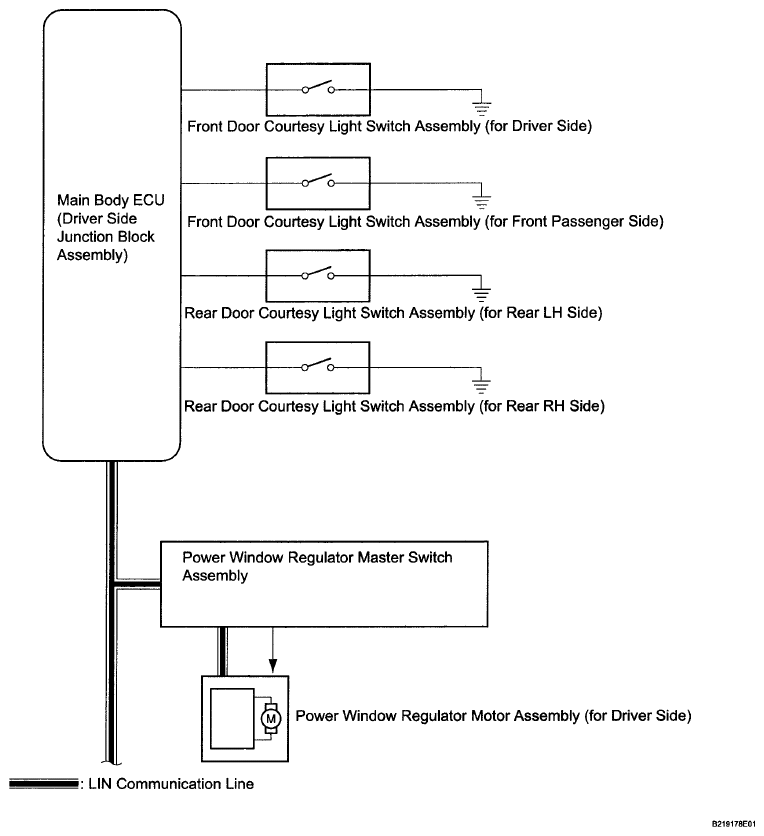

Fig 1: Power Window Control System Diagram (1 Of 2)
G06028847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

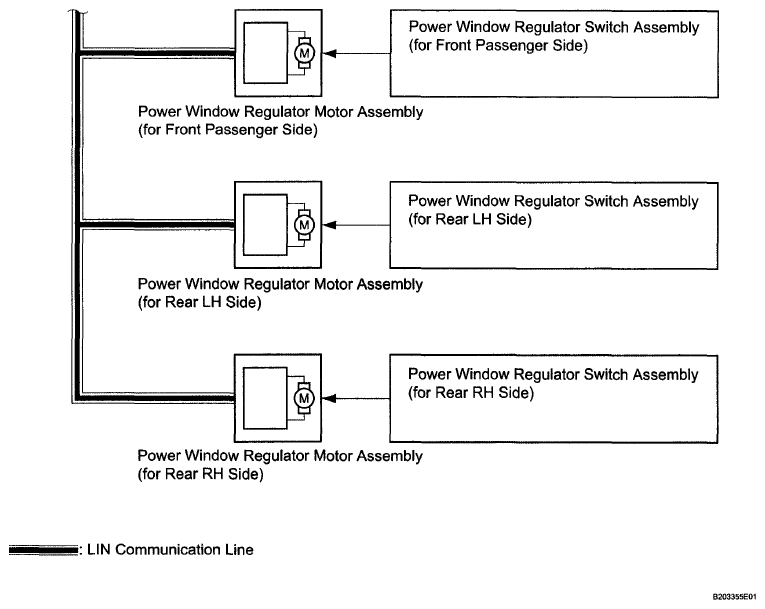

Fig 2: Power Window Control System Diagram (2 Of 2)
G06028848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Transmitting ECU Receiving ECU Signal Communication Method
Power window regulator master switch assembly Power window regulator motor assembly (for driver side) Power window auto up and down signal LIN
  • Power window regulator motor assembly (for front passenger side)
  • Power window regulator motor assembly (for rear LH side)
  • Power window regulator motor assembly (for rear RH side)
 Power window remote up and down signal LIN
Main body ECU (driver side junction block assembly)
  • Power window regulator motor assembly (for driver side)
  • Power window regulator motor assembly (for front passenger side)
  • Power window regulator motor assembly (for rear LH side)
  • Power window regulator motor assembly (for rear RH side)
 Power window operation permission signal LIN
