Front Passenger Side Power Window Switch: Installation

  1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Engage the 2 claws to install the power window regulator switch assembly.
      Fig 1: Identifying Power Window Regulator Switch Assembly With Claws
      G06028907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
    1. Connect the connector.
    2. Engage the 2 clips and 4 claws, and install the power window regulator switch assembly with front door armrest base panel.

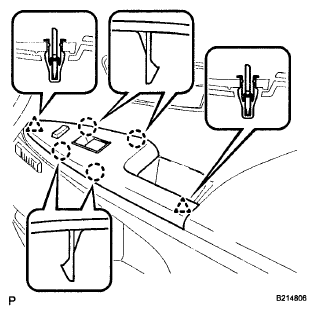

      Fig 2: Identifying Power Window Regulator Switch Assembly With Front Door Armrest Base Panel
      G06028911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
