Transfer Assembly: Components

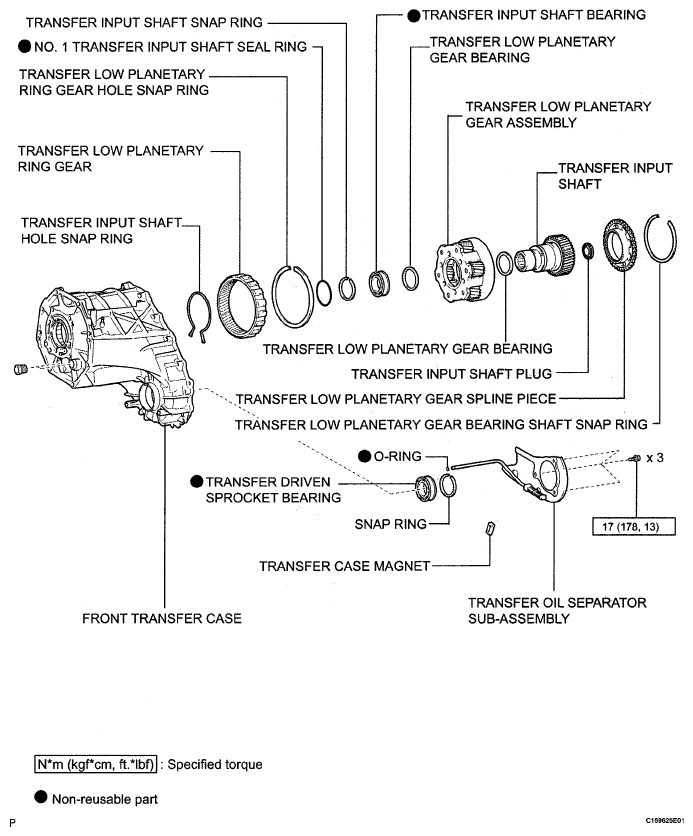

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

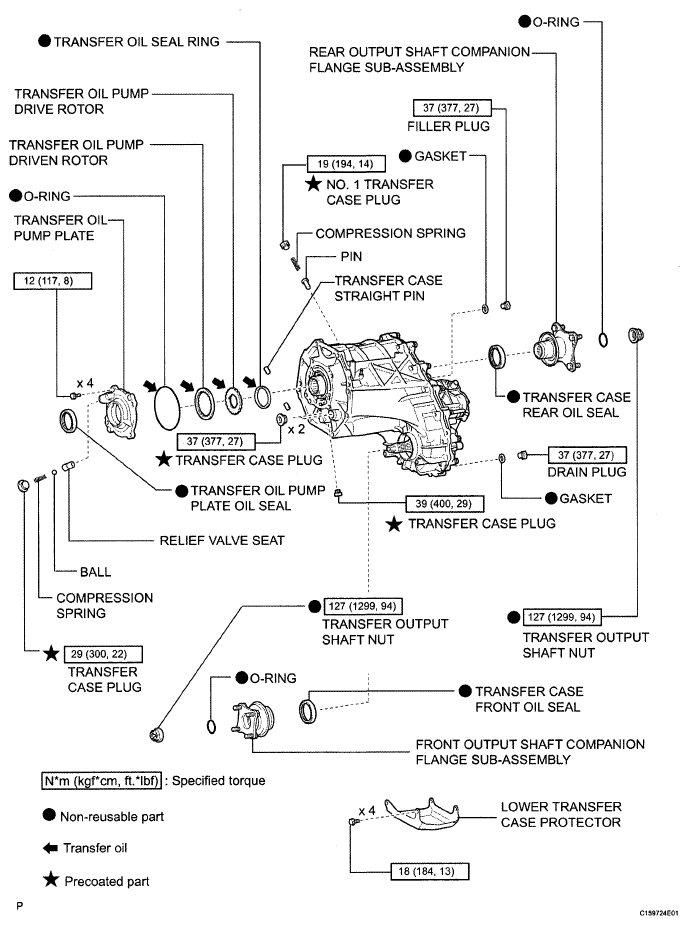

Fig 2: Identifying Transfer Assembly Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Transfer Assembly Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

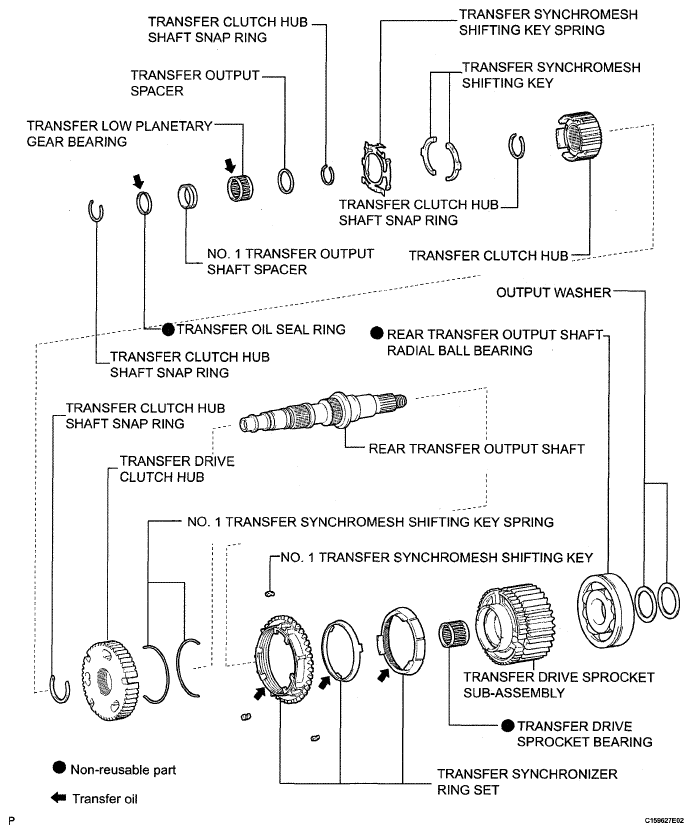

Fig 4: Identifying Transfer Assembly Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Transfer Assembly Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Transfer Assembly Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Transfer Assembly Replacement Components With Torque Specifications (7 Of 10)

Fig 8: Identifying Transfer Assembly Replacement Components With Torque Specification (8 Of 10)

Fig 9: Identifying Transfer Assembly Replacement Components With Torque Specifications (9 Of 10)

Fig 10: Identifying Transfer Assembly Replacement Components (10 Of 10)
