Tundra Base, 5.7 W
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Ignition System (3UR-FBE)
>>
Ignition System
>>
System Diagram
System Diagram

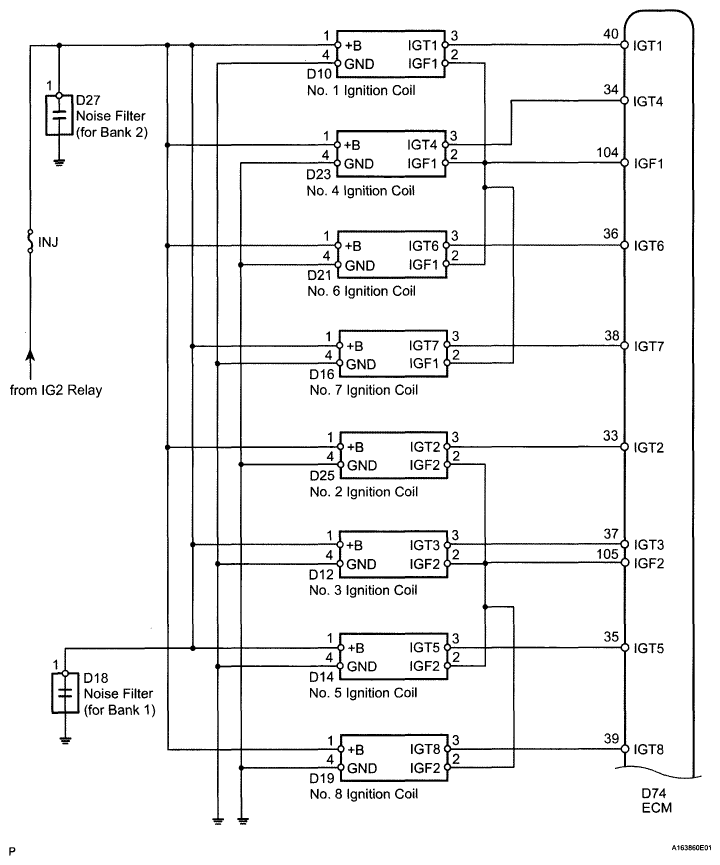

Fig 1: Ignition - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

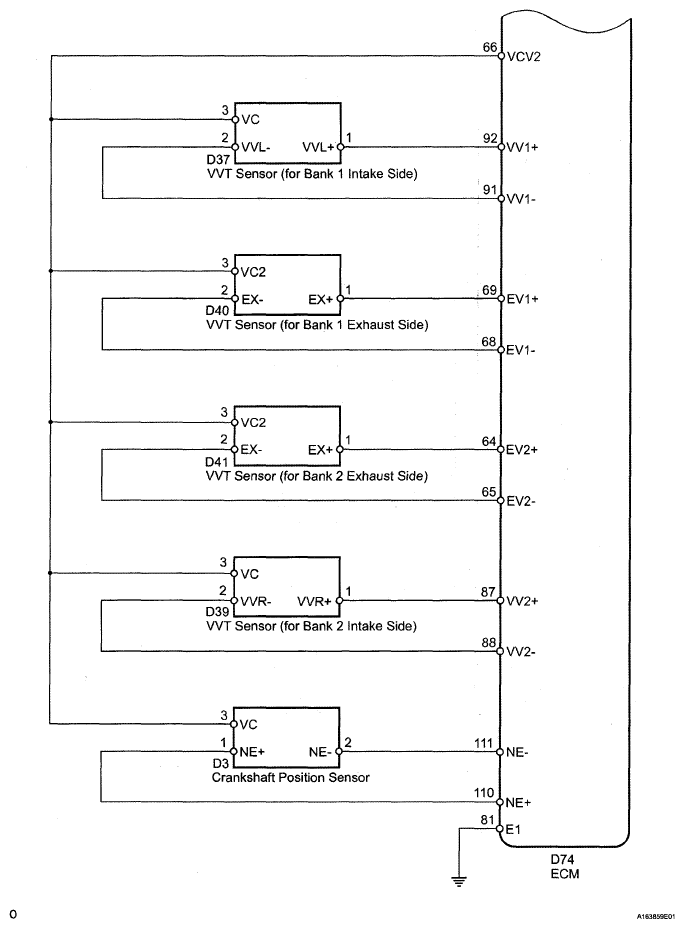

Fig 2: Ignition - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
