Tire Pressure Warning System: Notes

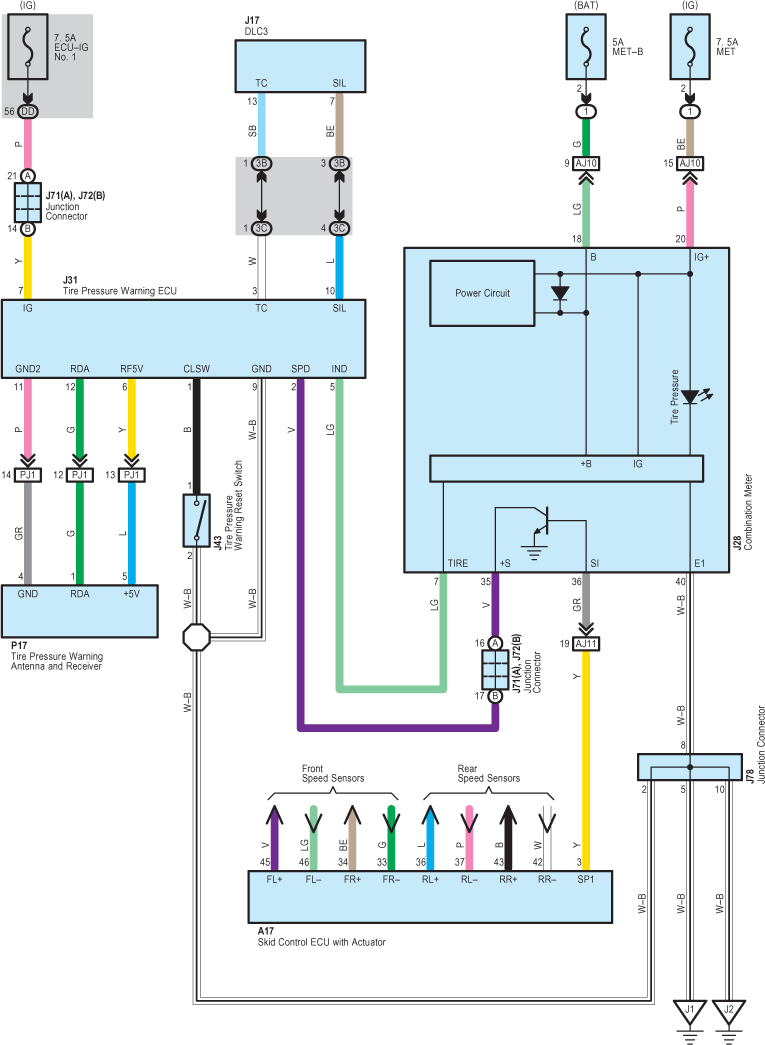

Fig 1: Tire Pressure Warning System - Circuit Diagram

G07624282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
