Rear Window Defogger: Notes

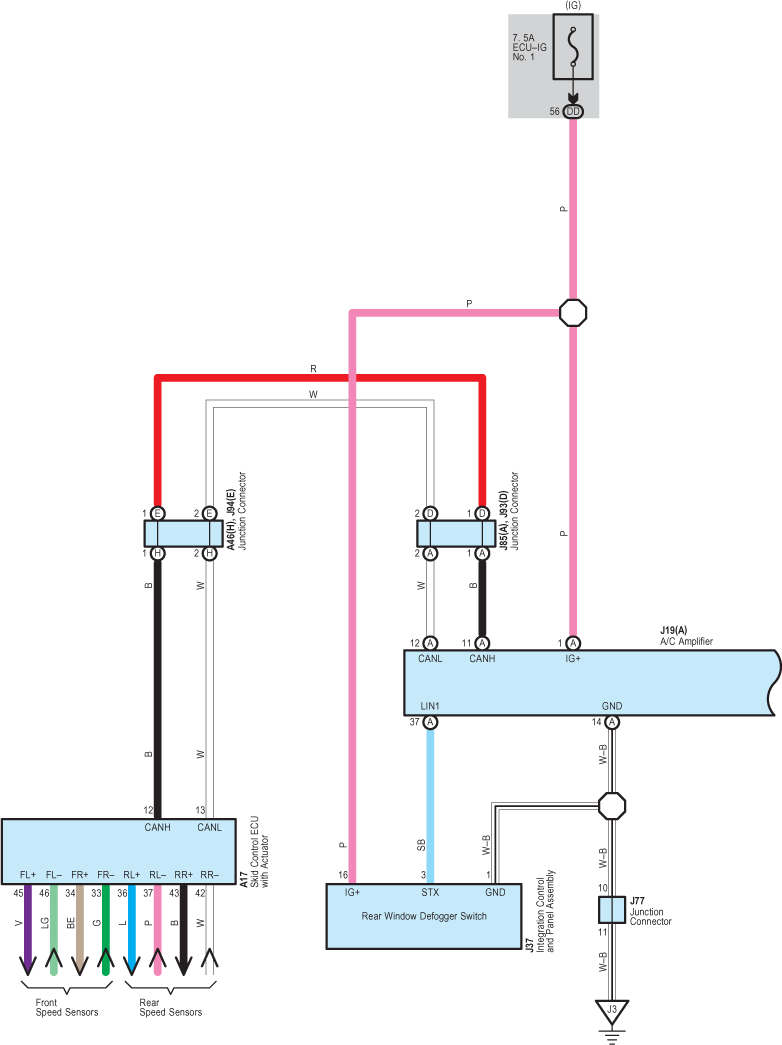

Fig 1: Rear Window Defogger - Circuit Diagram (1 Of 2)
G07624350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Window Defogger - Circuit Diagram (2 Of 2)
G07624351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
