Power Window: Notes

Fig 1: Power Window - Circuit Diagram (1 Of 3)
G07624330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

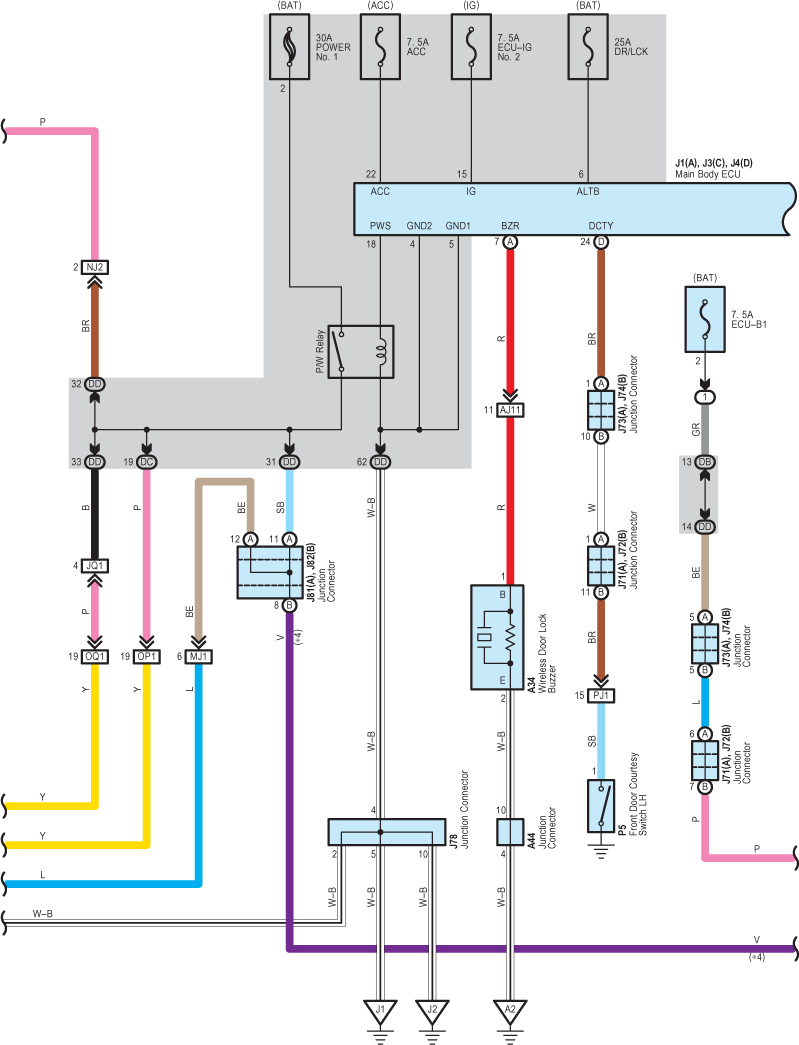

Fig 2: Power Window - Circuit Diagram (2 Of 3)
G07624331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Power Window - Circuit Diagram (3 Of 3)
G07624332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
