Accessory Meter: Notes

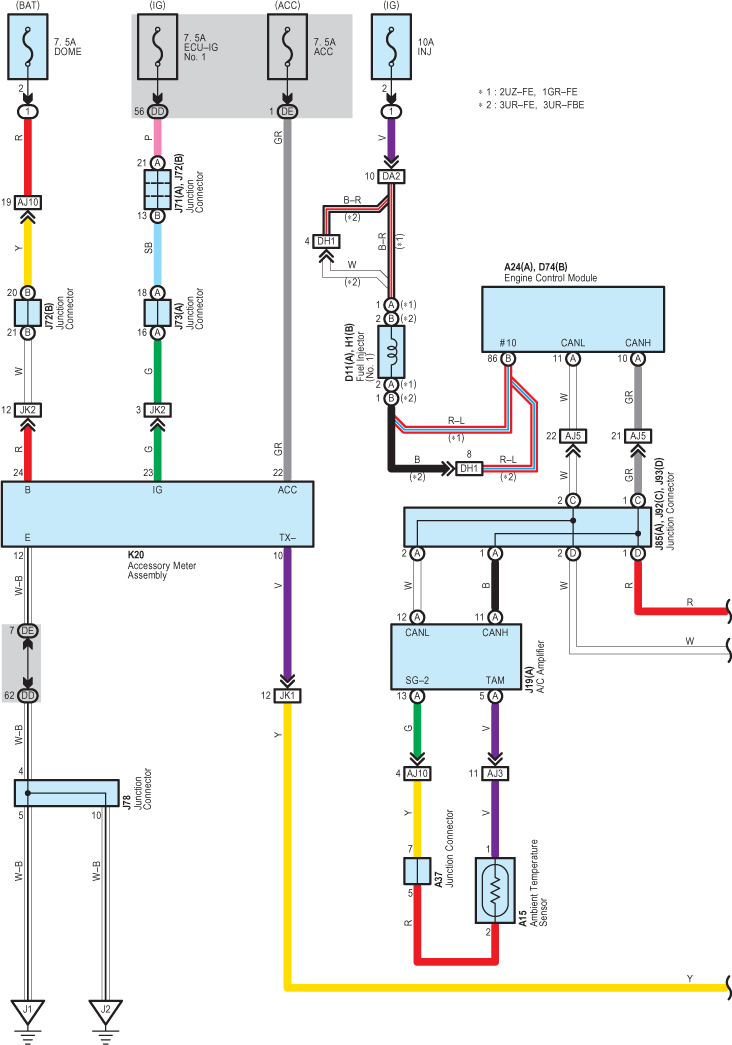

Fig 1: Accessory Meter - Circuit Diagram (1 Of 2)
G07624368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

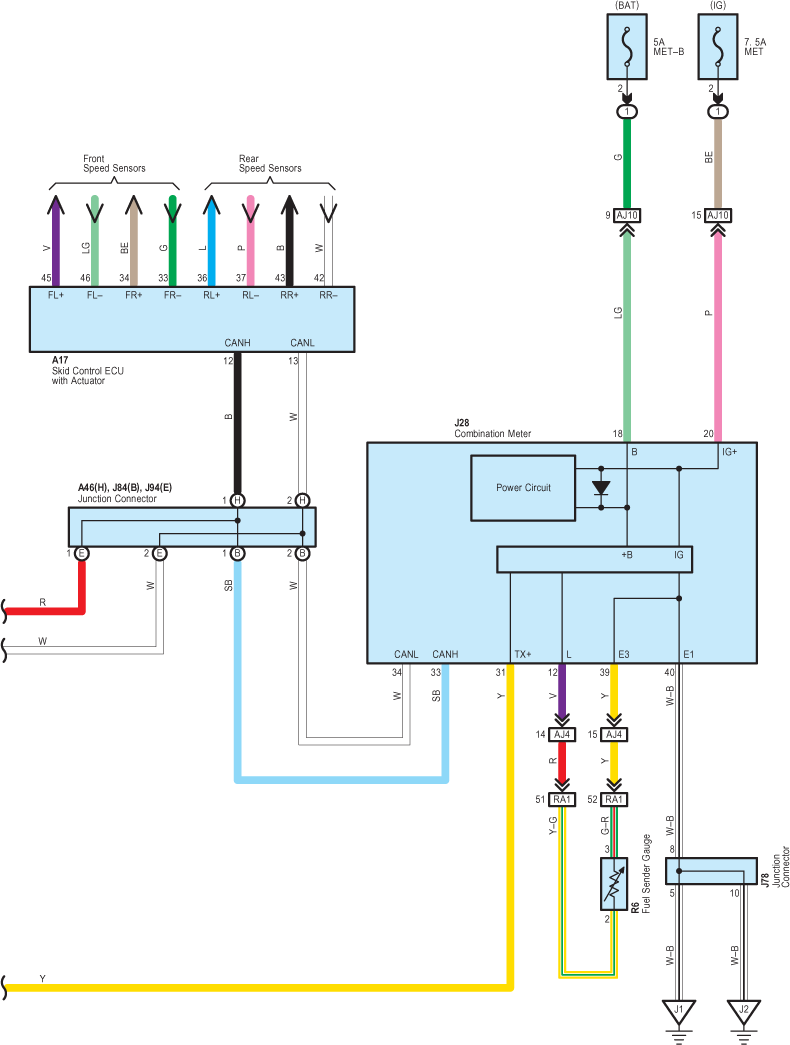

Fig 2: Accessory Meter - Circuit Diagram (2 Of 2)
G07624369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
