Steering Angle Sensor: Components

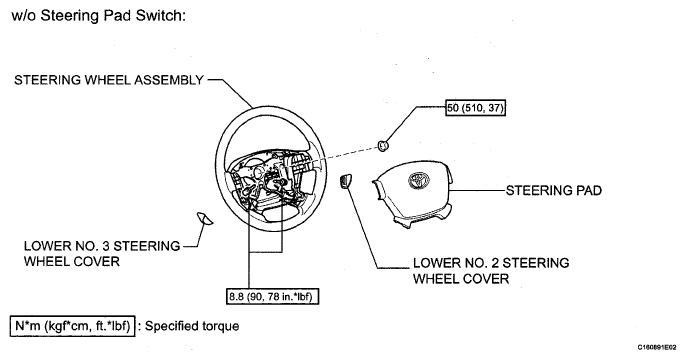

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specifications - W/O Steering Pad Switch
G05159871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

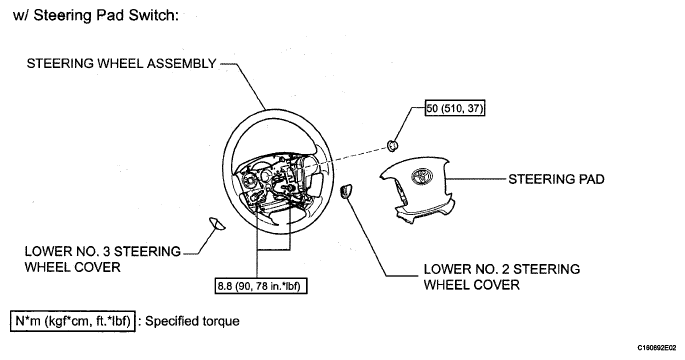

Fig 2: Identifying Steering Angle Sensor Replacement Components With Torque Specifications - W/ Steering Pad Switch (1 Of 2)
G05159872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

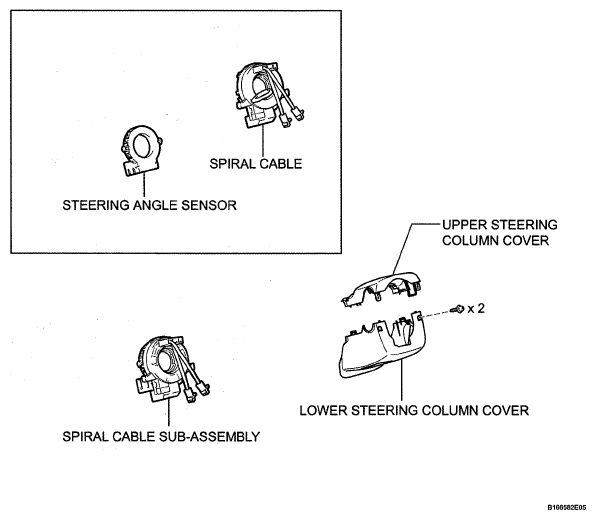

Fig 3: Identifying Steering Angle Sensor Replacement Components With Torque Specifications - W/ Steering Pad Switch (2 Of 2)
G05686752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
