Brake Actuator: Components

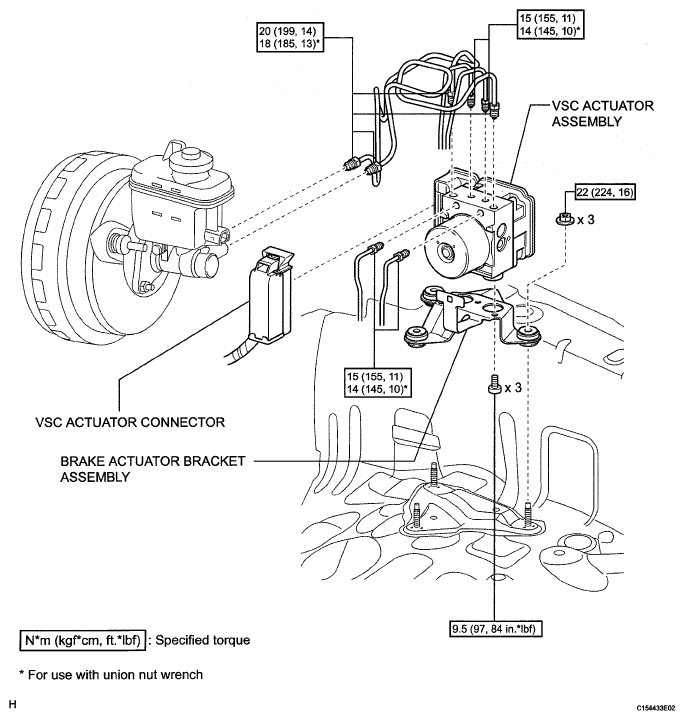

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications

G05686711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
