Rear Speed Sensor: Components

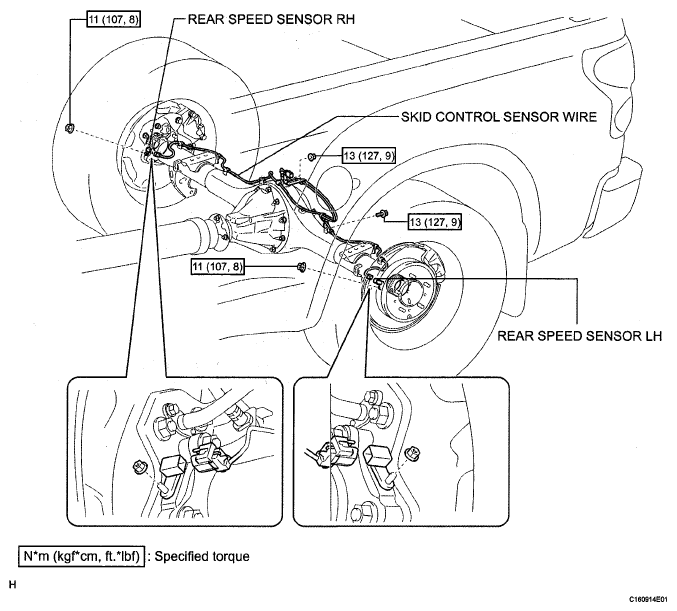

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications

G05159860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
