Fuel Injector: Components

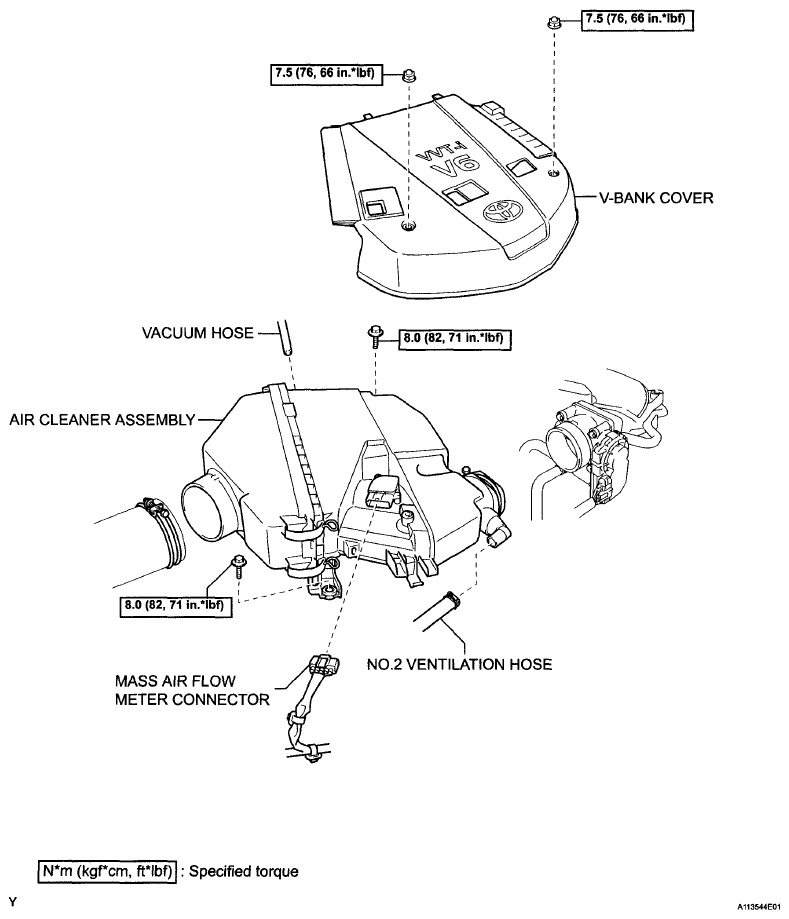

Fig 1: Fuel Injector Replacement Components (1 Of 2) With Torque Specifications
G06088507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

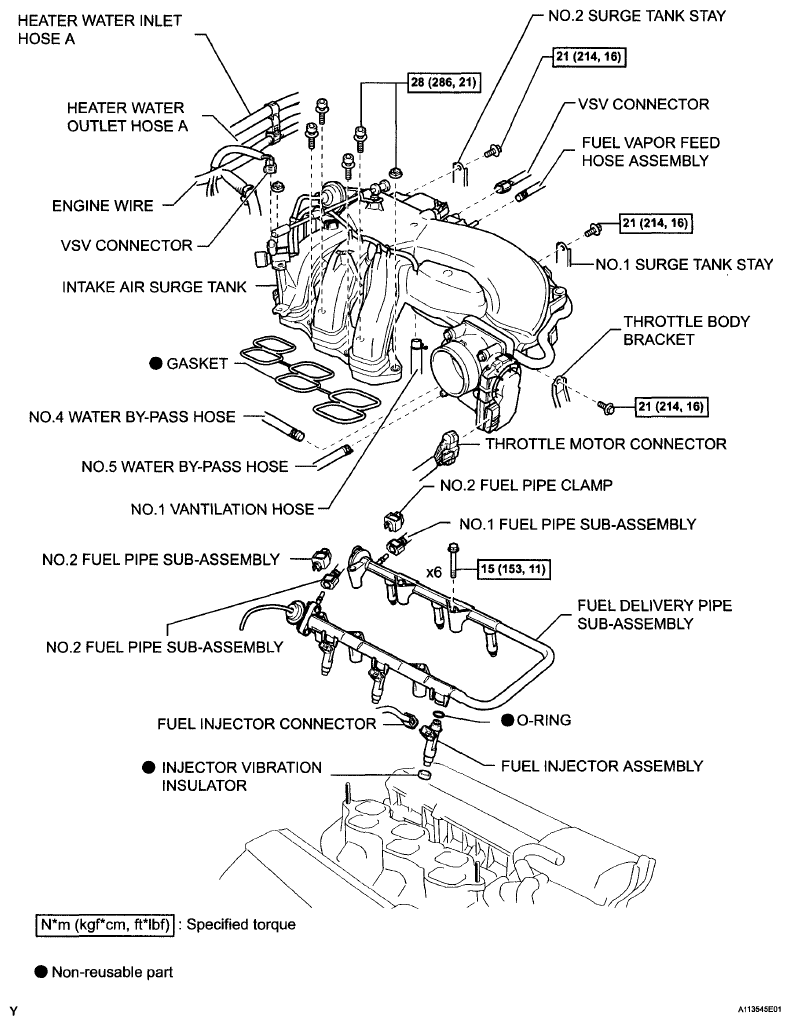

Fig 2: Fuel Injector Replacement Components (2 Of 2) With Torque Specifications
G06088508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
