Fuel Injector: Components

Fig 1: Identifying Fuel Injector Components (1 Of 3)
G05198406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Injector Components (2 Of 3)
G06081962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

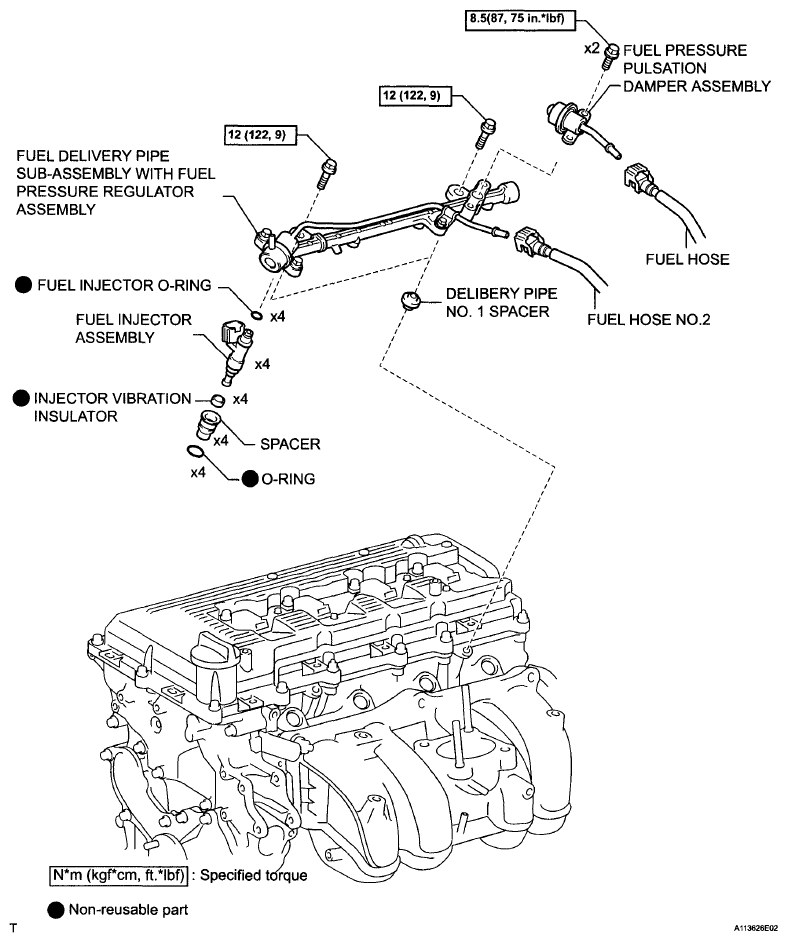

Fig 3: Identifying Fuel Injector Components (3 Of 3)
G06081884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
