Tacoma PreRunner, 2D Pickup
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Ignition System (2TR-FE)
>>
Ignition System
>>
System Diagram
System Diagram

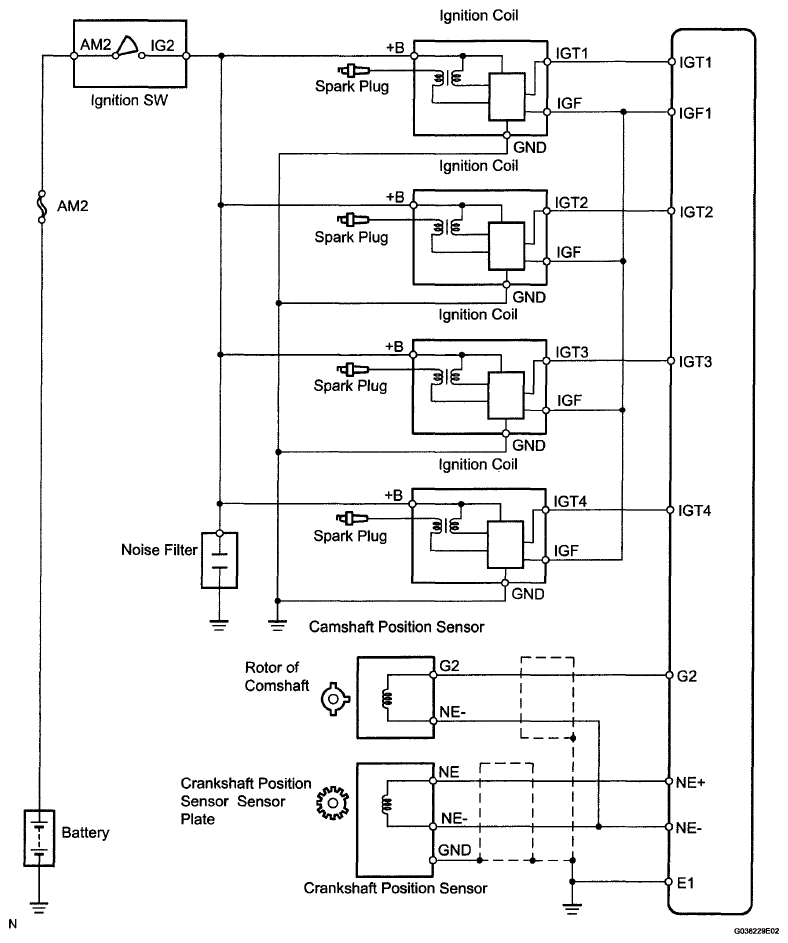

Fig 1: Ignition System - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
