Home >> Toyota >> 2009 >> Tacoma PreRunner, 2D Pickup >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2TR-FE) >> SFI System >> ECM Power Source Circuit >> Wiring Diagram

ECM Power Source Circuit: Wiring Diagram

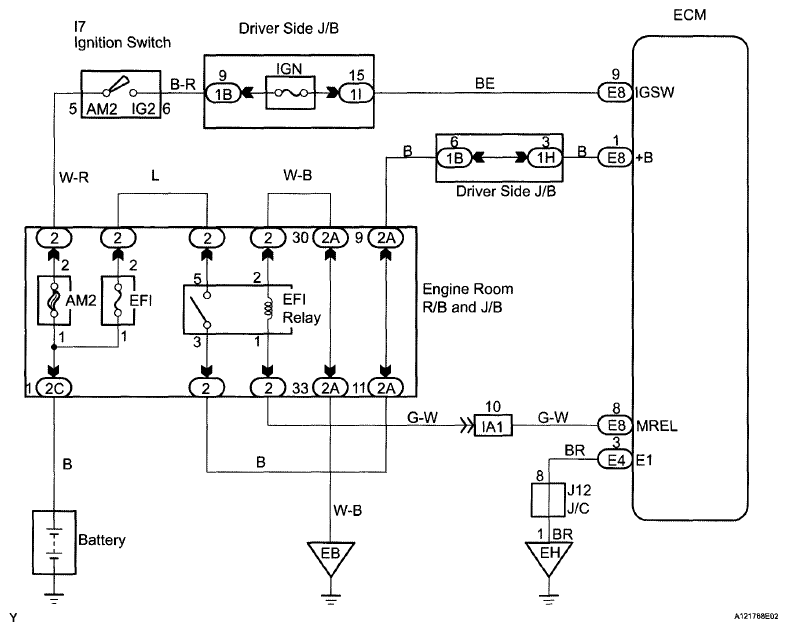

Fig 1: ECM Power Source Circuit - Wiring Diagram

G06080624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
