Horn System: Components

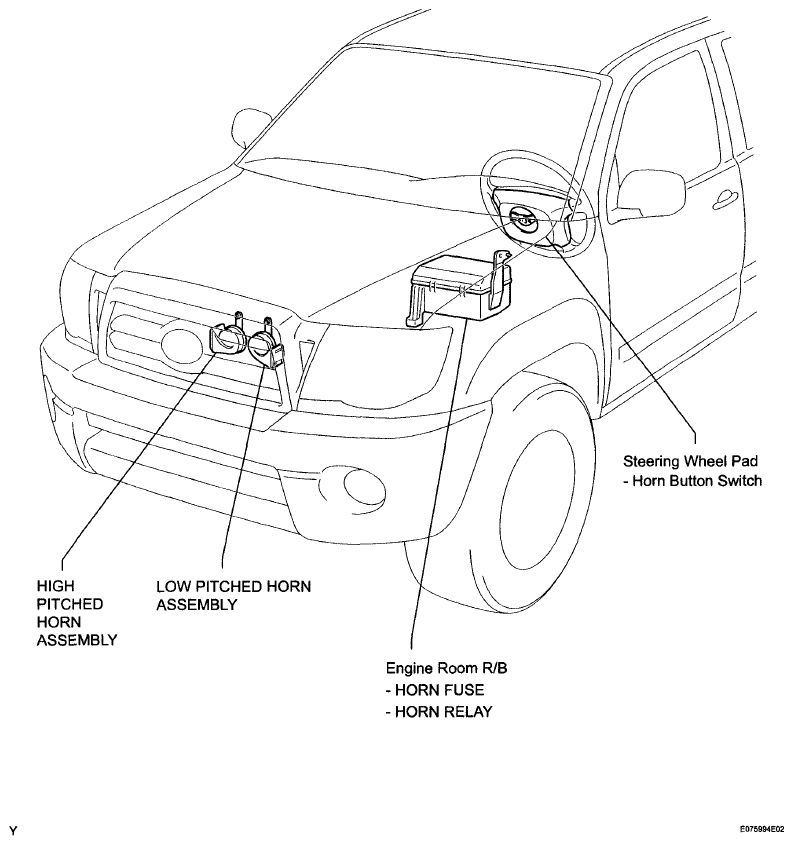

Fig 1: Identifying Horn System Components

G06087551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
