Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (4.0L)

G00364913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

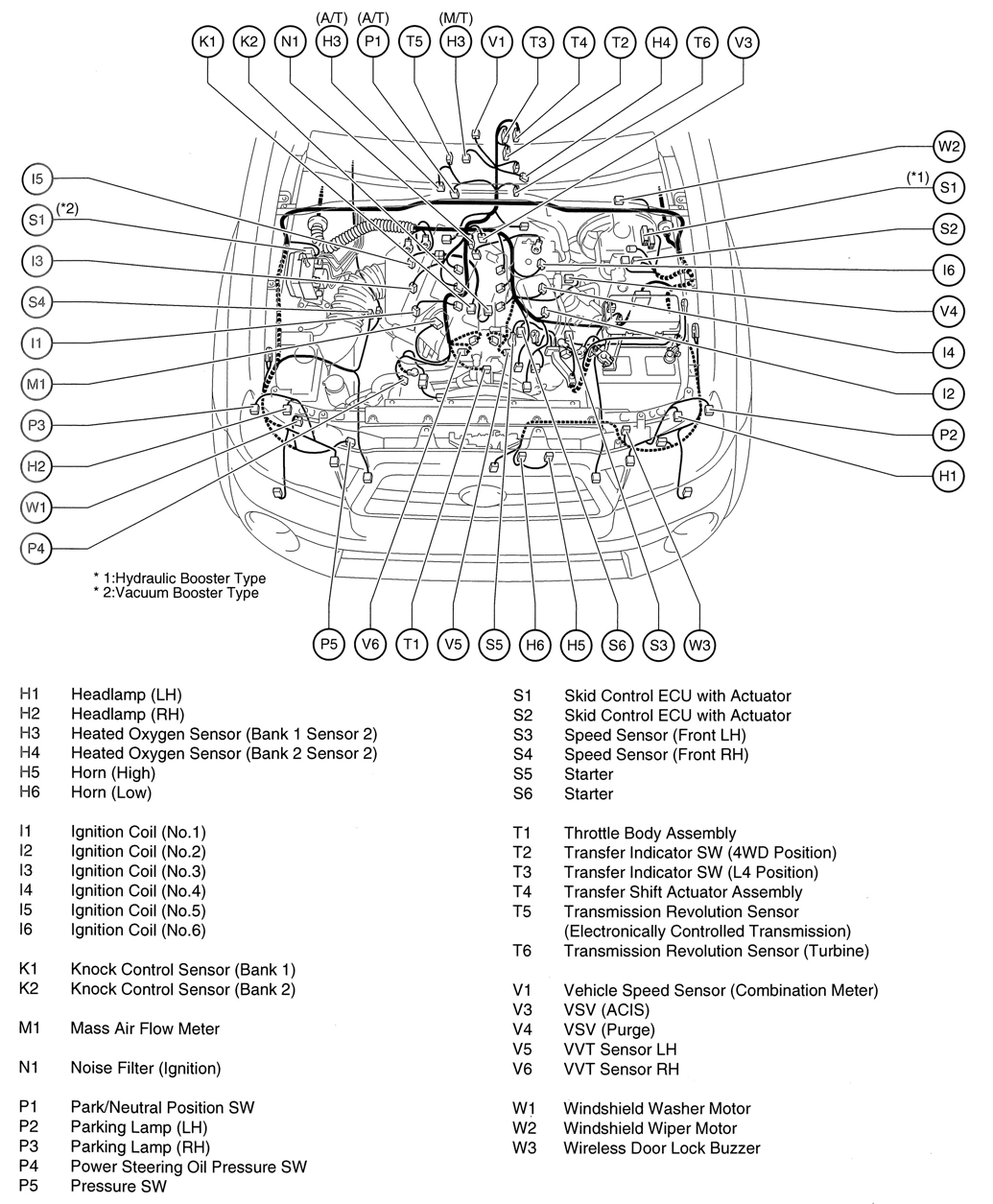

Fig 2: Engine Compartment (4.0L)

G00475601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment (2.7L)

G00364915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

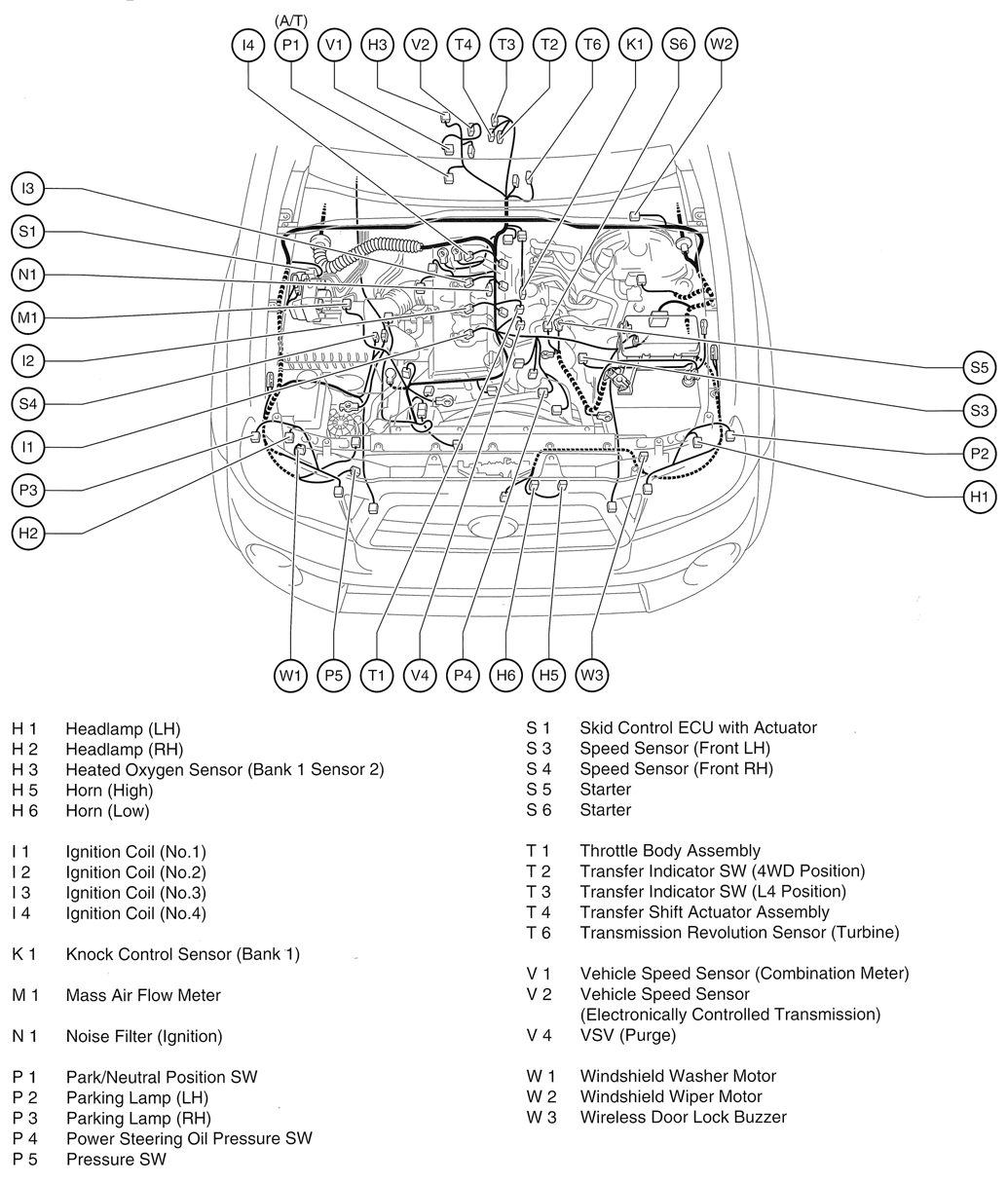

Fig 4: Engine Compartment (2.7L)

G00475602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

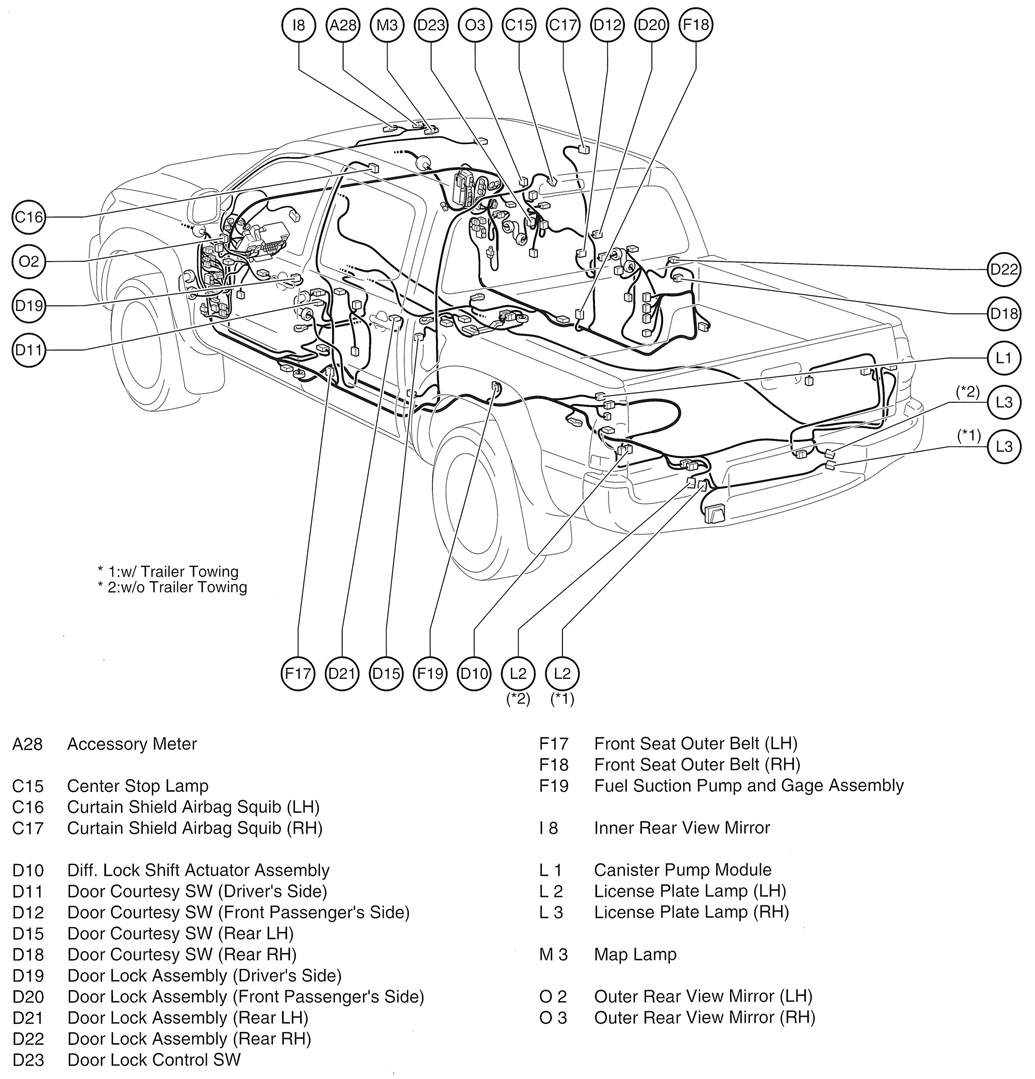

Fig 5: Vehicle Overview (Double Cab)

G00475610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

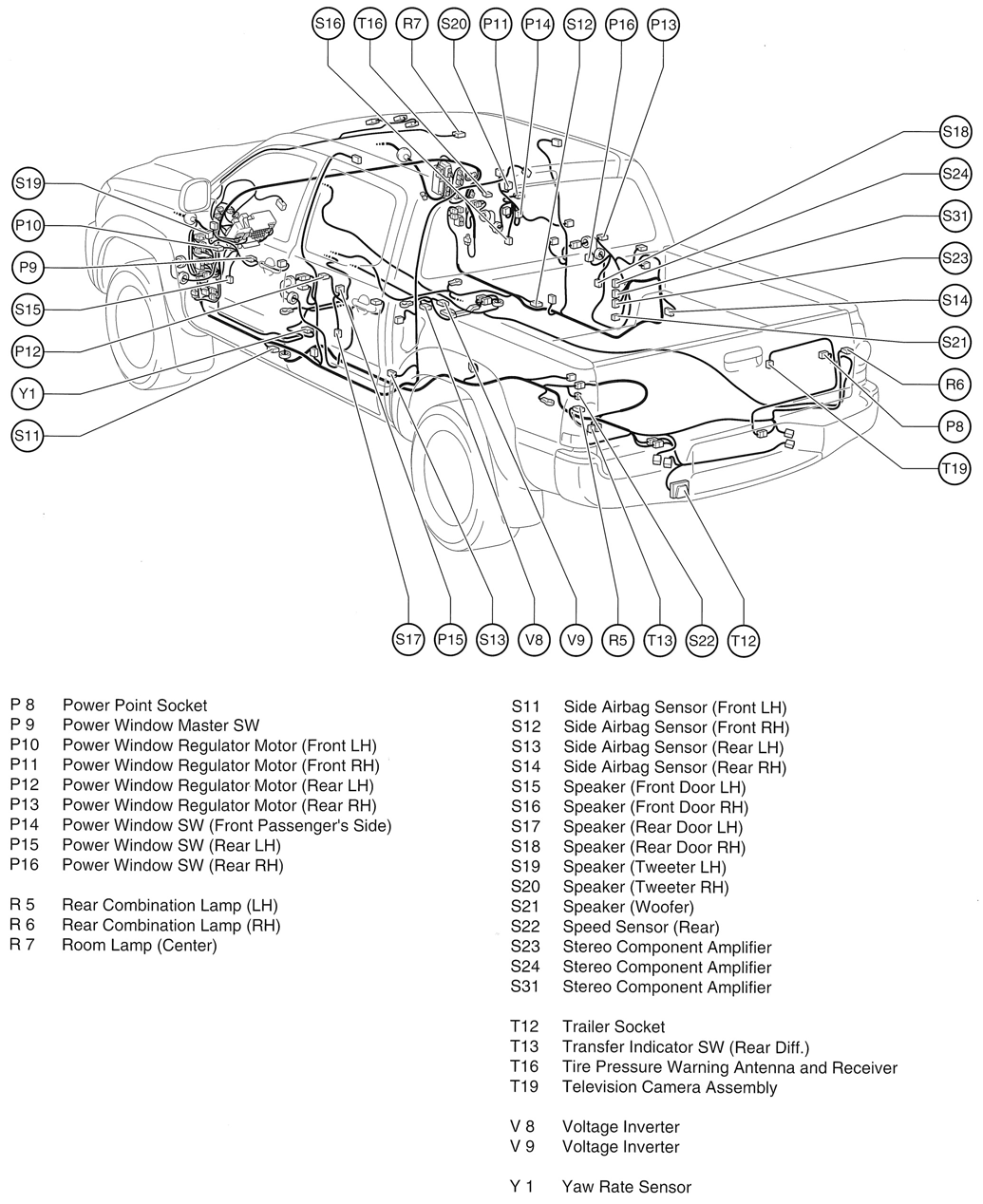

Fig 6: Vehicle Overview (Double Cab)

G00475611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

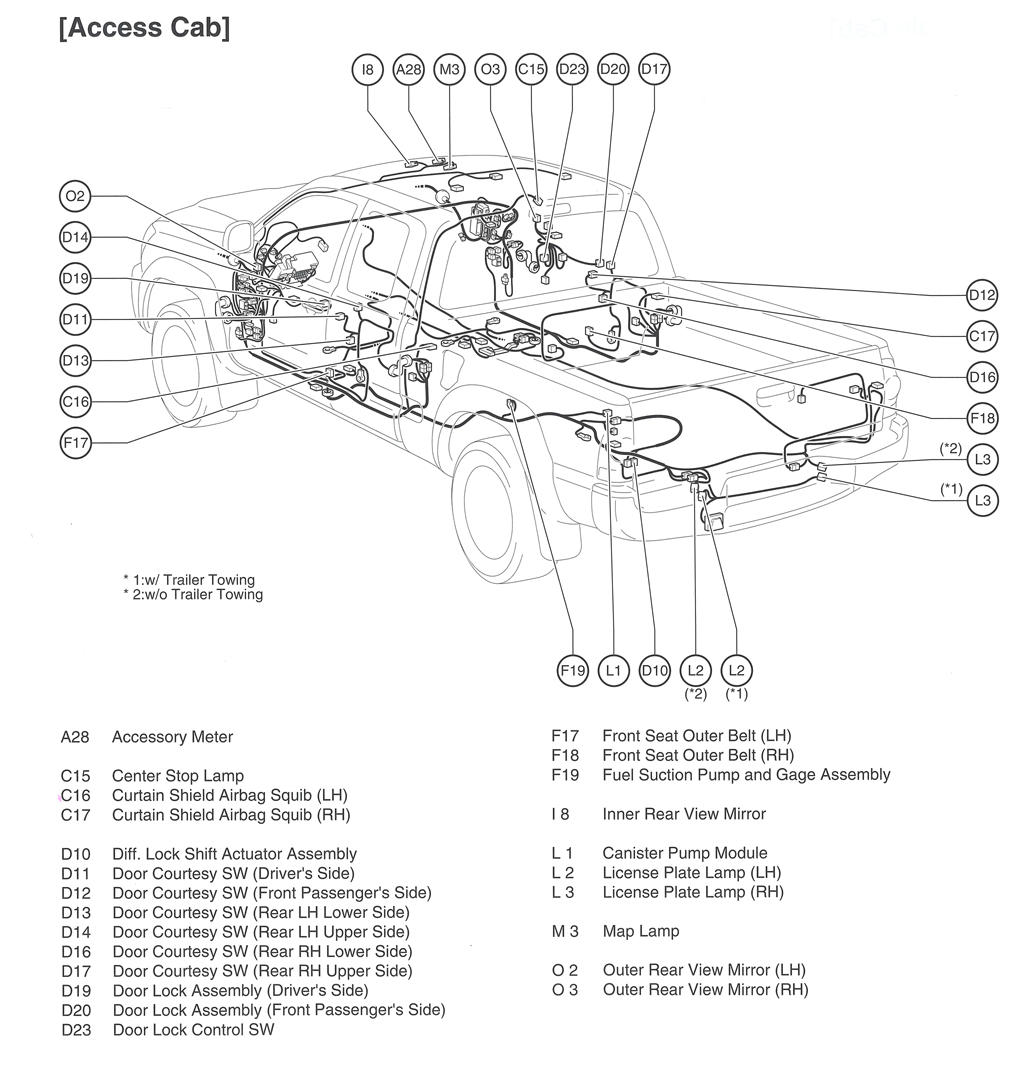

Fig 7: Vehicle Overview (Access Cab)

G00467192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

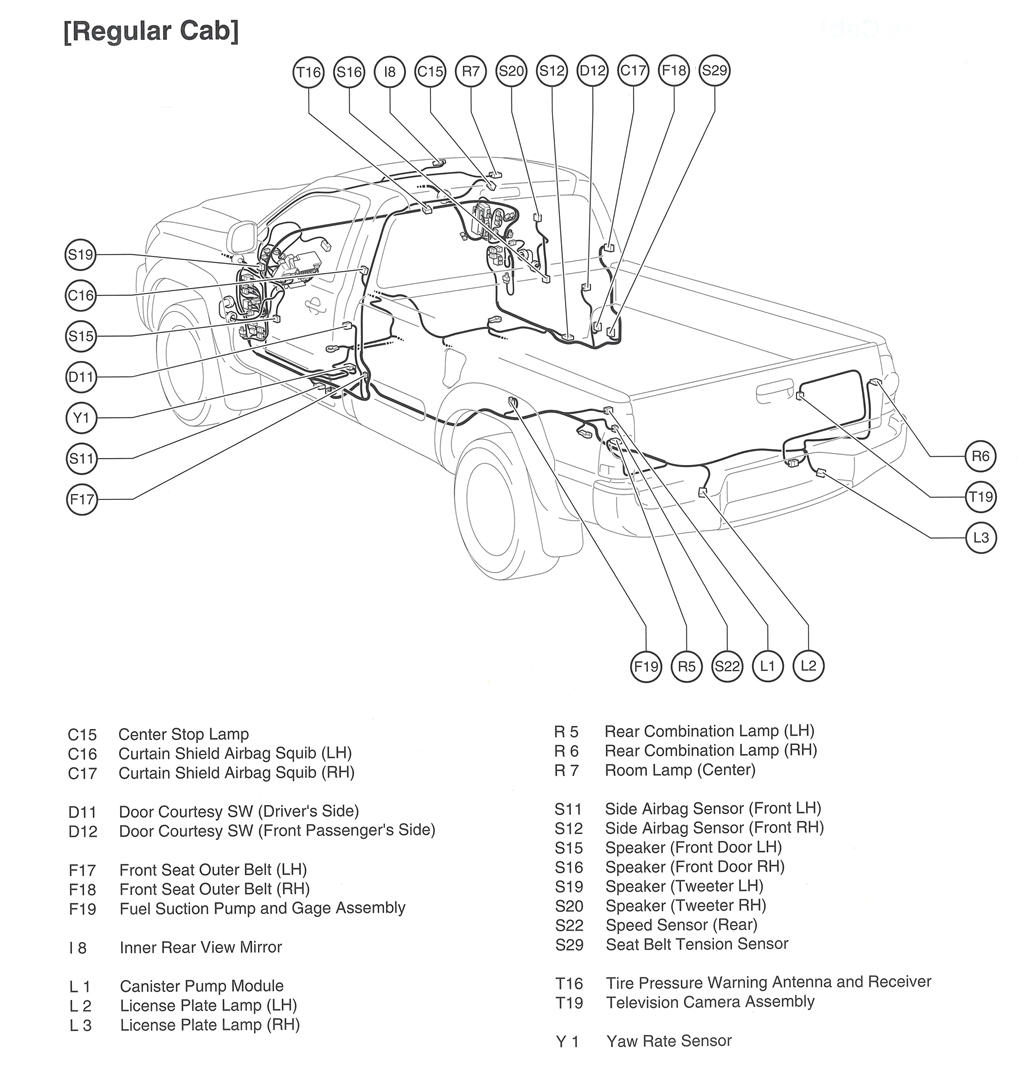

Fig 8: Vehicle Overview (Regular Cab)

G00467190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Front Seats (Bucket)

G00364923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

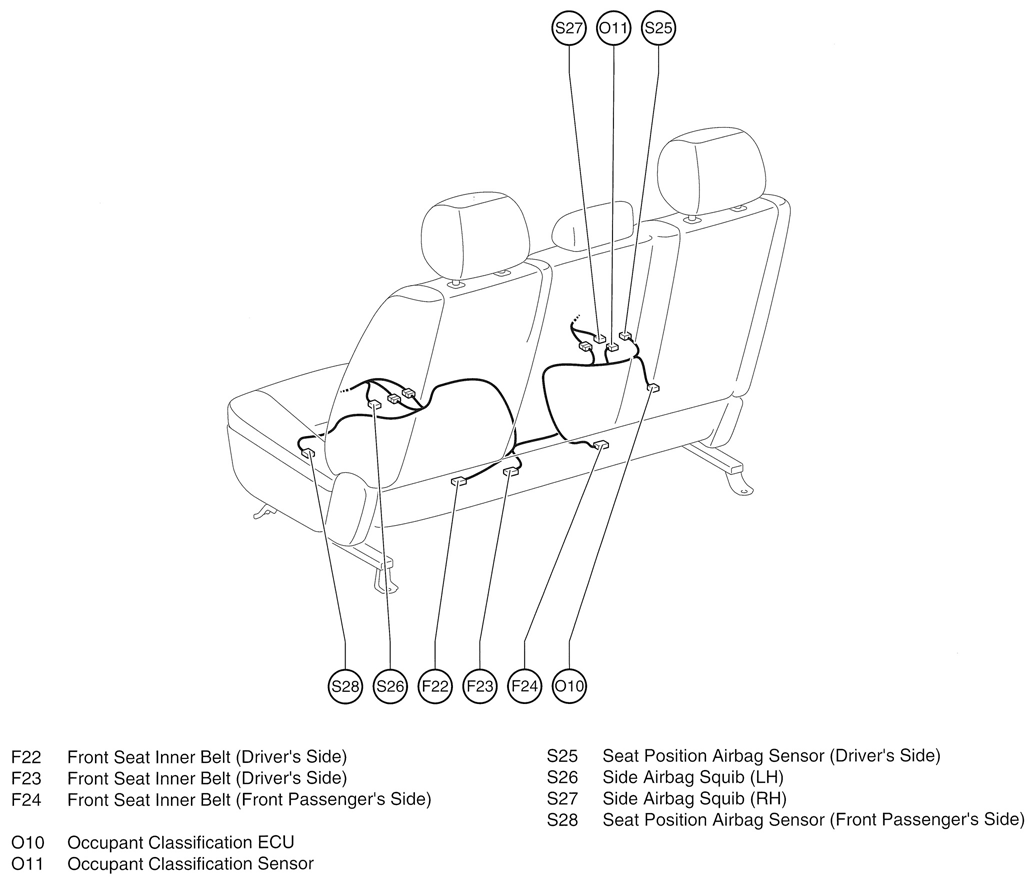

Fig 10: Front Seat (Bench)

G00475609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

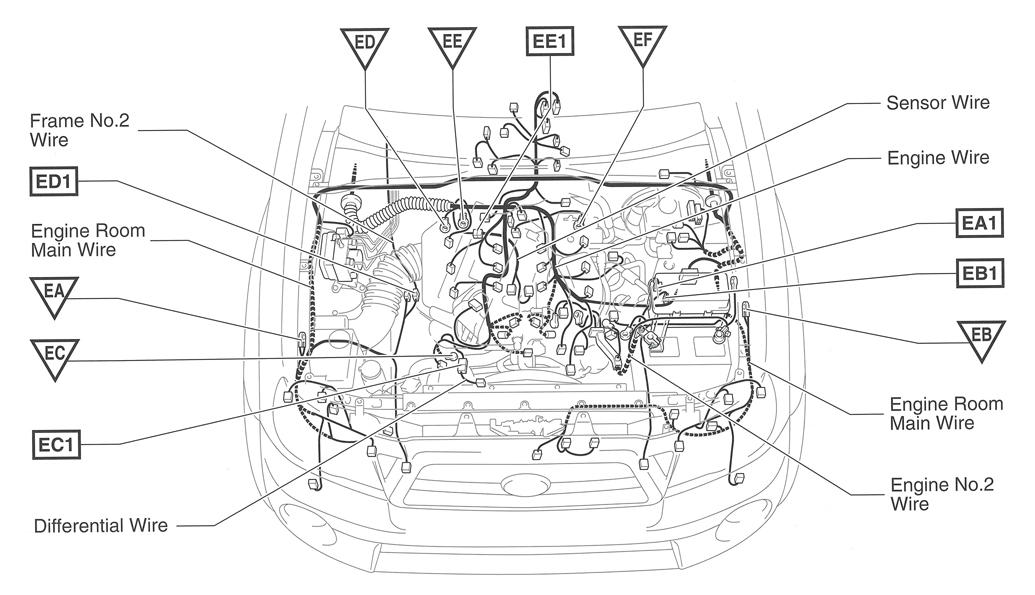

Fig 11: Engine Compartment (4.0L)

G00467189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment (2.7L)

G00364927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

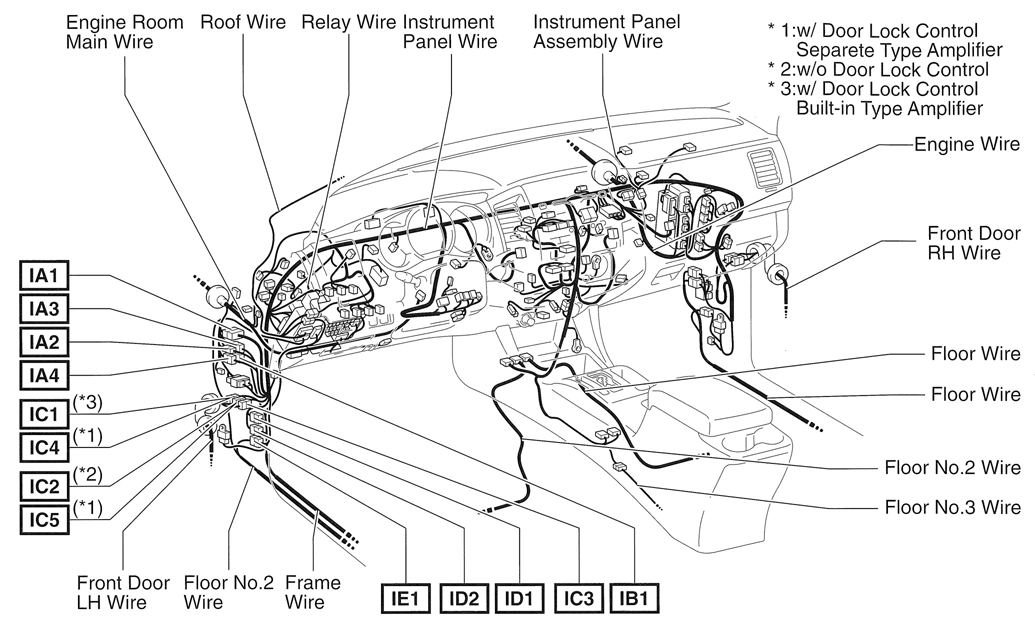

Fig 13: Dash

G00475599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

G00364930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

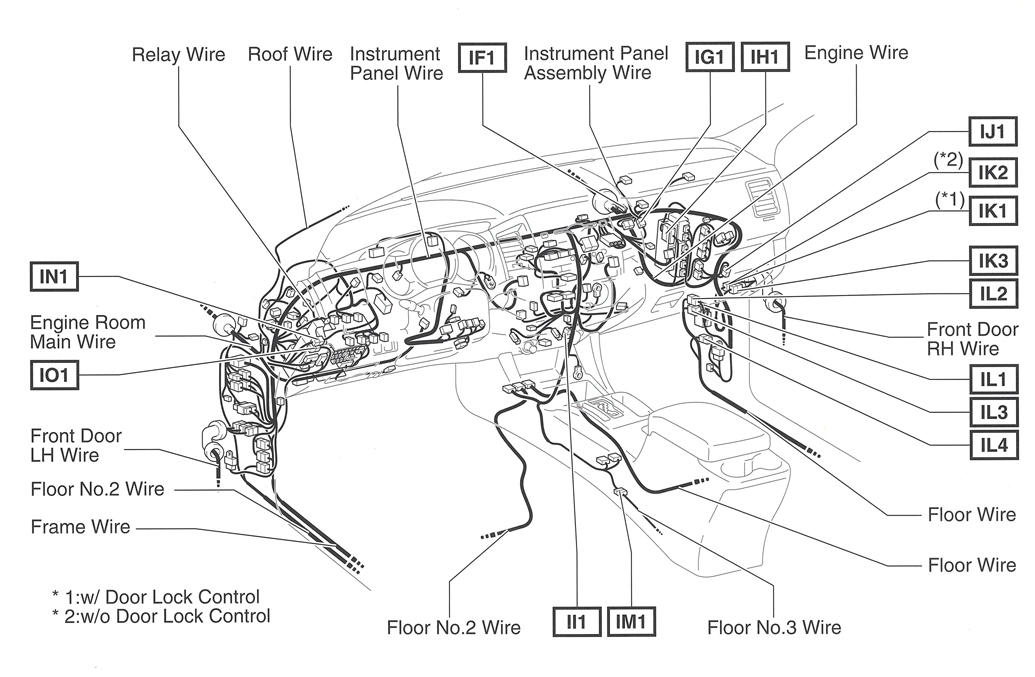

Fig 15: Dash

G00467187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

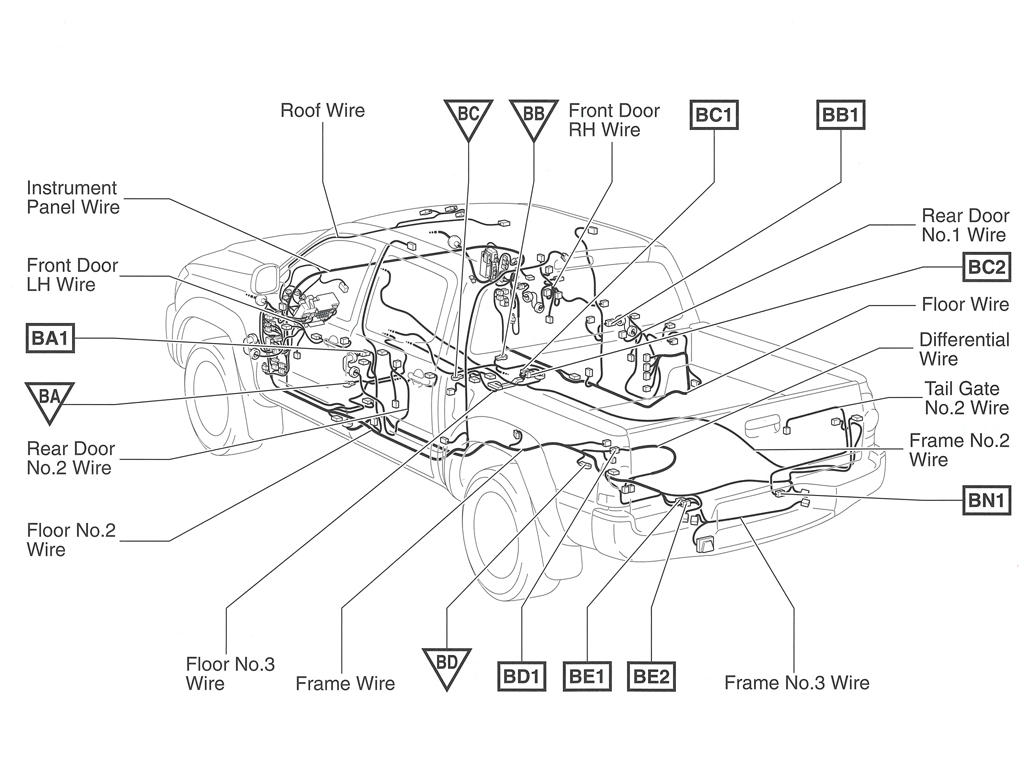

Fig 16: Vehicle Overview (Double Cab)

G00467186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

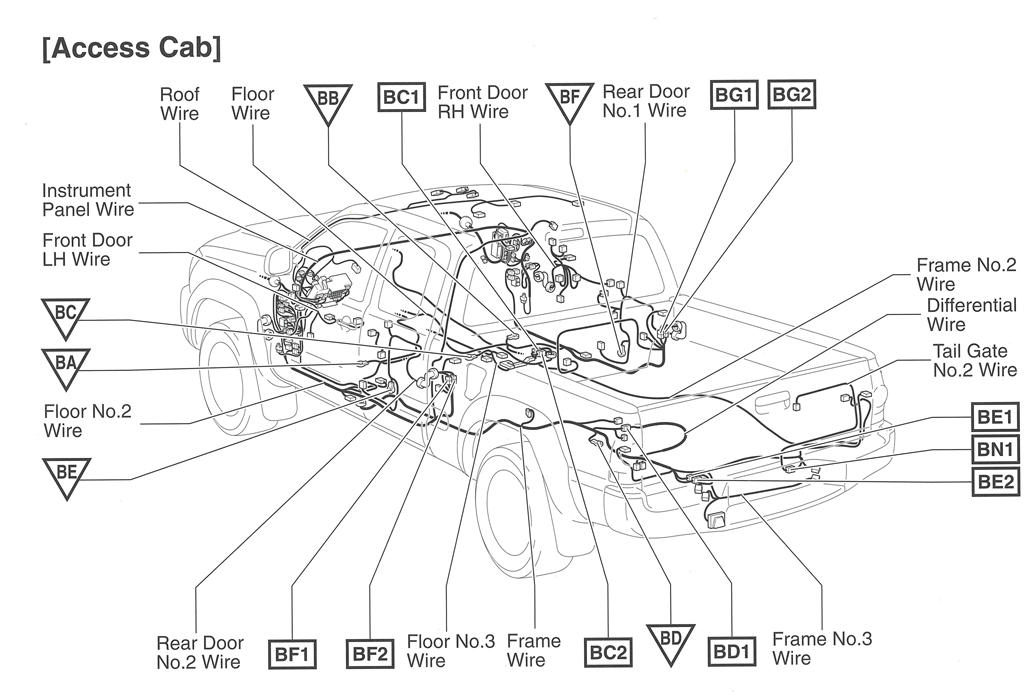

Fig 17: Vehicle Overview (Access Cab)

G00467185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

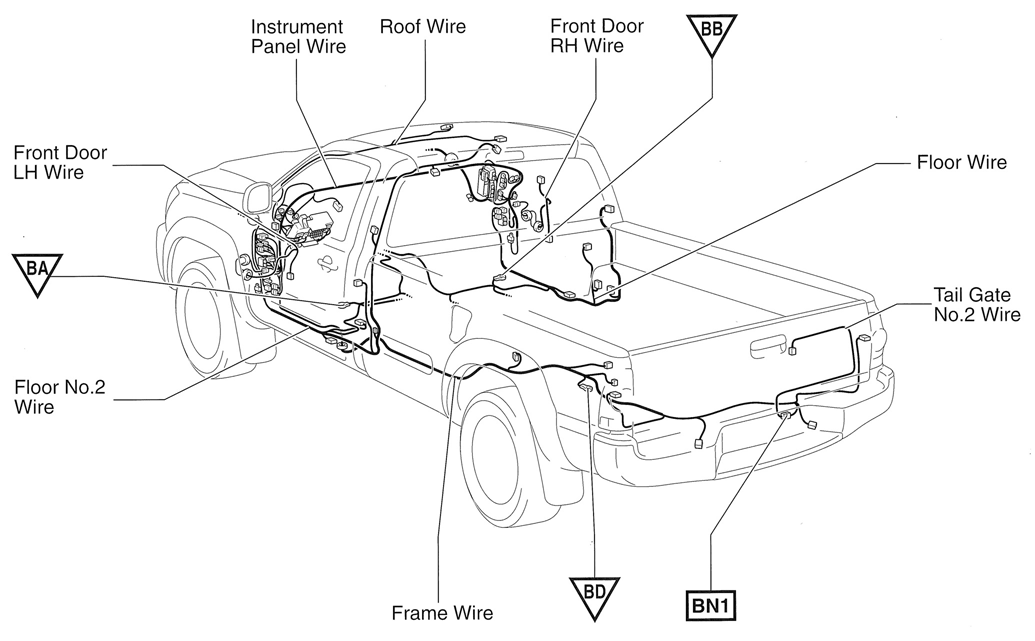

Fig 18: Vehicle Overview (Regular Cab)

G00475608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Bucket Seats

G00364939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

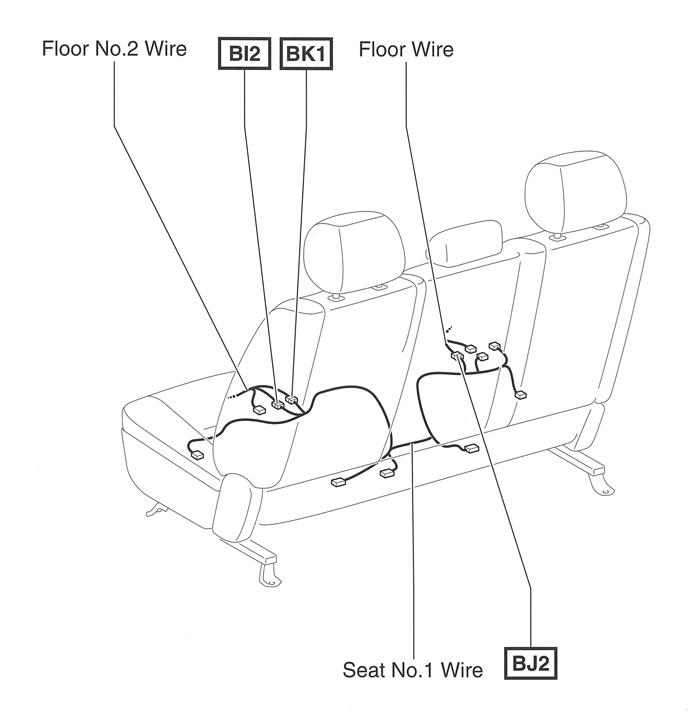

Fig 20: Bench Seats

G00467194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Driver Side J/B

G00364943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
1 L Gray (from Relay Wire)
1M (from Relay Wire)
Tail Relay
P/W Relay
ACC SKT Relay

Fig 22: Engine Room R/B No. 2

G00440277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Bucket Seats

G00364946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Vehicle Overview (Double Cab)

G00364947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Engine Compartment

G00364949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Dash

G00421741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Engine Room R/B

G00364951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
-	FR FOG Relay (1GR-FE)
-	C/OPN Relay
-	A/F Heater Relay
-	Towing Tail Relay (w/ Trailer Towing)
-	Stop LP CTRL Relay (w/ VSC)
-	DIM Relay
-	STA Relay
-	Heater Relay
*11	EFI No.2
*12	Head Relay
*13	EFI Relay
*14	Fuel Pump Relay (1GR-FE)
*15	BATT CHG Relay (w/ Trailer Towing)
*16	MG CLT Relay
*17	Horn Relay
*18	w/ Trailer Towing
*19	w/o Trailer Towing
*20	w/ Power Outlet (115V)

Fig 28: Bench Seats

G00421742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

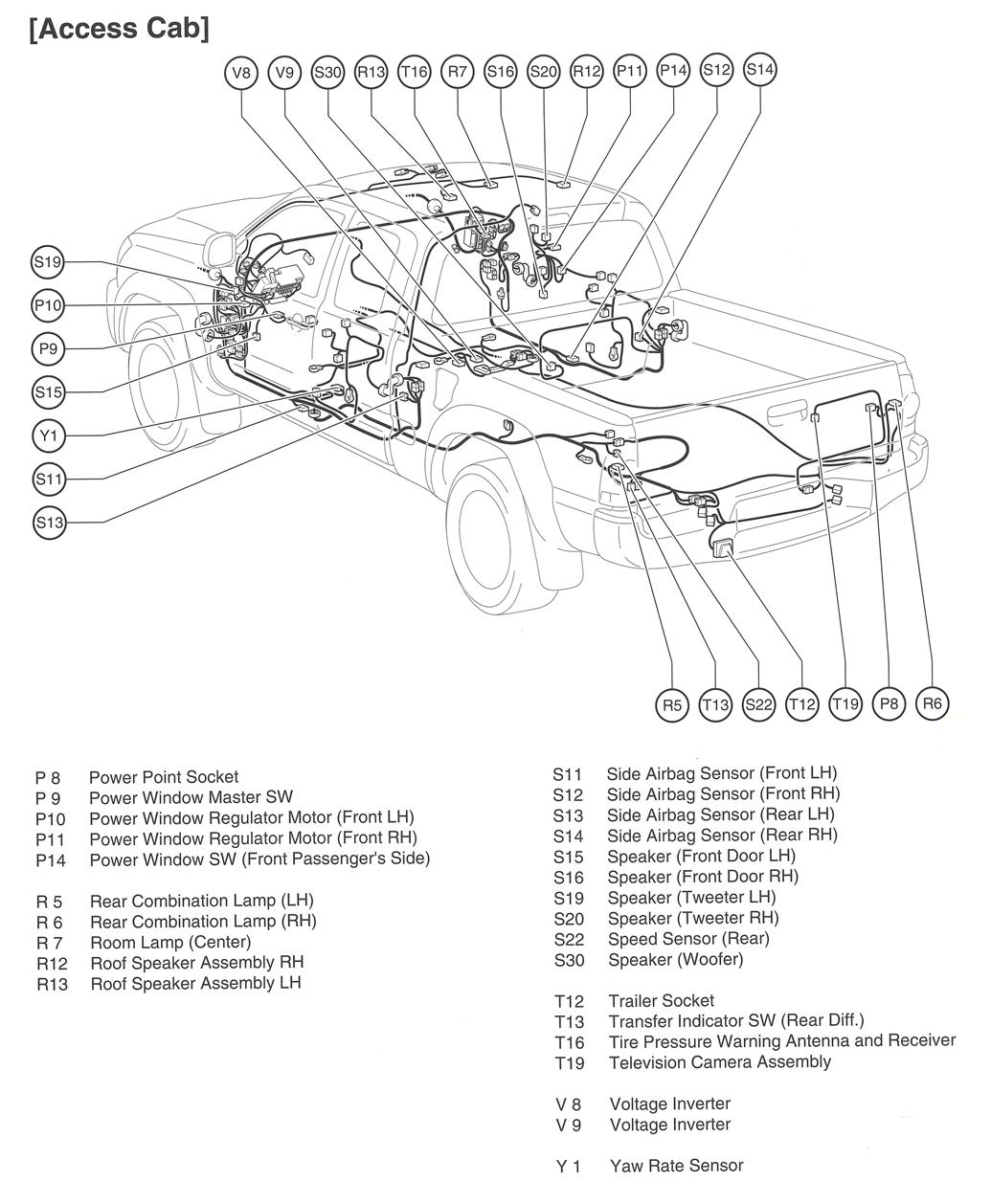

Fig 29: Vehicle Overview (Access Cab)

G00467191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

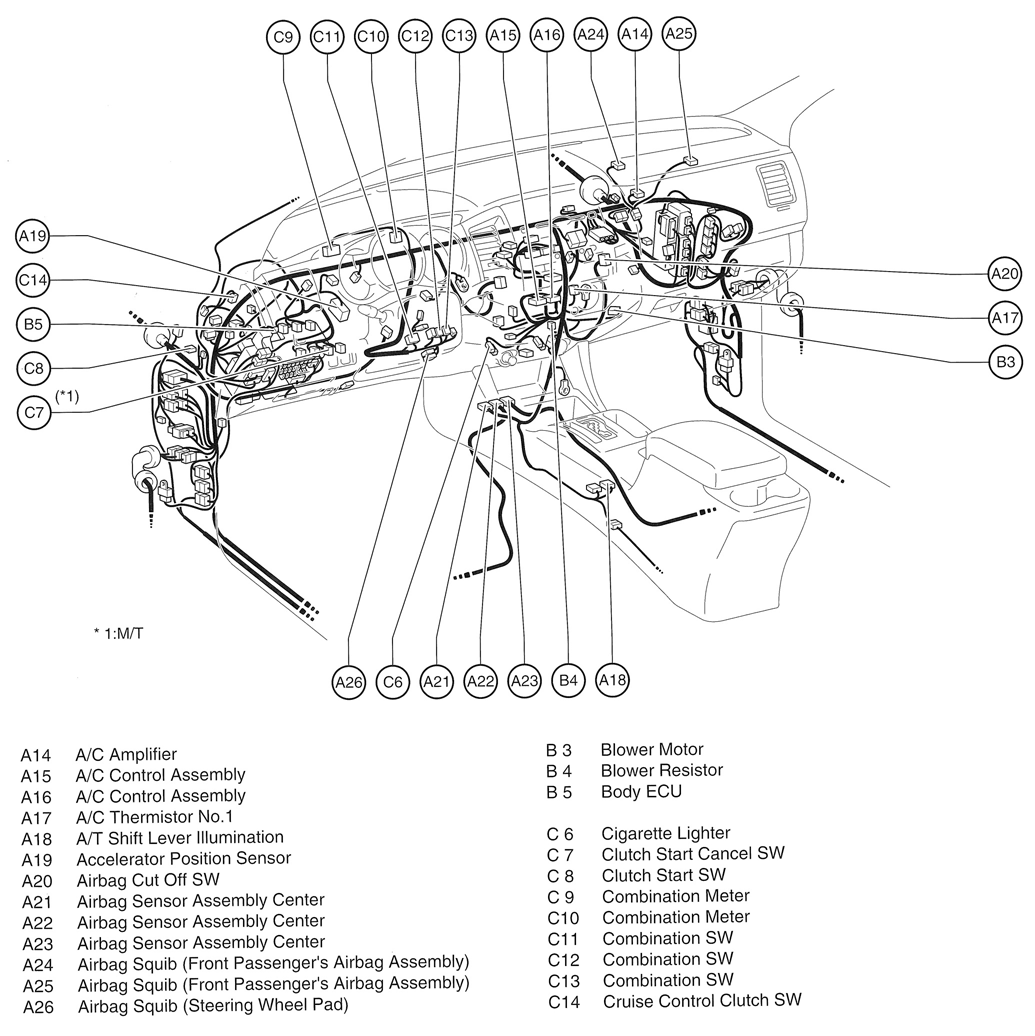

Fig 30: Dash

G00475603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

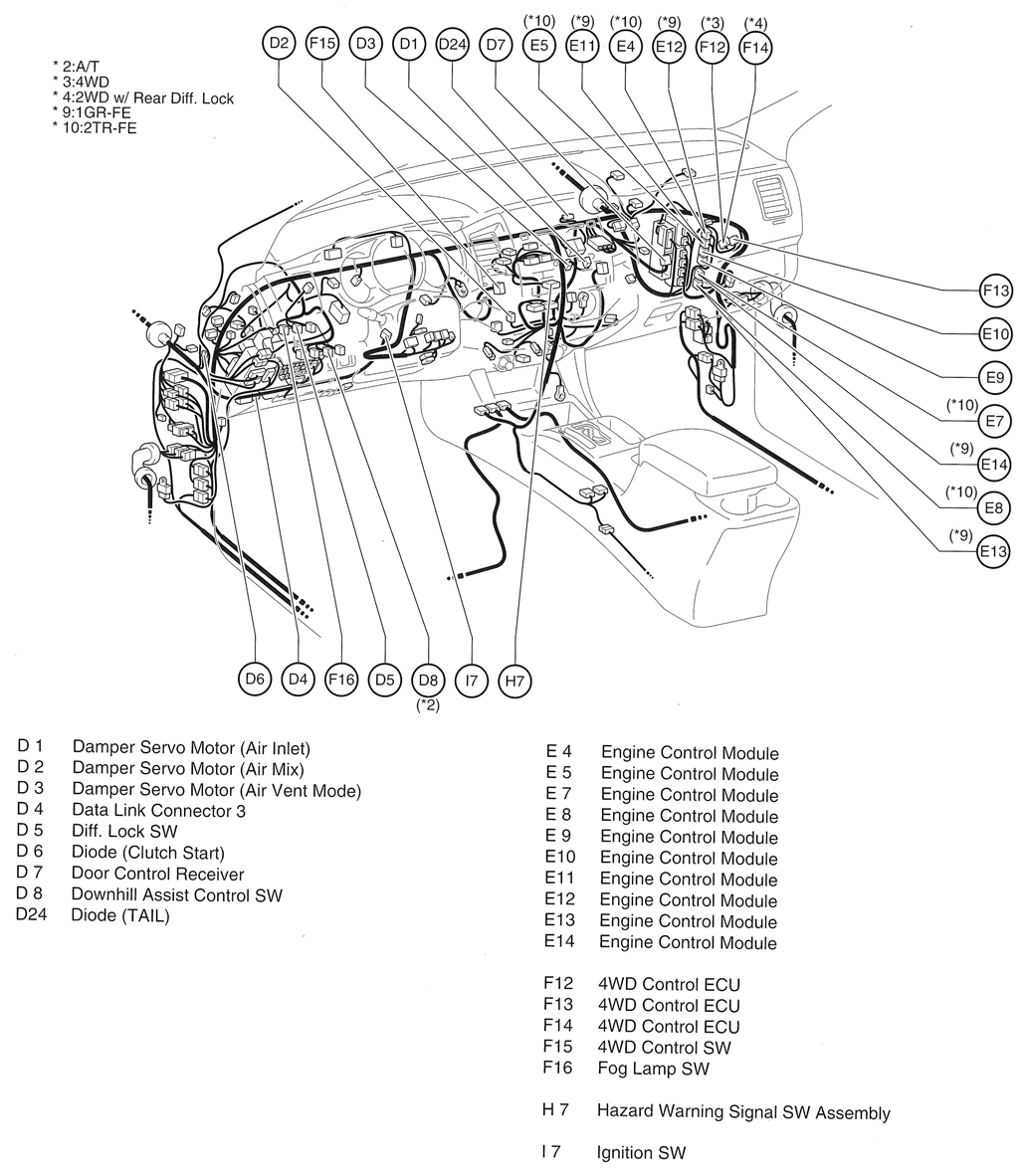

Fig 31: Dash

G00475604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

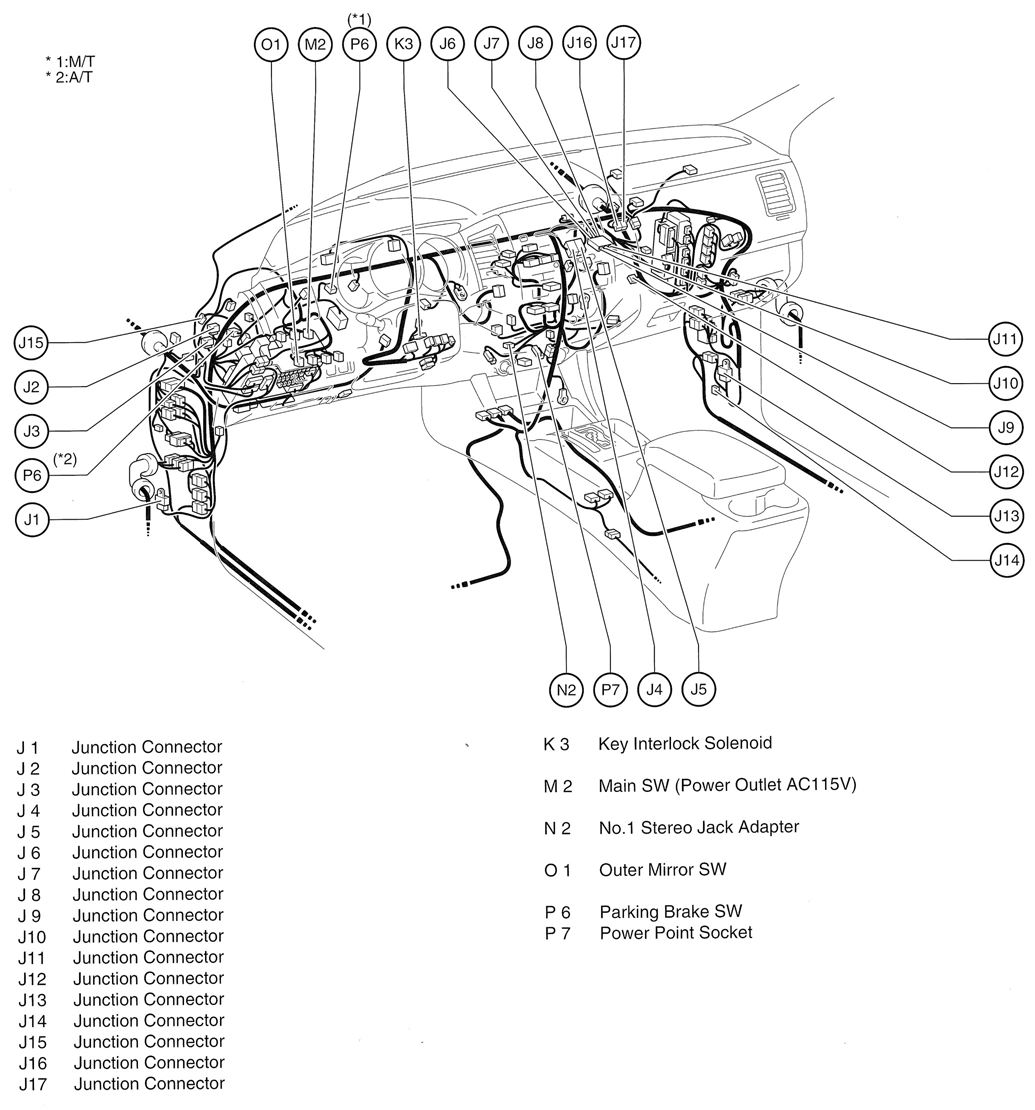

Fig 32: Dash

G00475605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

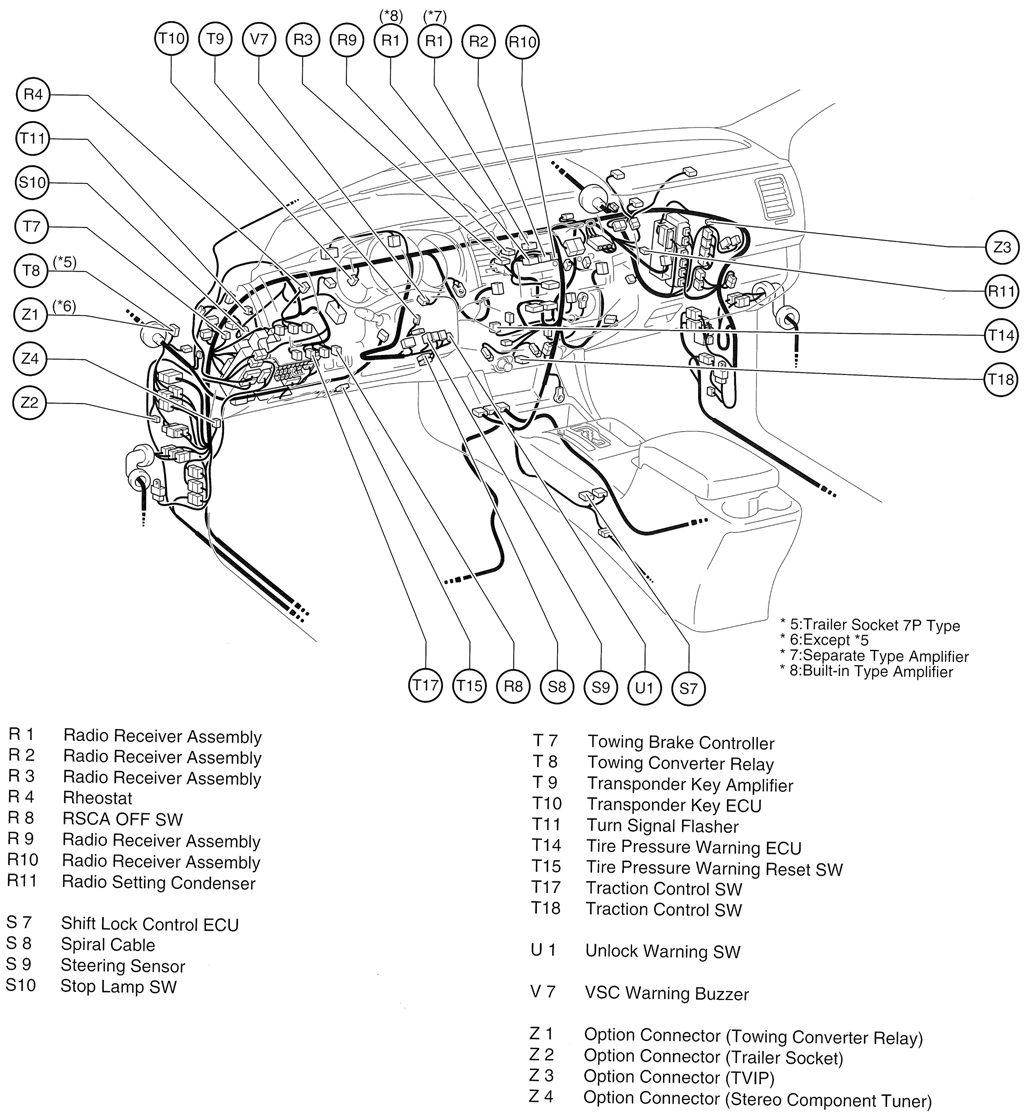

Fig 33: Dash

G00475606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
