OEM System Circuits: Taillight: Notes

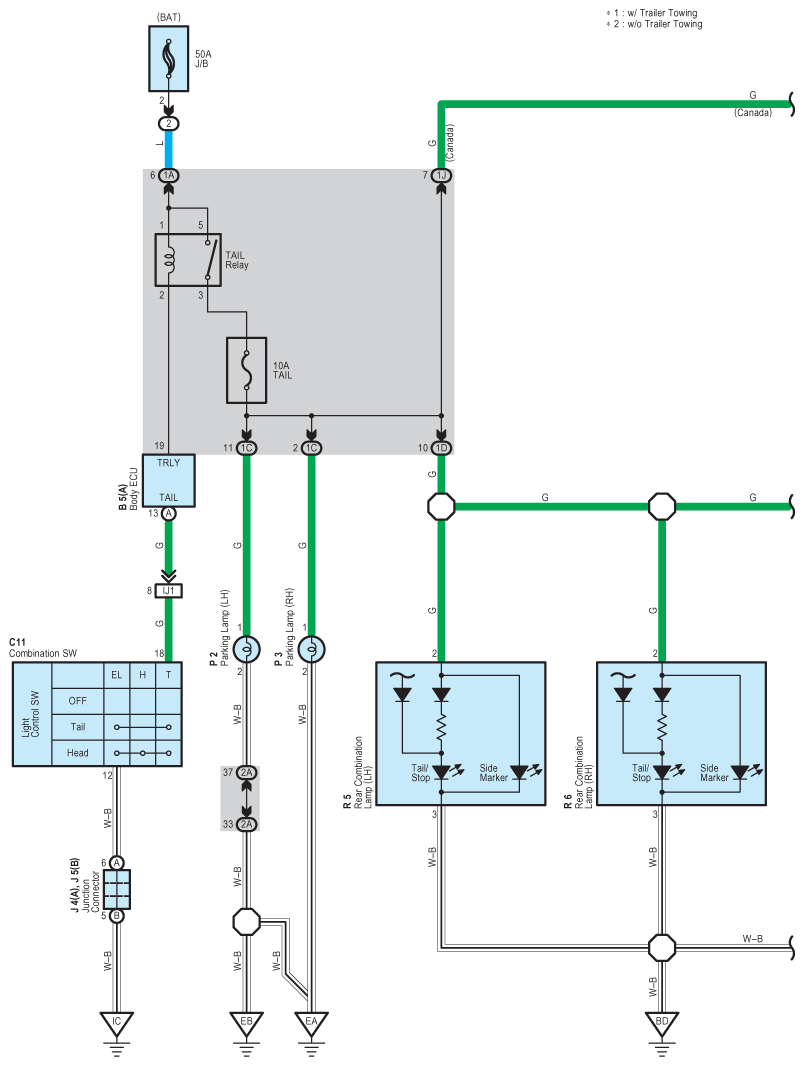

Fig 1: Taillight - Circuit Diagram (1 Of 2)
G07612640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

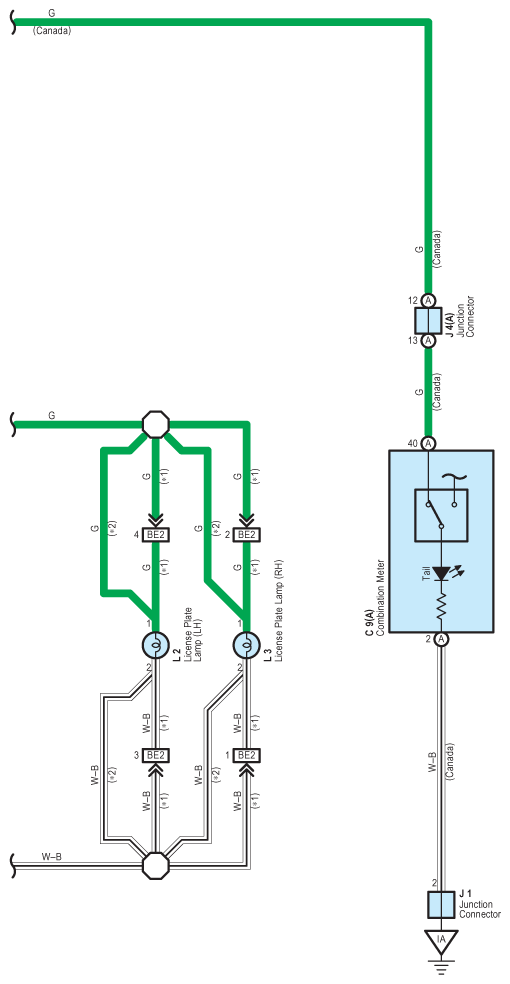

Fig 2: Taillight - Circuit Diagram (2 Of 2)
G07612641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
