Power Window: Notes

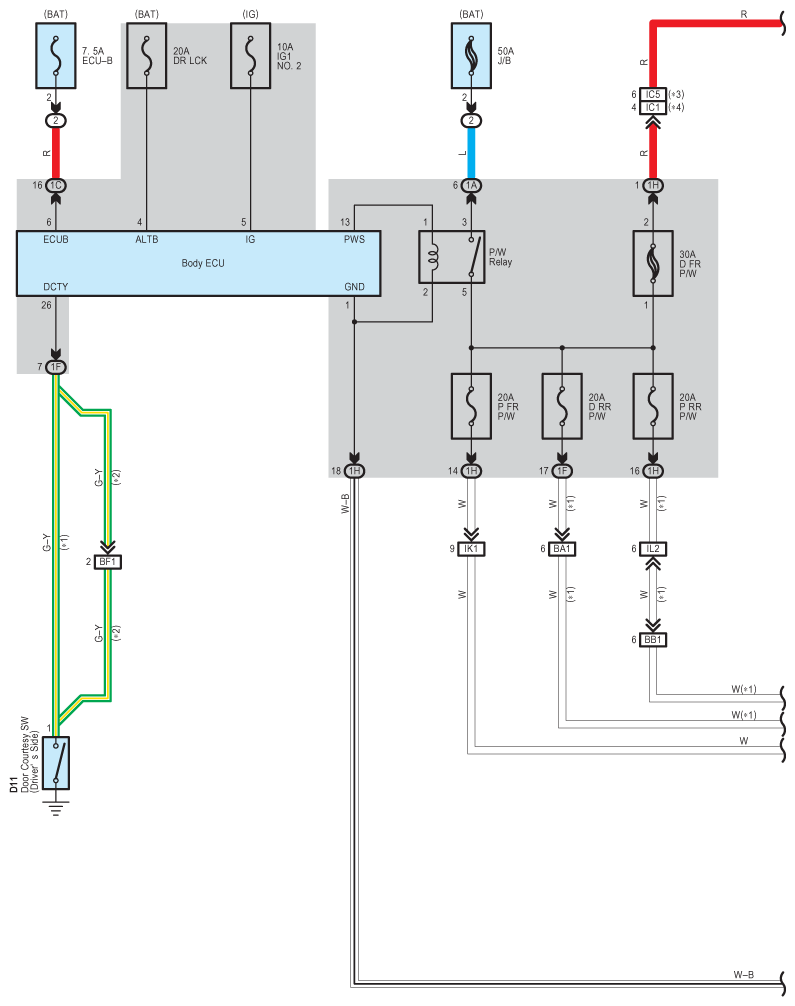

Fig 1: Power Window - Circuit Diagram (1 Of 3)
G07612691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

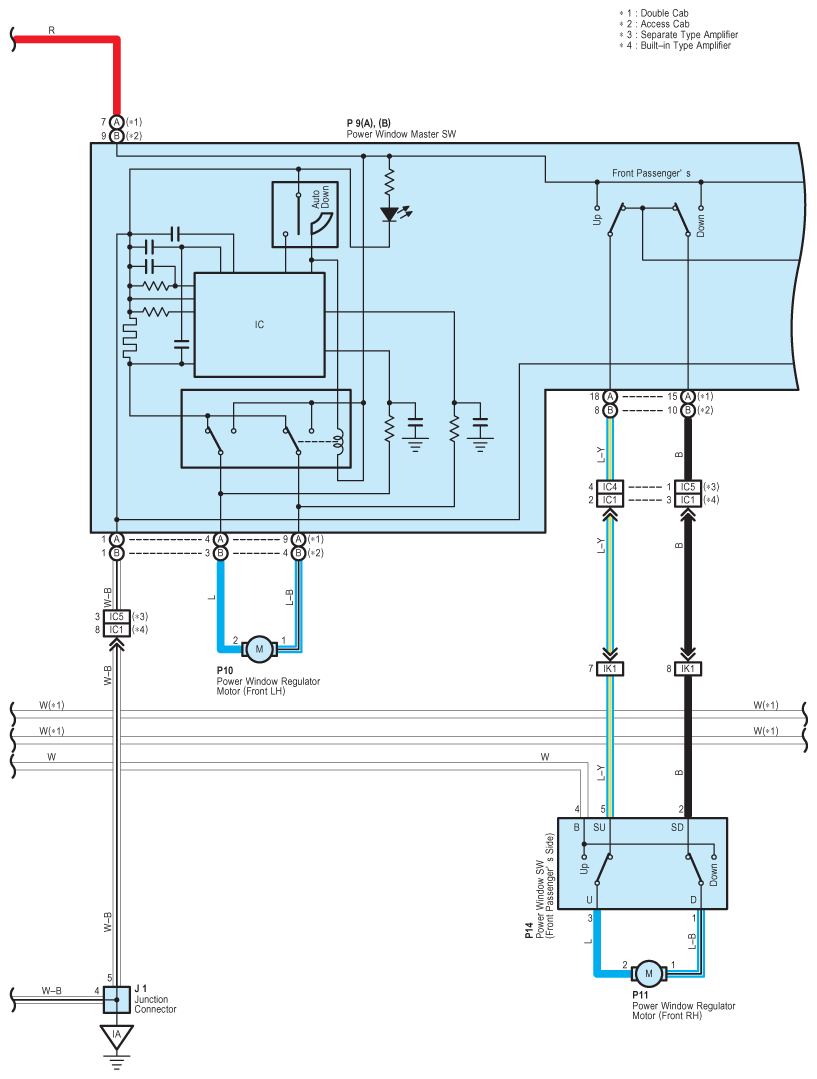

Fig 2: Power Window - Circuit Diagram (2 Of 3)
G07612692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

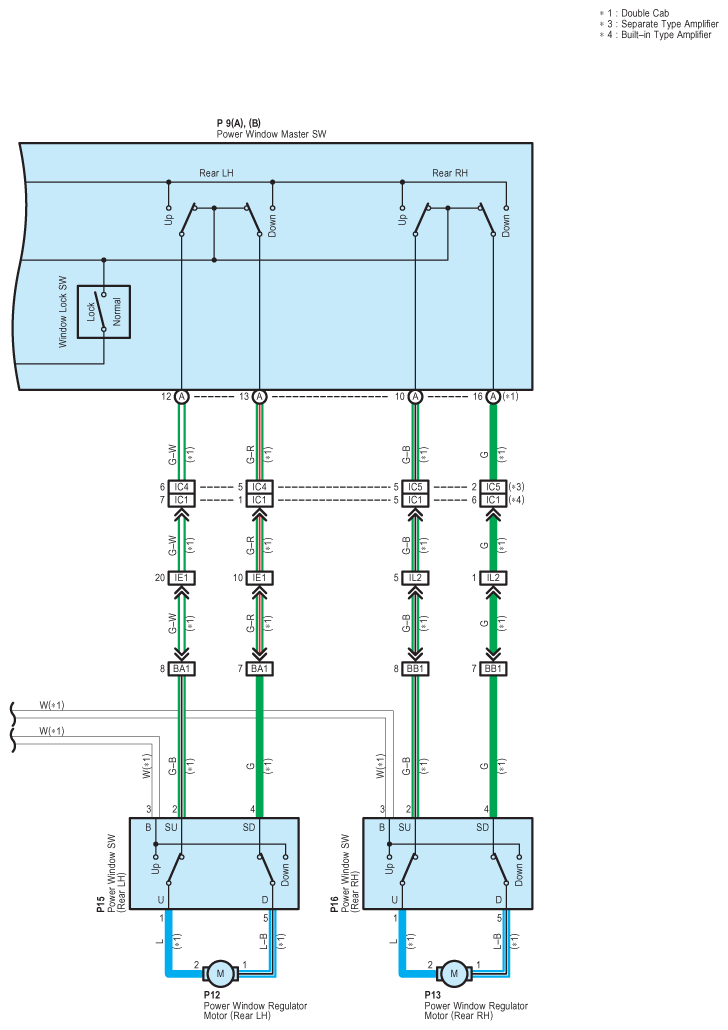

Fig 3: Power Window - Circuit Diagram (3 Of 3)
G07612693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
