Accessory Meter: Notes

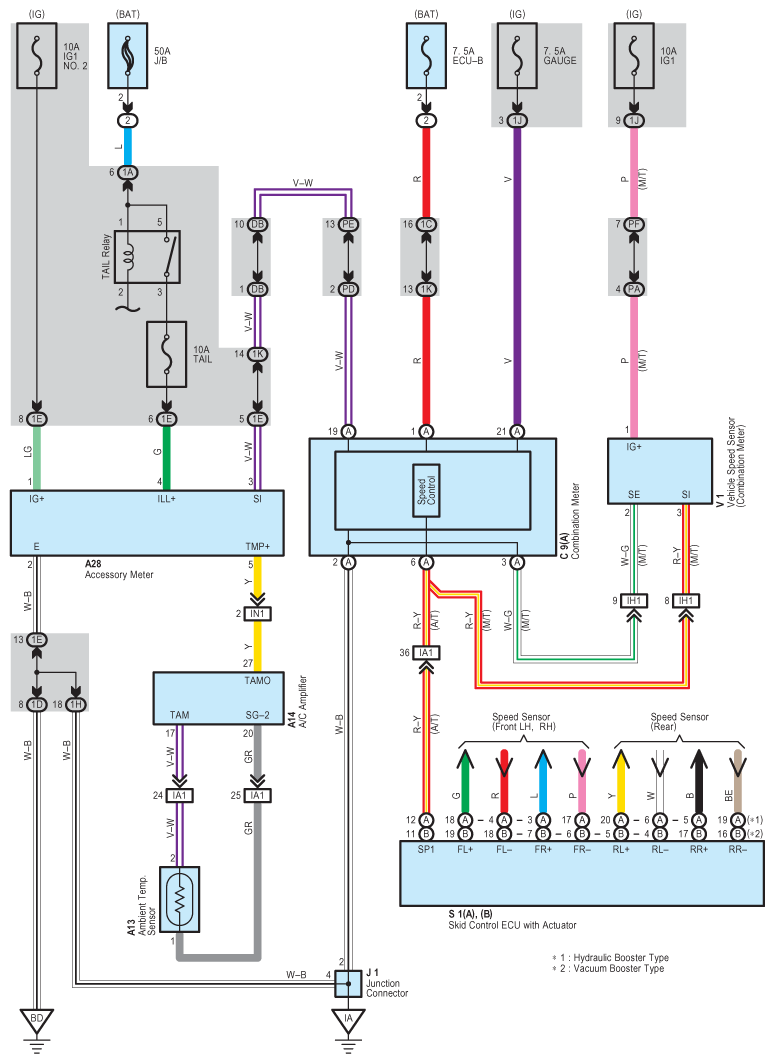

Fig 1: Accessory Meter - Circuit Diagram

G07612711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
