Brake Actuator: Components

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G06083738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

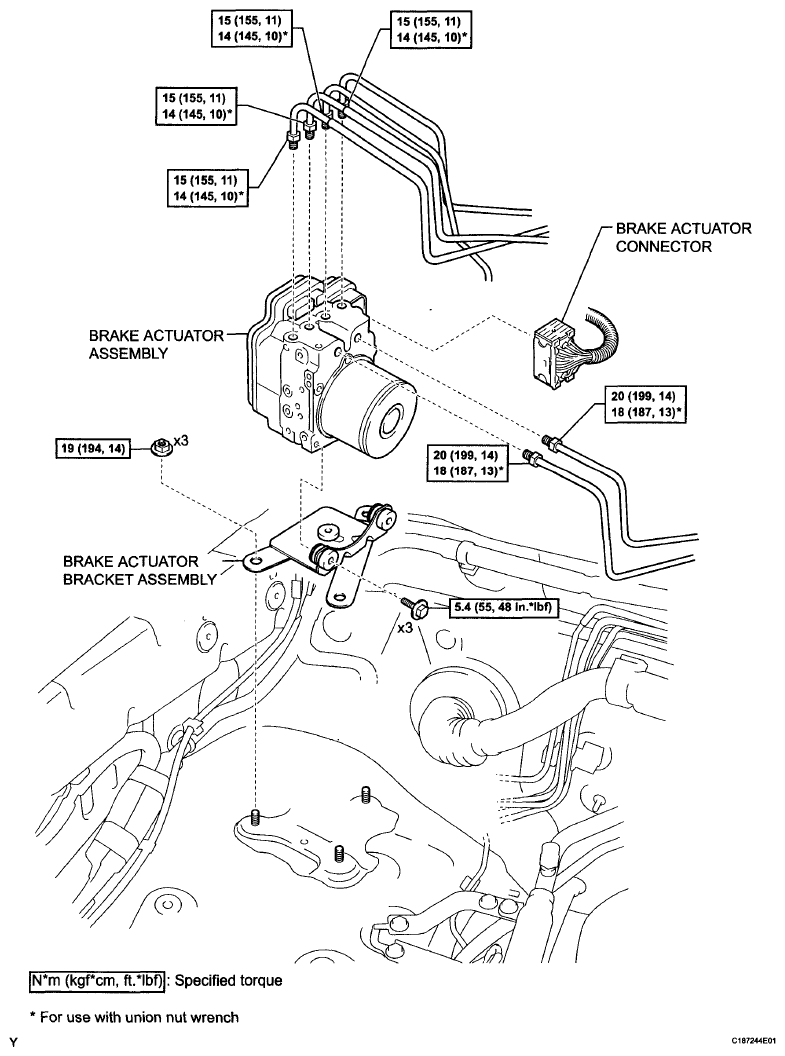

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G06083739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
