Transfer Assembly: Components

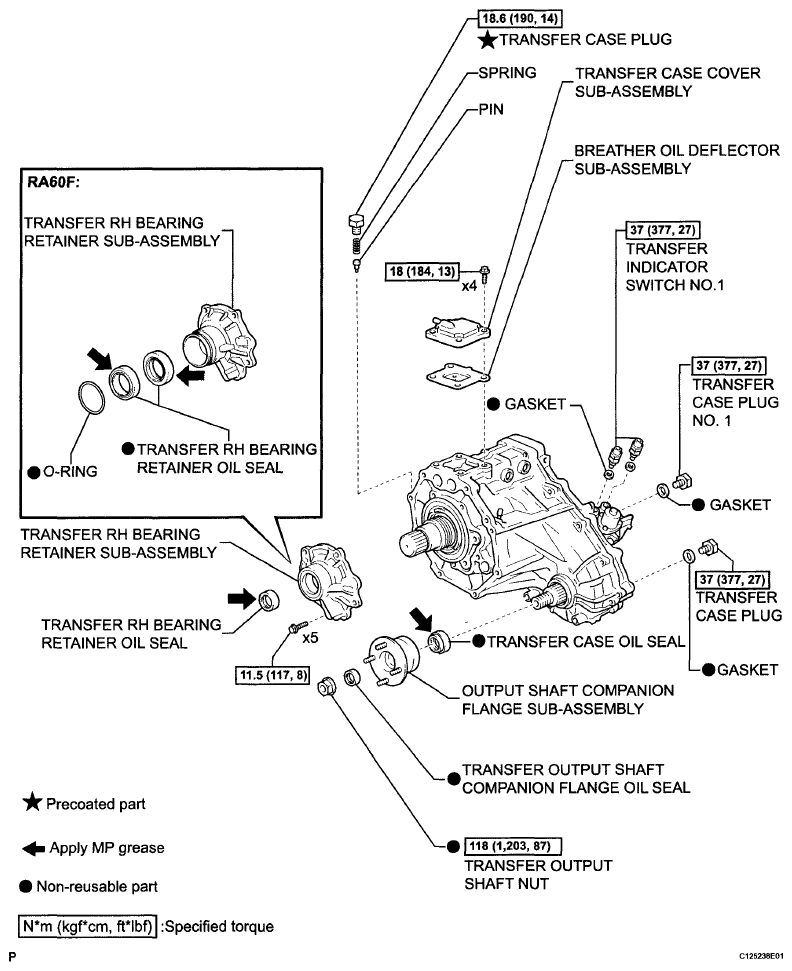

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 8)
G06082918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

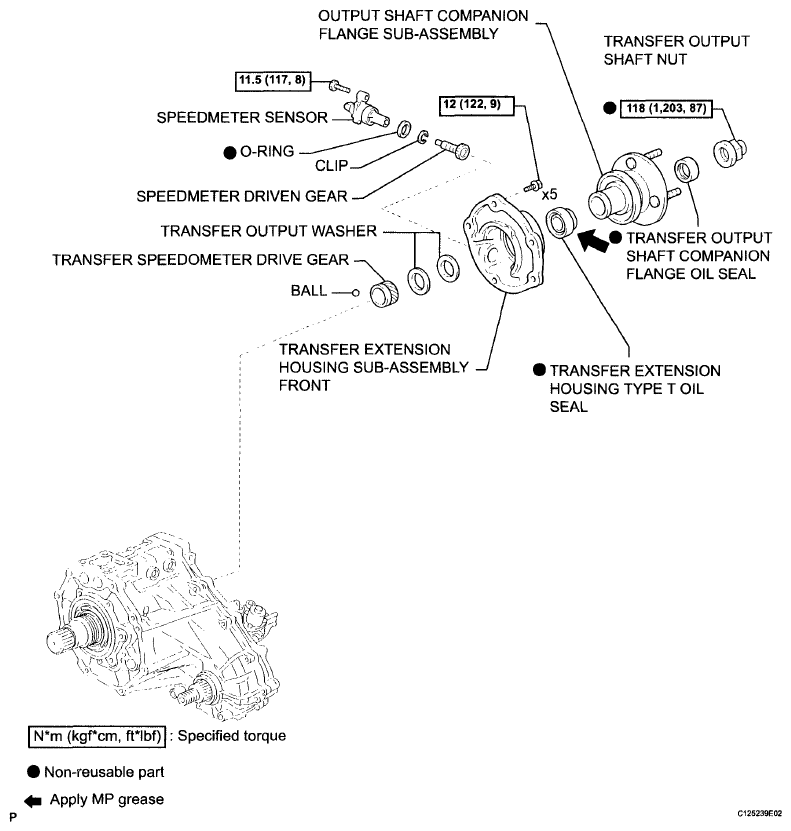

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 8)
G06082919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

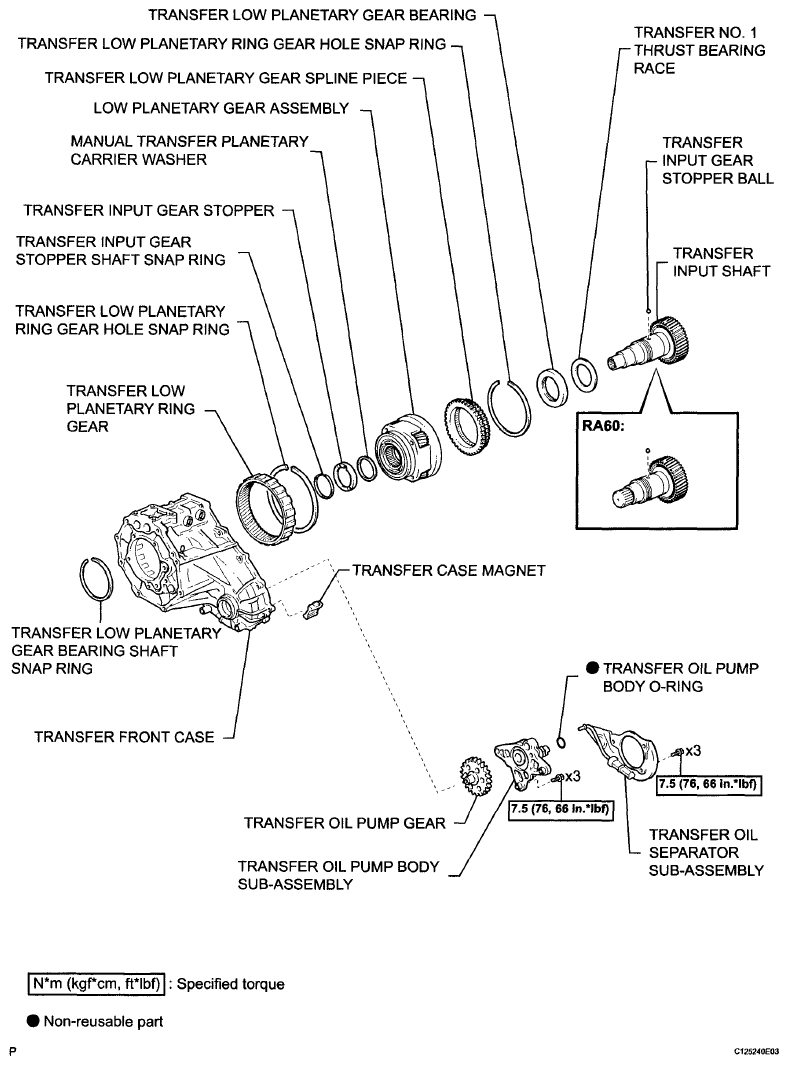

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 8)
G06082920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

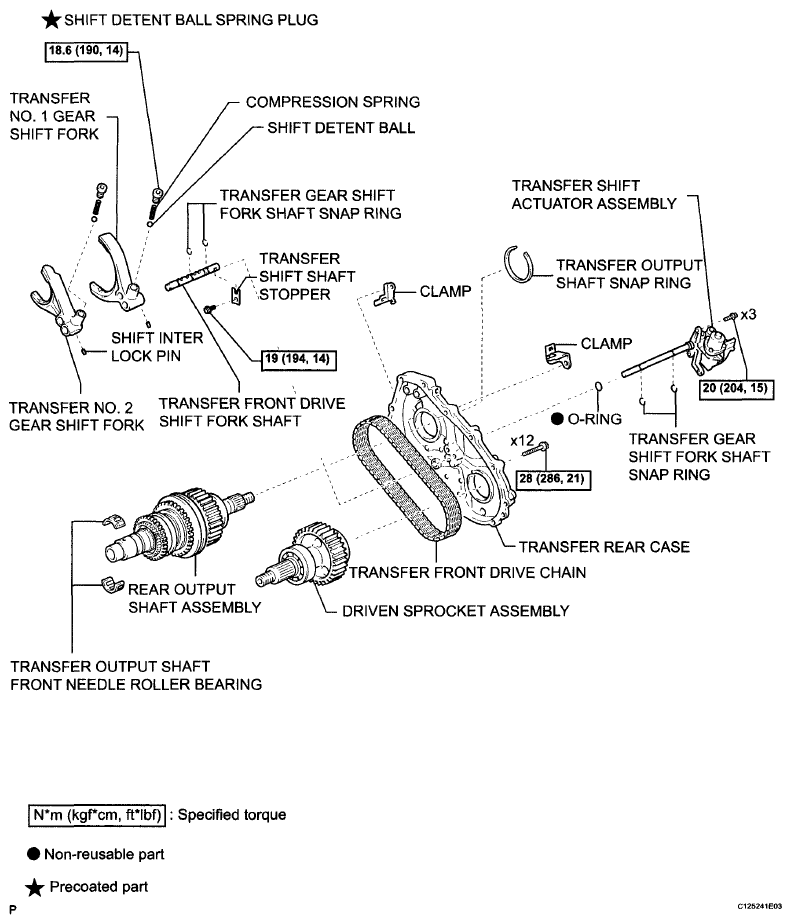

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 8)
G06082921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

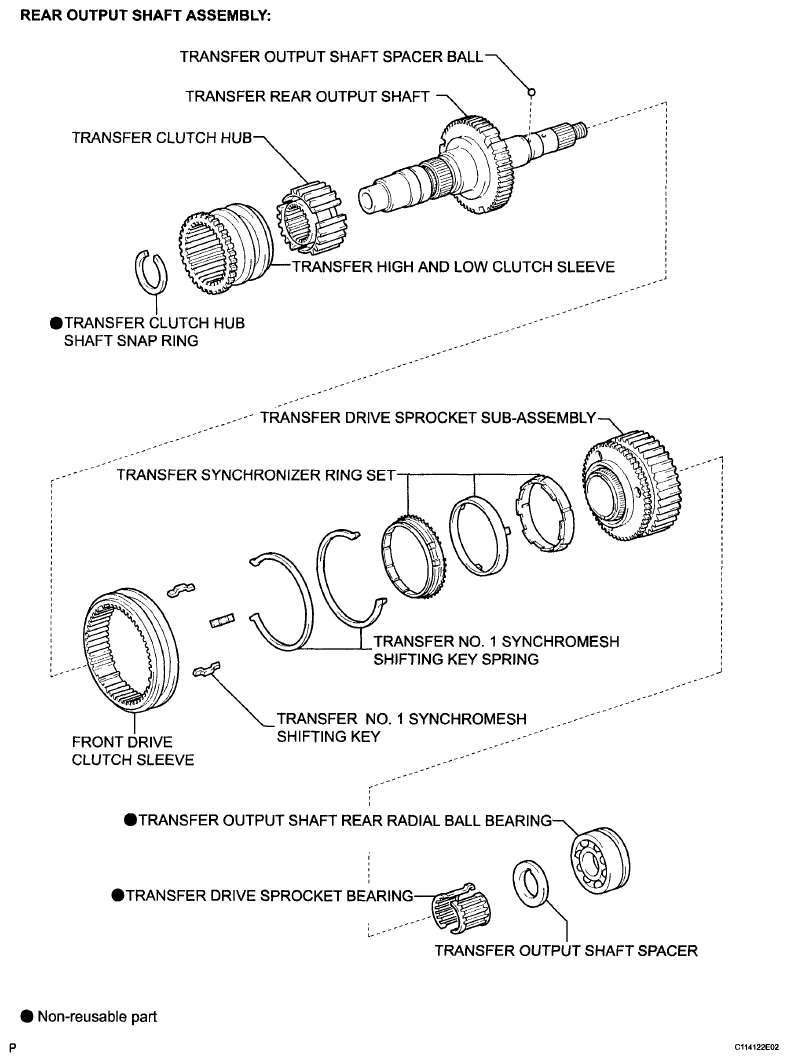

Fig 5: Transfer Assembly Replacement Components With Torque Specifications (5 Of 8)
G06082922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

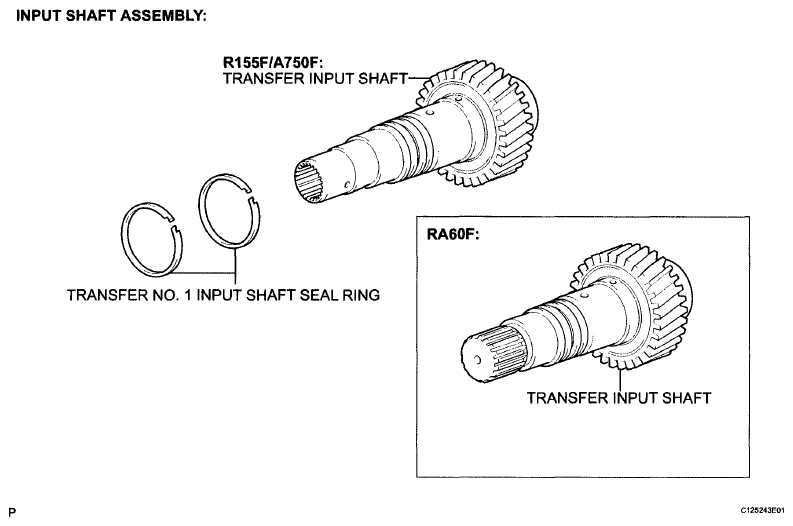

Fig 6: Transfer Assembly Replacement Components With Torque Specifications (6 Of 8)
G06082923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

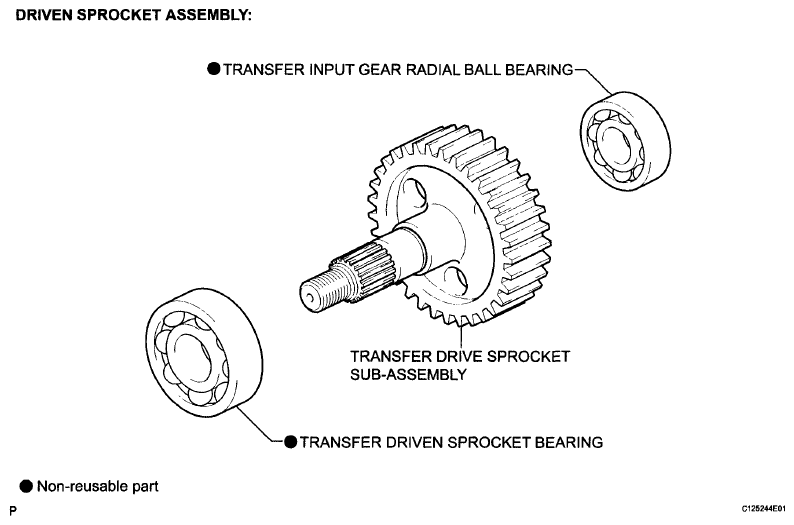

Fig 7: Transfer Assembly Replacement Components With Torque Specifications (7 Of 8)
G06082924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Transfer Assembly Replacement Components With Torque Specifications (8 Of 8)
G06082925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
