Touch Select 2-4 And High-Low System: Inspection

NOTE:
  • A/T:

    Switch the 4 wheel drive control switch when the A/T shift lever is in the N position and the vehicle speed is 5 km/h or less.

  • M/T:

    Switch the 4 wheel drive control switch when the clutch start switch is turned ON and the vehicle speed is 3 km/h or less.

  • Do not change from H2 to H4 when the vehicle speed is 100 km/h or more.
  1. INSPECT H2 (2WD) - H4 (4WD) SHIFT
    1. Start the engine.
    2. Turn the 4 wheel drive control switch from the H2 to the H4 position.
    3. Check that the 4WD indicator light blinks and then stays on.
    4. Turn the 4 wheel drive control switch from the H4 to the H2 position
    5. Check that the 4WD indicator light blinks and then goes off.

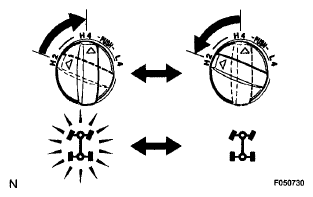

      Fig 1: Inspecting H2 (2WD) - H4 (4WD) Shift
      G06083035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT H4 (4WD) - L4 (4WD) SHIFT
    1. Start the engine and depress the clutch pedal all the way.
    2. Turn the 4 wheel drive control switch from the H4 to the L4 position while pressing it.
    3. Check that the 4LO indicator light blinks and then stays on.
    4. Turn the 4 wheel drive control switch from the L4 to the H4 position while pressing it.
    5. Check that the 4LO indicator light blinks and then goes off.

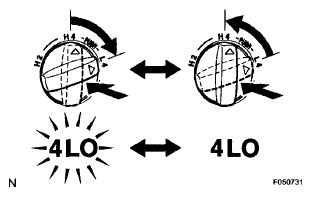

      Fig 2: Inspecting H4 (4WD) - L4 (4WD) Shift
      G06083036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT H2 (2WD) - L4 (4WD) SHIFT
    1. Start the engine and depress the clutch pedal all the way.
    2. Turn the 4 wheel drive control switch from the H2 to the H4 position.
    3. Check that the 4WD indicator light blinks and then stays on.
    4. Turn the 4 wheel drive control switch from the H4 to the L4 position while pressing it.
    5. Check that the 4LO indicator light blinks and then stays on.

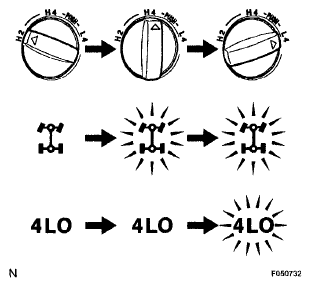

      Fig 3: Inspecting H2 (2WD) - L4 (4WD) Shift
      G06083037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT L4 (4WD) - H2 (2WD) SHIFT
    1. Start the engine and depress the clutch pedal all the way.
    2. Turn the 4 wheel drive control switch from the L4 to the H4 position while pressing it.
    3. Check that the 4LO indicator light blinks and then goes off.
    4. Turn the 4 wheel drive control switch from the H4 to the H2 position.
    5. Check that the 4WD indicator light blinks and then goes off.

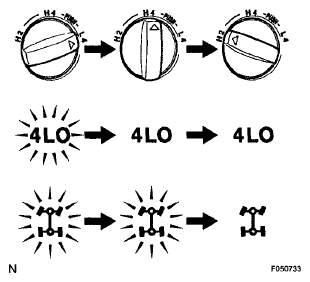

      Fig 4: Inspecting L4 (4WD) - H2 (2WD) Shift
      G06083038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT 4 WHEEL DRIVE CONTROL SWITCH
    1. Remove the center instrument cluster finish panel sub-assembly.
    2. Remove the 4 wheel drive control switch from the center instrument cluster finish panel sub-assembly.
    3. Using an ohmmeter, measure the resistance between the terminals.
      TESTER CONNECTION AND SPECIFIED CONDITION

      Switch position Tester connection Specified condition
      H2 5 (2-4) - 4 (GND) Below 1 Ω
      H4 5 (2-4) → 4 (GND) Below 1 Ω
      5 (2-4) ← 4 (GND) 100 kΩ or higher
      2 (LO) → 4 (GND) Below 1 Ω
      2 (LO) ← 4 (GND) 100 kΩ or higher
      L4 2 (LO) - 4 (GND) Below 1 Ω
      Fig 5: Identifying Wheel Drive Control Switch Connector Terminals
      G06083039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the results are not as specified, replace the 4 wheel drive control switch or bulb.

  6. INSPECT ACTUATOR RESISTANCE
    1. Using an ohmmeter, measure the resistance between terminals 1 and 2.

      Standard resistance:

      0.3 to 100 Ω

    2. Using an ohmmeter, measure the resistance between terminals 1 or 2 and the body ground.

      Standard resistance:

      More than 0.5 M Ω

      If the results are not as specified, replace the shift actuator assembly.

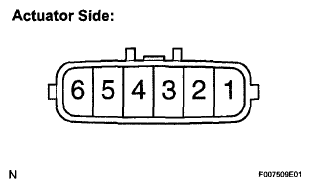

      Fig 6: Identifying Actuator Connector Terminals
      G06083040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT ACTUATOR OPERATION
    1. H2 (2WD) → H4 shift:

      Connect the lines via the relay as shown in the illustration, then check that the actuator fork shaft moves from the H2 (2WD) to the H4 positions.

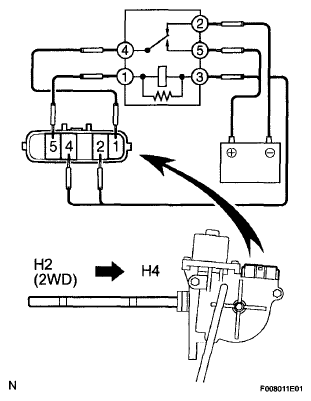

      Fig 7: Checking H2 (2WD) - H4 Shift
      G06083041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. H4 → H2 (2WD) shift:

      Connect the lines via the relay as shown in the illustration, then check that the actuator fork shaft moves from the H4 to the H2 (2WD) positions.

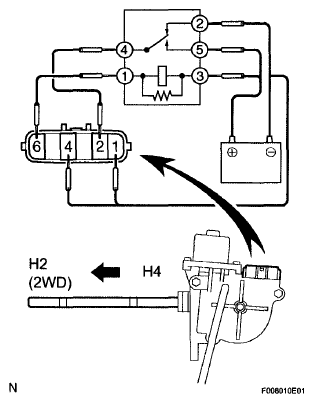

      Fig 8: Checking H4 - H2 (2WD) Shift
      G06083042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

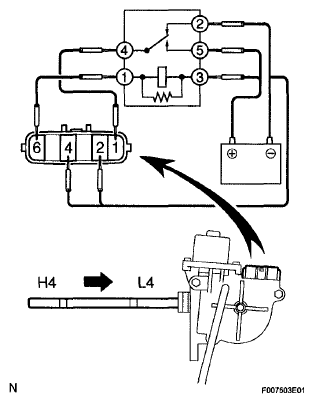

    3. H4 → L4 shift:

      Connect the lines via the relay as shown in the illustration, then check that the actuator fork shaft moves from the H4 to the L4 positions.

      Fig 9: Checking H4 - L4 Shift
      G06083043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

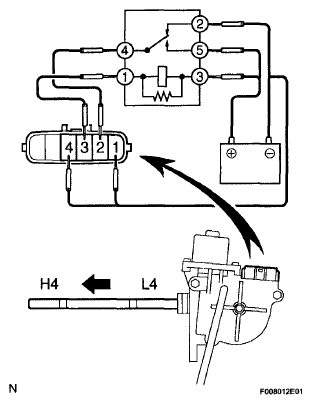

    4. L4 → H4 shift:

      Connect the lines via the relay as shown in the illustration, then check that the actuator fork shaft moves from the L4 to the H4 positions.

      Fig 10: Checking L4 - H4 Shift
      G06083044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

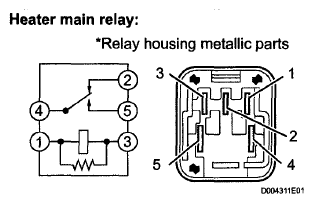

      HINT:

      When inspecting the operation described above, use a heater main relay.

      NOTE: Connect the terminals, being careful not to touch the neighboring terminals or metallic parts of the relay housing.
      Fig 11: Checking Heater Main Relay
      G06083045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT LIMIT SWITCH CONTINUITY
    1. Start the engine and lift the vehicle up.
    2. With the actuator connector connected, after checking the operating sound, disconnect the connector and inspect the continuity between the terminals using an ohmmeter.
      Fig 12: Identifying Actuator Connector Terminals
      G06083040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When shifting the actuator fork shaft, connect the connectors.

      TESTER CONNECTION AND SPECIFIED CONDITION

      Shift position Tester connection Specified condition
      H2 3-4
      3-5
      3-6
      4-5
      4-6
      5-6      		 100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
      Below 1Ω
      100 kΩ or higher
      100 kΩ or higher
      H4 3-4
      3-5
      3-6
      4-5
      4-6
      5-6      		 100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
      Below 1 Ω
      100 kΩ or higher
      L4 3-4
      3-5
      3-6
      4-5
      4-6
      5-6      		 Below 1 Ω
      100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
      100 kΩ or higher
  9. INSPECT 4 WHEEL DRIVE CONTROL ECU
    1. Connect the wire harness side connector to the 4 wheel drive control ECU and inspect the wire harness side connector from the back side, as shown.

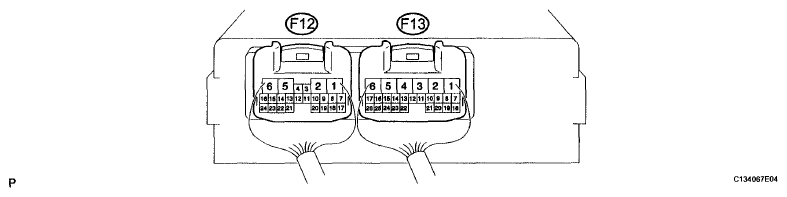

      Fig 13: Identifying Wheel Drive Control ECU Connector Terminals
      G06083047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      STANDARD VALUE OF ECU TERMINAL

      ECU CONNECTOR TERMINALS REFERENCE CHART

      Terminals (Symbols) Condition STD Voltage (V)
      F13-2 (TM1) - F13-1 (TM2)
      • Ignition switch ON
      • Differential lock switch in OFF position
      • 4 wheel drive control switch H2 position → H4 position
      		 10 to 14 or 0 to 14 pulse generation then less than 0.5
      F13-1 (TM2) - F13-2 (TM1)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • Keep pressing the differential lock switch for approx. 2 seconds to turn it ON
      • 4 wheel drive control switch L4 position → H4 position
      		 10 to 14 or 0 to 14 pulse generation then less than 0.5
      F13-3 (DM1) - F13-4 (DM2)
      • Ignition switch ON
      • A.D.D. FREE → LOCK
      		 10 to 14 or 0 to 14 pulse generation then less than 0.5
      F13-4 (DM2) - F13-3 (DM1)
      • Ignition switch ON
      • A.D.D. LOCK → FREE
      		 10 to 14 or 0 to 14 pulse generation then less than 0.5
      F12-6 (GND) - Body ground Ignition switch OFF Below 1 Ω
      F12-5 (IG) - F12-6 (GND) Ignition switch ON 10 to 14
      F13-12 (DL2) - F12-6 (GND)
      • Ignition switch ON
      • A.D.D. LOCK → FREE
      		 1.5 or less → 10 to 14
      F13-13 (DL1) - F12-6 (GND)
      • Ignition switch ON
      • A.D.D. FREE → LOCK
      		 1.5 or less → 10 to 14
      F12-8 (2-4) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch L4 position → H2 position or H4 position
      		 10 to 14 → 2 or less
      F12-9 (SPD) - F12-6 (GND) During driving Pulse generation
      F12-11 (IND3) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H4 position → L4 position
      		 10 to 14 → 1.5 to 3.5
      F12-15 (LO) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H4 position → L4 position
      		 10 to 14 → 1.5 or less
      F13-26 (ADD) - F12-6 (GND)
      • Ignition switch ON
      • A.D.D. FREE → LOCK
      		 10 to 14 → 1.5 or less
      F13-17 (L4) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H2 position or H4 position → L4 position
      		 10 to 14 → 1.5 or less
      F13-22 (4WD) - F12-6 (GND)
      • Ignition switch ON
      • 4 wheel drive control switch H2 position → H4 position
      		 10 to 14 → 1.5 or less
      F13-23 (TL3) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H2 position → L4 position
      		 10 to 14 → 0.88 or less
      F13-24 (TL2) - F12-6 (GND)
      • Ignition switch ON
      • 4 wheel drive control switch H2 position → H4 position
      		 10 to 14 → 0.88 or less
      F13-25 (TL1) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H2 position → H4 position or L4 position
      		 0.88 or less → 10 to 14
      F12-19 (IND1) - F12-6 (GND)
      • Ignition switch ON
      • Depress clutch pedal all the way
      • 4 wheel drive control switch H2 position → H4 position or L4 position
      		 10 to 14 → 0 to 3.5
      F12-22 (N) - F12-6 (GND)
      • Ignition switch ON
      • Transmission shift lever other position → N position
      		 1.5 or less → 10 to 14
