On-Vehicle Inspection

INSPECT DRIVE BELT
1. Visually check the belt for defects, such as excessive wear and frayed cords. If any defects are found, replace the drive belt.
  HINT:

  Cracks on the rib side of a belt are considered acceptable. Replace the belt if there are any missing ribs.
Fig 1: Checking Belt Excessive Wear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED POWER STEERING SYSTEM
1. Check the fluid level.
2. Jack up the front of the vehicle and support it with stands.
3. Turn the steering wheel.
  1. With the engine stopped, turn the wheel slowly from lock to lock several times.
4. Lower the vehicle.
5. Start the engine.
  1. Run the engine at idle for a few minutes.
6. Turn the steering wheel.

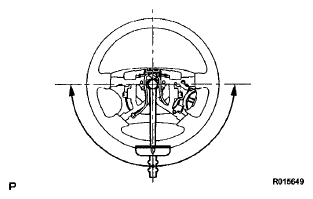

  1. With the engine idling, turn the wheel to the left or right full lock position and keep it there for 2 to 3 seconds. Then turn the wheel to the opposite full lock position and keep it there for 2 to 3 seconds (step A).
  2. Repeat step A several times.
7. Stop the engine.
8. Check for foaming or emulsification.
  Especially, if the system has to be bled twice because of foaming or emulsification, check for fluid leakage in the system.
9. Check the fluid level.
Fig 2: Checking Fluid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FLUID LEVEL
1. Keep the vehicle level.
2. With the engine stopped, check the fluid level in the oil reservoir.
  If necessary, add fluid.

  Fluid:

  ATF "DEXRON" II or III

  HINT:

  Check that the fluid level is within the HOT level range in the reservoir tank. If the fluid is cold, check that it is within the COLD level range.
3. Start the engine and let it idle.
4. Turn the steering wheel from lock to lock several times to raise fluid temperature.
  Fluid temperature:

  75 to 80°C (167 to 176°F)

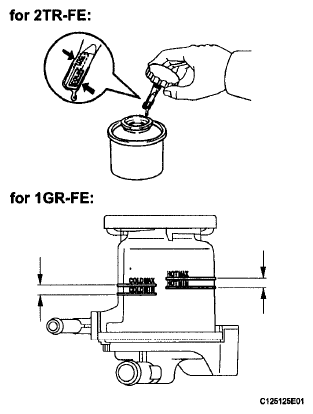

  Fig 3: Checking Fluid Level With HOT Level Range In Reservoir Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

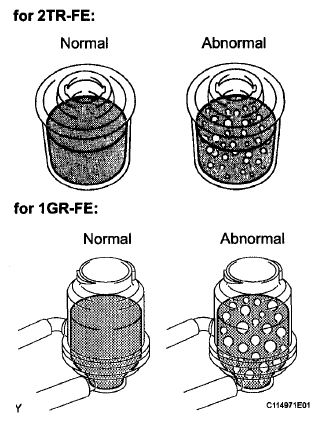

5. Check for foaming or emulsification.
  If any foaming or emulsification is identified, bleed the power steering system.

  Fig 4: Checking Fluid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

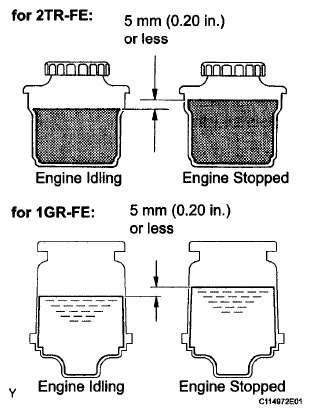

6. With the engine idling, measure the fluid level in the oil reservoir.
7. Stop the engine.
8. Wait a few minutes and measure the fluid level in the oil reservoir again.
  Maximum fluid level rise:

  5 mm (0.20 in.)

  If any problems are found, bleed the power steering system.
9. Check the fluid level.
INSPECT STEERING FLUID PRESSURE
1. for 2TR-FE:
  1. Disconnect the pressure feed tube from the vane pump (See REMOVAL ).
2. for 1GR-FE:
  1. Disconnect the pressure feed tube from the vane pump (See REMOVAL ).
3. for 2TR-FE:
  Connect SST as shown in the illustration.

  SST 09640-10010 (09641 -01010, 09641 -01030, 09641-01060)

  NOTE: Check that the valve of SST is in the open position.

  Fig 5: Inspecting Fluid Level
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

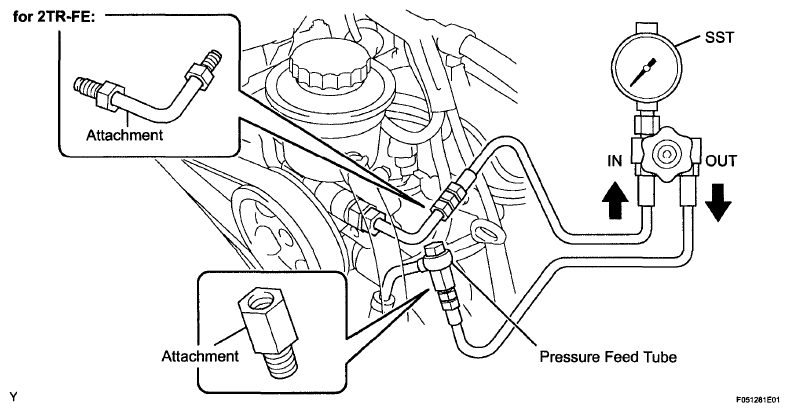

  Fig 6: Inspecting Steering Fluid Pressure (For 2TR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. for 1GR-FE:
  Connect SST as shown in the illustration.

  SST 09640-10010 (09641-01010, 09641 -01030, 09641-01060)

  NOTE: Check that the valve of SST is in the open position.

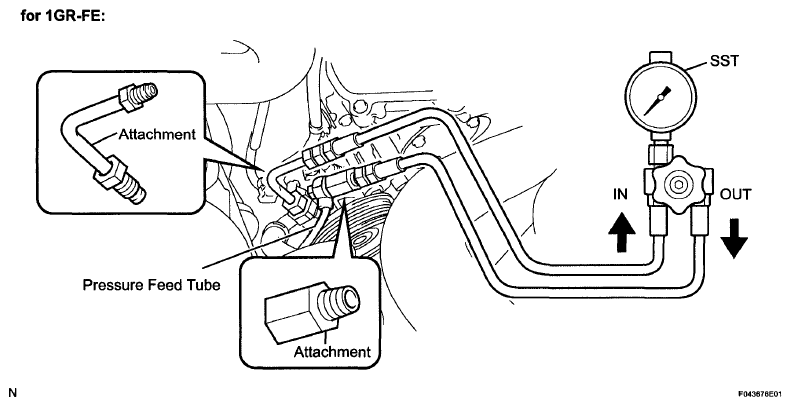

  Fig 7: Inspecting Steering Fluid Pressure (For 1GR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Bleed the power steering system.
6. Start the engine and let it idle.
7. Turn the steering wheel from lock to lock several times to raise the fluid temperature.
  Fluid temperature:

  75 to 80°C (167 to 176°F)

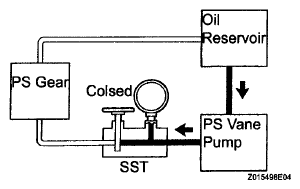

8. With the engine idling, close the valve of SST and check the reading on SST.
  Fluid pressure:

  8,300 to 8,800 kPa (85 to 90 kgf/cm ² , 1,209 to 1,280 psi)

  Fig 8: Inspecting Steering Fluid Pressure (SST Valve Close)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not keep the valve closed for more than 10 seconds.
  - Do not let the fluid temperature become too high.
9. With the engine idling, fully open the valve.
10. Measure the fluid pressure at the engine speeds of 1,000 rpm and 3,000 rpm.
  Fluid pressure difference:

  490 kPa (5 kgf/cm ² , 71 psi) or less

  NOTE: Do not turn the steering wheel.

  Fig 9: Inspecting Steering Fluid Pressure (SST Fully Valve Open)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. With the engine idling and valve fully open, turn the steering wheel to the full lock position.
  Fluid pressure:

  8,300 to 8,800 kPa (85 to 90 kgf/cm ² , 1,209 to 1,280 psi)
  NOTE:
  - Do not keep the steering wheel in the full lock position for more than 10 seconds.
  - Do not let the fluid temperature become too high.
  Fig 10: Inspecting Steering Fluid Pressure (Full Lock Position)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. Disconnect SST.
13. for 2TR-FE:
  1. Connect the pressure feed tube to the vane pump (See INSTALLATION ).
14. for 1GR-FE:
  1. Connect the pressure feed tube to the vane pump (See INSTALLATION ).
15. Bleed the power steering system.
INSPECT STEERING EFFORT
1. Center the steering wheel assembly.
2. Remove the horn button assembly (See INSTALLATION ).
3. Start the engine and let it idle.
4. Measure the steering effort in both directions.
  Steering effort (Reference):

  6.0 N*m (60 kgf*cm, 53 in.*lbf) or less

  HINT:

  Check the tire type, pressure and contact surfaces before making a diagnosis.
5. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
6. Install the horn button assembly (See INSTALLATION ).
Fig 11: Measuring Steering Effort In Both Directions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
