Fuel Pump: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the connector.

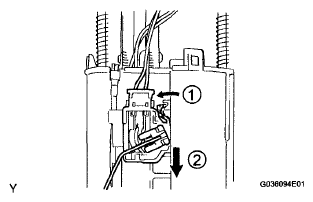

  Fig 1: Locating Fuel Sender Gauge Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

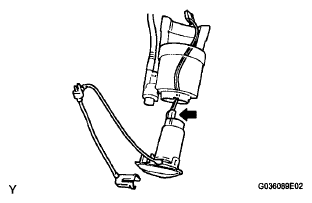

2. Disengage the claw fitting and remove the sender gauge by sliding it in the direction as shown in the illustration.

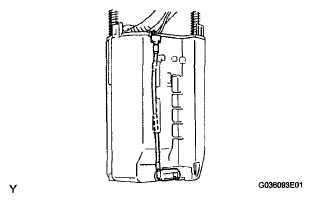

Fig 2: Removing Sender Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 FUEL SUB-TANK
1. Disengage the 5 claw fittings and remove the fuel pump tank.

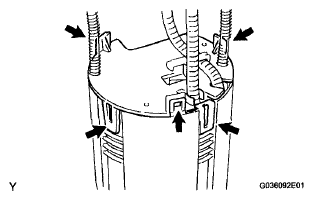

  Fig 3: Locating No. 1 Fuel Sub-Tank Claw Fittings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the connector and disengage the clamp.

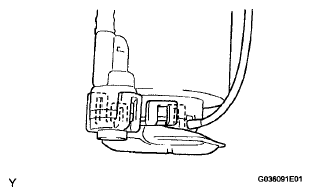

Fig 4: Identifying No. 1 Fuel Sub-Tank Connector And Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP ASSEMBLY
1. Disengage the clamp, then disconnect the connector.

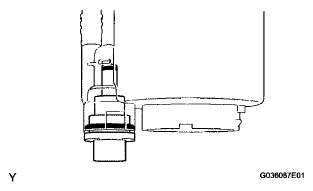

  Fig 5: Locating Fuel Pump Assembly Connector With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 5 claw fittings and separate the fuel pump from the fuel pump case.

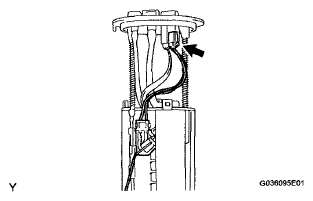

  Fig 6: Identifying Fuel Pump Assembly Claw Fittings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector from the fuel pump.

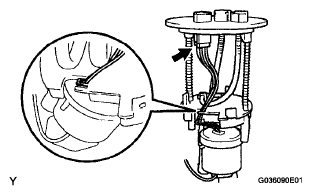

Fig 7: Locating Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP FILTER
1. Remove the fuel filter from the fuel pump.

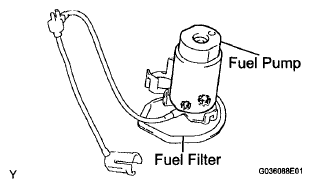

Fig 8: Identifying Fuel Pump And Fuel Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Remove the fuel pressure regulator and the 2 O-rings.
Fig 9: Identifying Fuel Pressure Regulator And O-Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
