Horn System: Installation

INSTALL HIGH PITCHED HORN ASSEMBLY
1. Place the stay onto the baffle part in the upper radiator support, and then install the horn with the bolt.
  Torque: 9.9 N*m (101 kgf*cm, 73 ft.*lbf)
2. Connect the connector.
INSTALL LOW PITCHED HORN ASSEMBLY
1. Place the stay onto the baffle part in the upper radiator support, and then install the horn with the bolt.
  Torque: 9.9 N*m (101 kgf*cm, 73 ft.*lbf)
2. Connect the connector.

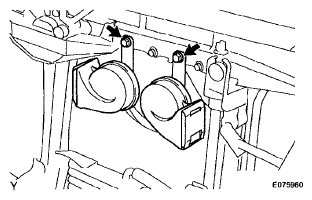

Fig 1: Locating Low Pitched Horn With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
