Combination Meter: Reassembly

  1. INSTALL COMBINATION METER GLASS
    1. Engage the 8 claws and install the combination meter glass.

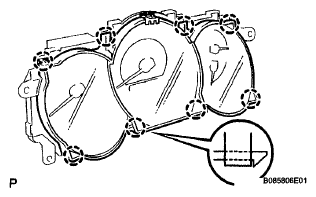

    Fig 1: Installing Combination Meter Glass And Claws
    G06087526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BACK COVER
    1. Engage the 2 claws and install the back cover.
    2. Install the 3 screws.

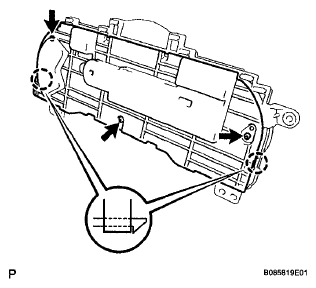

    Fig 2: Locating Back Cover Screws
    G06087527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
