Combination Meter: Disassembly

1. Remove the 3 screws.
2. Using a screwdriver, disengage the 2 claws and remove the back cover.

HINT:

Tape up the screwdriver tip before use.

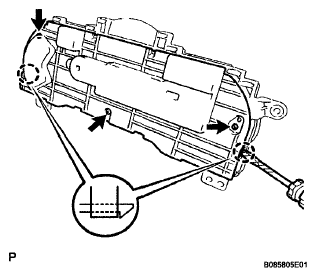

Fig 1: Locating Back Cover Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, disengage the 8 claws and remove the combination meter glass.

HINT:

Tape up the screwdriver tip before use.

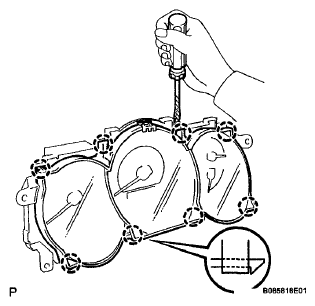

Fig 2: Removing Combination Meter Glass And Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
