Charging System (1GR-FE): Generator: Inspection

INSPECT GENERATOR BRUSH HOLDER ASSEMBLY
1. Using vernier calipers, measure the exposed brush length.
  Standard exposed brush length:

  10.5 mm (0.413 in.)

  Minimum exposed brush length:

  4.5 mm (0.177 in.)

  If the exposed brush length is less than the minimum, replace the brush holder.

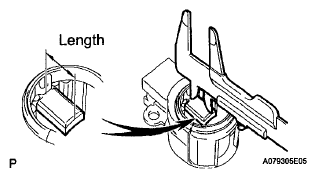

Fig 1: Measuring Exposed Brush Length
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT GENERATOR ROTOR ASSEMBLY
1. Check the rotor for an open circuit.
  1. Using an ohmmeter, measure the resistance between the slip rings.
    Standard:

    2.3 to 2.7 Ω at 20°C (68°F)

    If the result is not as specified, replace the rotor.

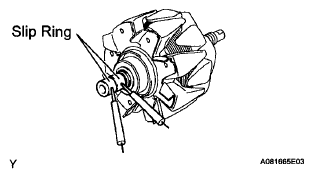

  Fig 2: Measuring Resistance Between Slip Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the rotor for ground.
  1. Using an ohmmeter, measure the resistance between the slip ring and rotor.
    Standard:

    10 kΩ or higher

    If the result is not as specified, replace the rotor.
3. Inspect the slip rings.
  1. Check that the slip rings are not rough or scored. If rough or scored, replace the rotor.

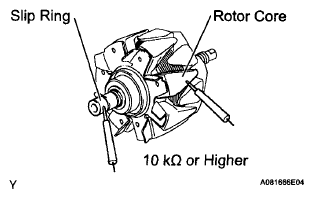

    Fig 3: Measuring Resistance Between Slip Ring And Rotor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using vernier calipers, measure the slip ring diameter.
    Standard diameter:

    14.2 to 14.4 mm (0.559 to 0.567 in.)

    Minimum diameter:

    14.0 mm (0.551 in.)

    If the diameter is less than the minimum, replace the rotor.

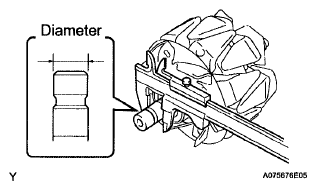

Fig 4: Measuring Slip Ring Diameter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT GENERATOR ROTOR BEARING
1. Check the bearing whether it is rough or worn. If necessary, replace the generator rotor.
Fig 5: Inspecting Generator Rotor Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
