Charging System (1GR-FE): Generator: Components

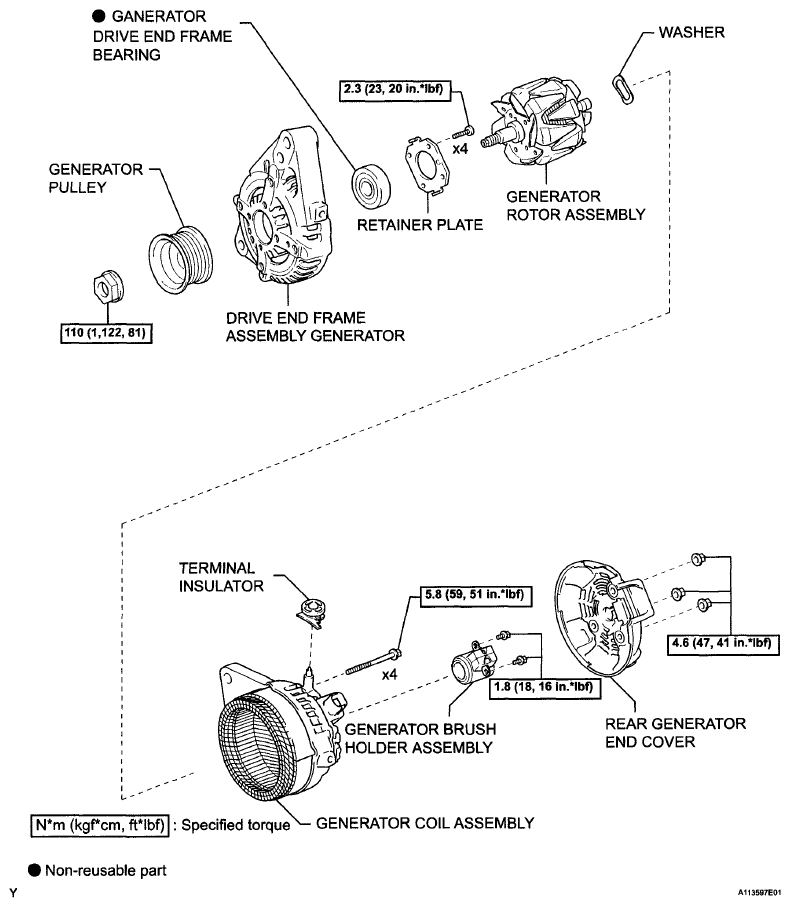

Fig 1: Identifying Generator Components

G06086088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
