Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

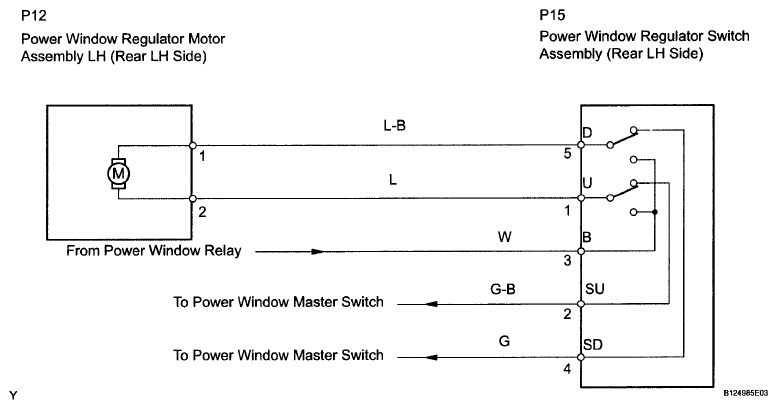

Fig 1: Rear Power Window LH Does Not Operate With Rear Power Window Switch LH - Wiring Diagram
G06087599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
